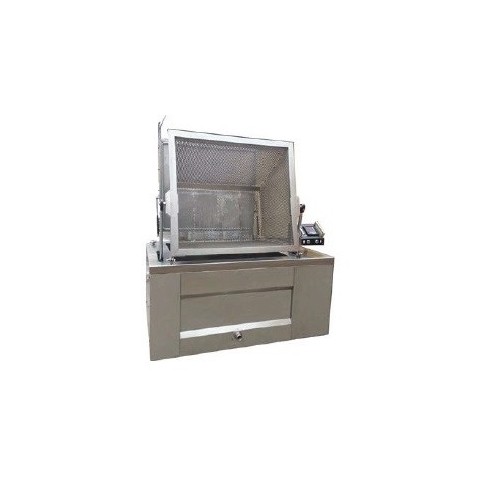

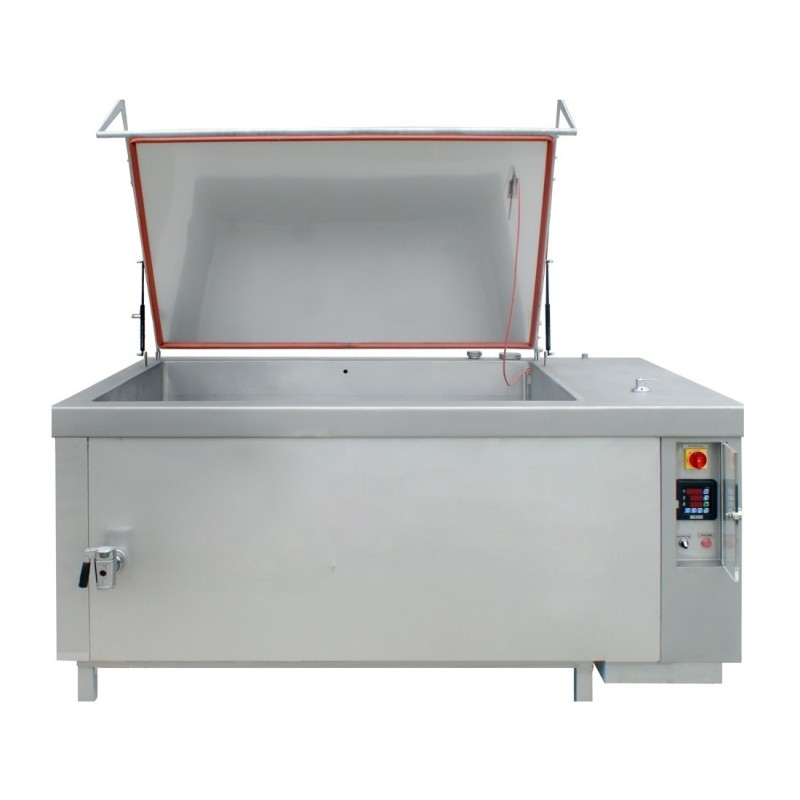

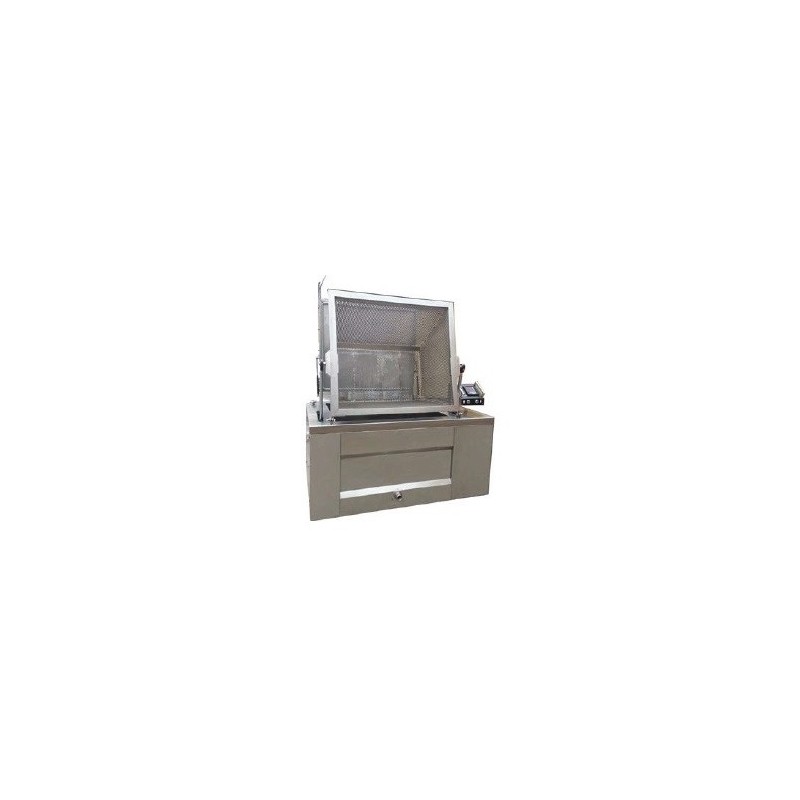

Bath Blancher, Pasteurizer
The universal bath pasteurizer is used for processing a wide range of different food products, such as ready meals, sausages, hams or liquid products. Effective temperature regulation and a hygienic stainless steel design.
More information: sales@foodtechprocess.com
This bath pasteurizer is made in four versions with different types of power supply: oil, gas, electricity, and steam.
This machine was designed to operate in automatic mode by utilizing the controller to manage the technological process. You can pasteurize a large variety of food and liquids.
THE BENEFITS OF A PROFESSIONAL BATH PASTEURIZER:
These bath pasteurizers are powered with oil, gas, or electricity and have a double heat jacket. In the case of the machine with an electric supply, the heaters are filled with heating oil for shell heat transfer.
The use of a double heating jacket has two advantages:
- The first advantage is that the product doesn’t burn.
- The second advantage is that the oil is cooling down more slowly so that in everyday work it starts from a higher temperature than the ambient temperature, thanks to which it heats up more quickly.

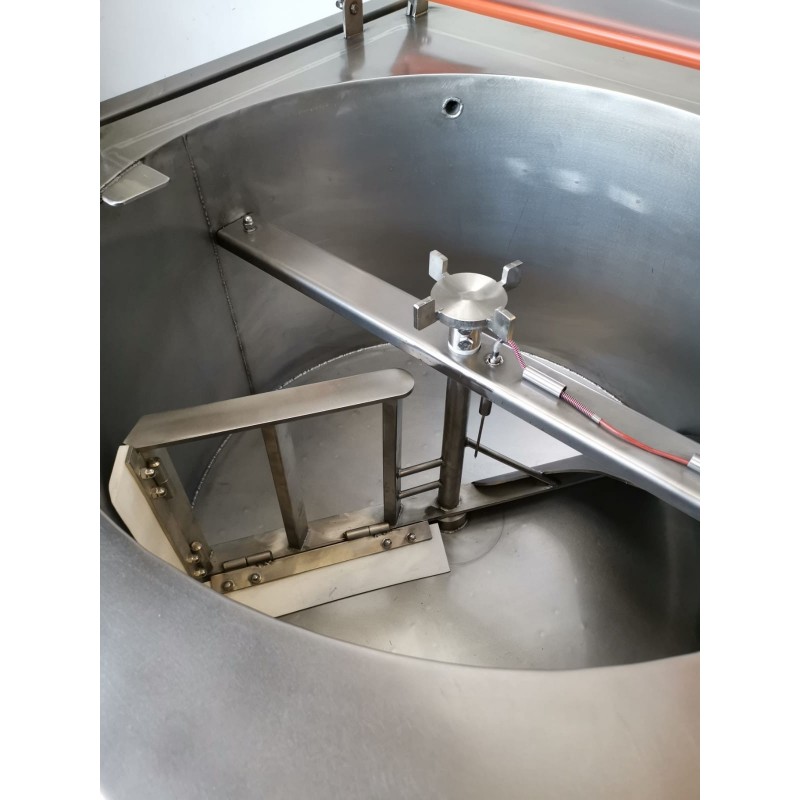

When melting lard in heat boilers, a rotary arm is used to mix the product during the process. External dimensions can be changed according to the customer’s needs. Double heated jacket filled with heating oil Shell Heat Transfer Oil S2. 3 x temperature measurement: oil, water, batch construction, a basket made entirely of stainless steel.
BATH PASTEURIZER 300L
- supply medium: electricity, steam, oil, gas
- installed power (kW): 15
- power supply (V/Hz): 3x400/50
- external dimensions [LxWxH mm] 600x1300x1100
- controller: Mikster INDU 50
- water connection: 1/2 inch
- External dimensions can be changed for the customer's needs
BATH PASTEURIZER 400L
- supply medium: electricity
- installed power (kW): 25
- power supply (V/Hz): 3x400/50
- dimensions [mm] 1300x1250x1050
- controller: Mikster INDU 50
- water connection: 1/2 inch
- Double heat jacket filled with heating oil Shell Heat Transfer Oil S2
- water connection: 3/4''
BATH PASTEURIZER 500L
- supply medium: electricity
- installed power (kW): 30 kW
- power supply (V/Hz): 3x400/50
- dimensions [mm] 1450x1250x1050
- controller: Mikster INDU 50 (among others function of the timer, that allows set time of
- beginning of cooking)
- water connection: 3/4''
- Double heat jacket filled with heating oil Shell Heat Transfer Oil S2
- 3 x temperature measurement: oil, water, batch
- construction, a basket made entirely of stainless steel
BATH PASTEURIZER 600L
- external dimensions – 1600x1250x1050mm
- microcontroller: Mikster INDU 50
- measurement of three temperatures (oil, water, batch)
- max temperature of oil: 140 C
- Double heat jacket filled with heating oil Shell Heat Transfer Oil S2
- heat jacket capacity: 200 L
- water connection: 3/4''
- water drain: 2''
PROFESSIONAL BATH PASTEURIZER 600L
- external dimensions - 1900x1250x1050mm
- heating medium – electricity
- heating power- 50 kW
- microcontroller: Mikster INDU 50
- measurement of three temperatures (oil, water, batch)
- max temperature of oil: 140 C
- Double heat jacket filled with heating oil Shell Heat Transfer Oil S2
- water connection: 3/4''
- heat jacket capacity: 250 L
Dimensions:
|
BOWL DIMENSIONS |
EXTERNAL DIMENSIONS |
|||||
|
CAPACITY |
LENGTH [MM] |
WIDTH [MM] |
DEPTH [MM] |
LENGTH [MM] |
WIDTH [MM] |
HEIGHT [MM] |
|
200L |
600 |
600 |
600 |
1200 |
850 |
1080 |
|
300L |
300 |
800 |
700 |
600 |
1300 |
1100 |
|
400L |
400 |
1000 |
700 |
600 |
1500 |
1100 |
|
500L |
500 |
1000 |
850 |
600 |
1500 |
1250 |
|
600L |
600 |
1000 |
1000 |
600 |
1500 |
1400 |
|
800L |
800 |
1400 |
1000 |
600 |
1900 |
1400 |
