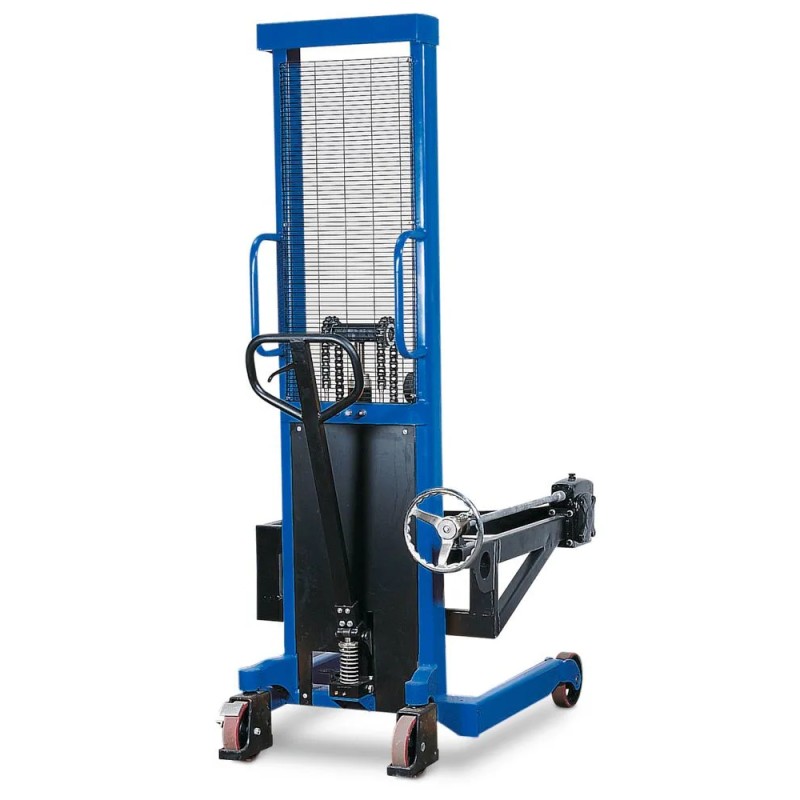

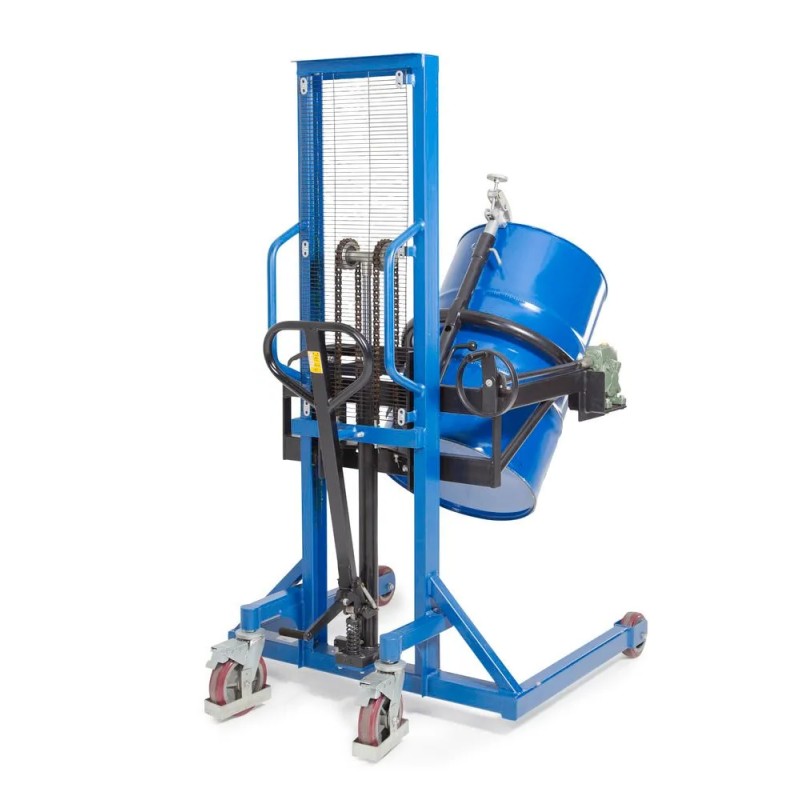

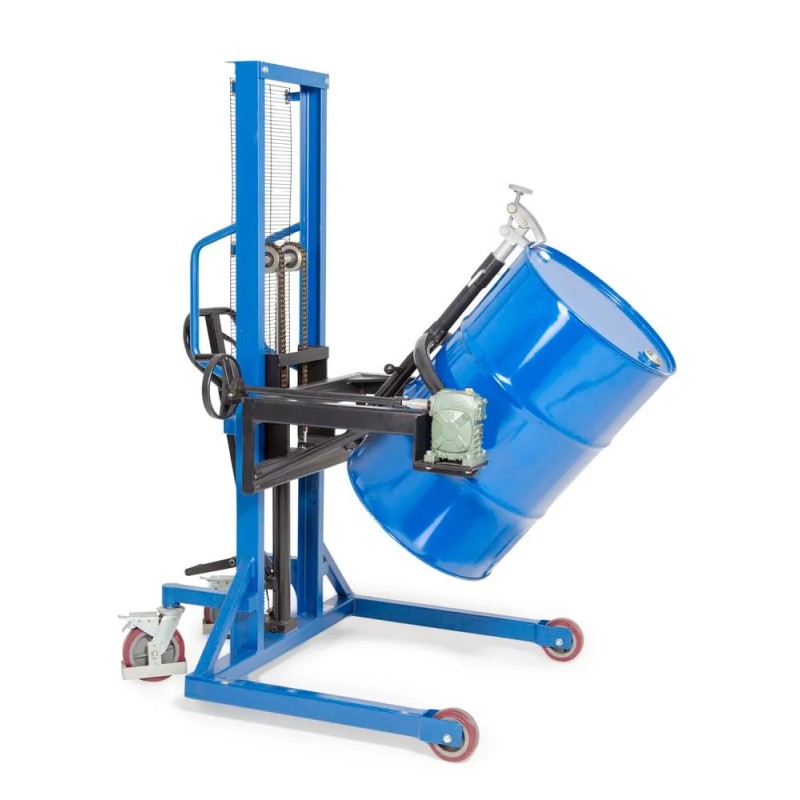

Barrel lifter (volume - 200 liters)
Device for tipping barrels with products
- A locking hook under the barrel protects and holds the steel barrel
- Safety drawbar with a single-hand operation and 3 functions (lifting/lowering/moving)
- Foot pedal ensures precise lifting
- Optimum operator protection thanks to the extended handle and protective grid
Barrel tipper advantages:
- Safety handle with one-hand operation and a 3-fold function (lifting/lowering/moving)
- Foot pedal ensures precise lifting
- Optimum operator protection thanks to the extended handle and protective grid
- Easy to move thanks to 2 fixed and 2 swivel wheels (with a brake and foot protection)
- With a durable powder coating in blue (RAL 5010)
- Rotation range: 180°
- For 200 l steel barrels
- Wide chassis allows loading of Euro pallets from the narrow side
TECHNICAL INFORMATION:
- Application - Lifting/transporting steel drums
- Drive - manual
- External width, mm - 1120
- External depth, mm - 1335
- External height, mm - 1960
- Wheel diameter, mm - 200
- Roller diameter, mm - 150
- Clear chassis width, mm - 930
- Total load capacity, kg - 350
- Suitable for lifting/transporting steel barrels
- Lifting height max., mm - 1305
- Lifting height per pedal stroke, mm - 28
- Material - steel
- Material: Steel
- Operation mode: Manual
- Type of the equipment: Individual machine
