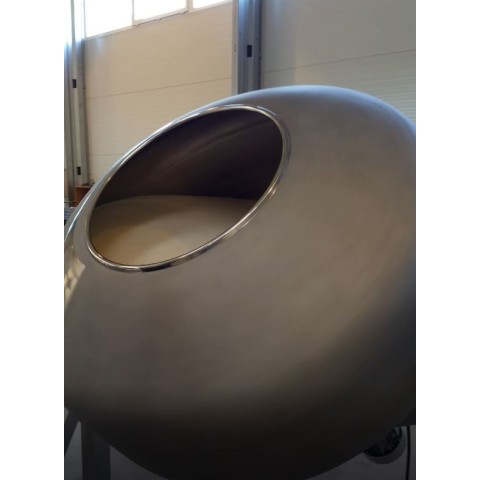

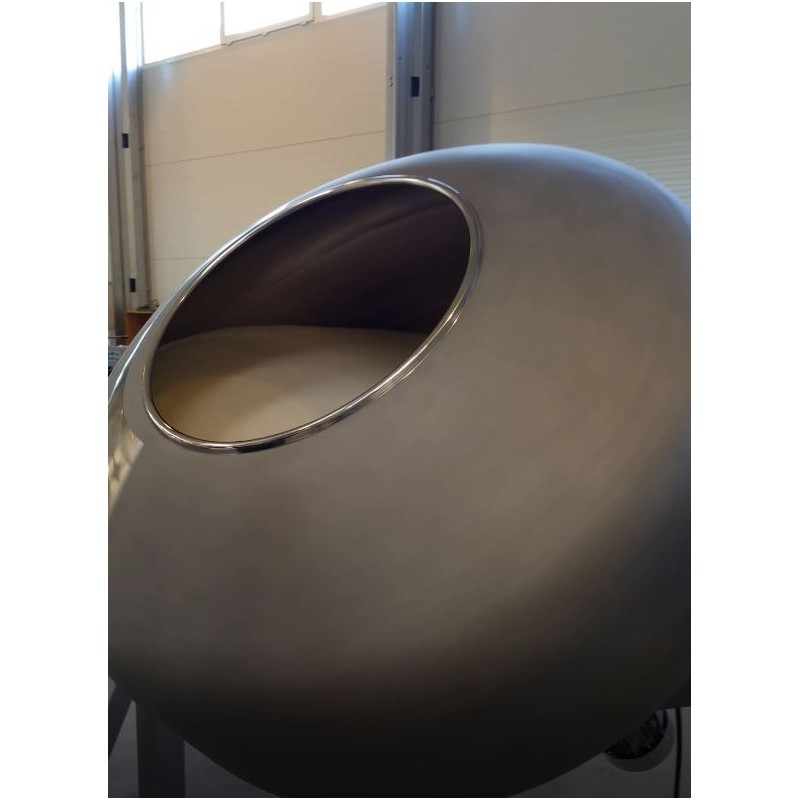

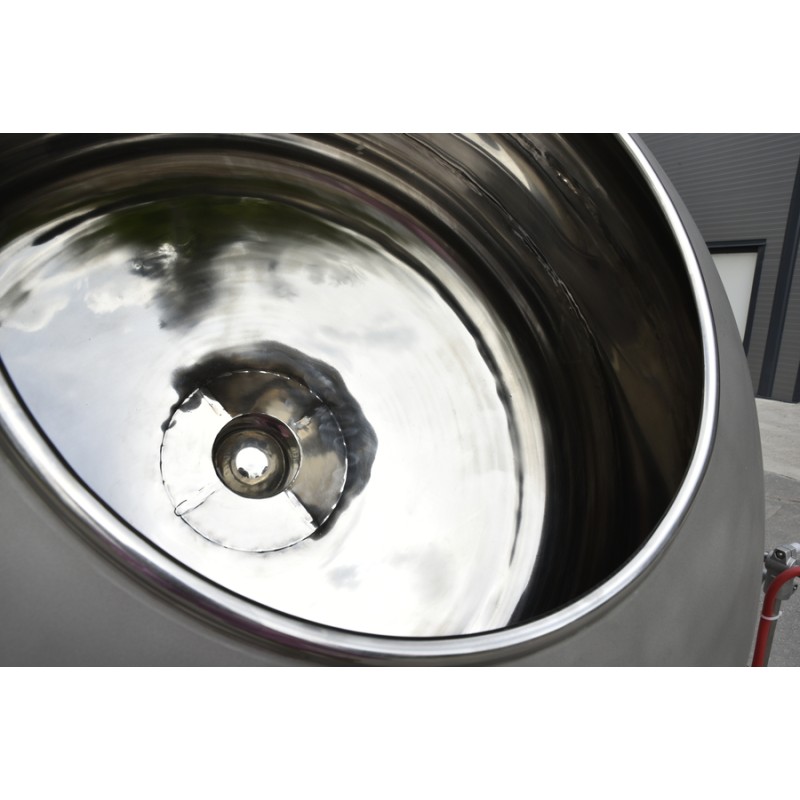

Coating mixer EX 500 GMP
The coating machine is designed for uniform application, impregnation of oil and fat mixture, dyes and flavors, enzymes, vitamins and other additives, various products with a high level of hygiene.
The drum-type mixing machine qualitatively granulates and rolls with continuous mixing of seeds, nuts, dried fruits and vegetables, confectionery and other similar products with the exception of sticking.
Also suitable for the production of yogurt or chocolate coated nuts or raisins.
Areas of use:
- Food industry
- Chemical industry
- Agricultural industry
- Also used in the pharmaceutical industry
The capsule coating equipment is designed also for the needs of the pharmaceutical industry to create shells for tablets, granules and capsules.
Processes:
- Impregnation
- Mixing
- Coating
- Massaging
- Granulation
Advantages:
- Equipped with a device for easy unloading of the product;
- The introduction of the coating during the transfer for uniform application;
- Material - high quality stainless steel AISI 304/316.
- Material: Stainless steel
- Engine power, kW: 2,2
- Principle of operation: Batch mode
- Country of origin: Slovakia
- Weight: 281 kg
- Volume: 500l
Coating mixer
