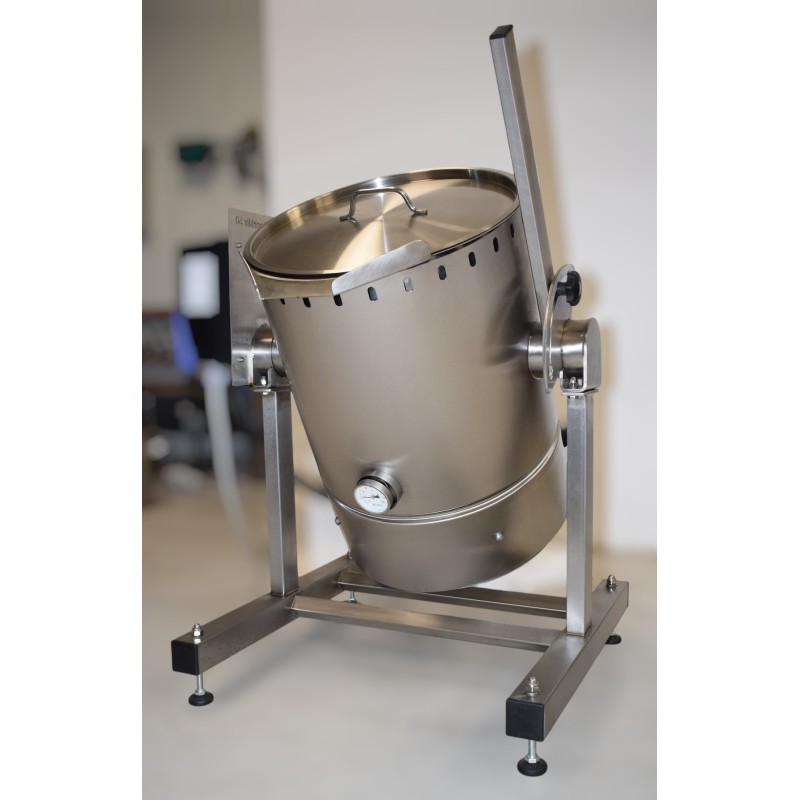

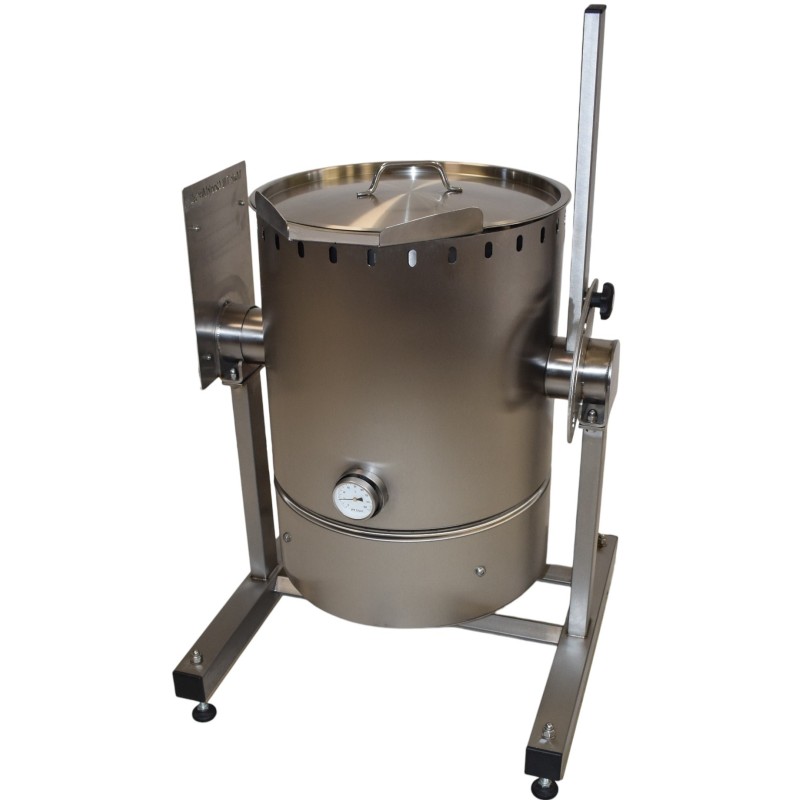

Electric fat melter 50 l
Electric fat melter (butter melter) – is a batch-type machine used for melting solid, frozen blocks of fat, animal fats and vegetable oils, frozen juices, chocolate and glaze, as well as maintaining them in a molten state in the container. It is possible to use it for melting refractory fats due to the high heating temperature of up to 250 degrees!
- Built-in powerful 6.5 kW electric heating
- Multi-stage switch with 7 heating intensity levels
- Professional, stainless steel thermometer for measuring the temperature in the product
- Compact support structure on height-adjustable legs / optional wheel support

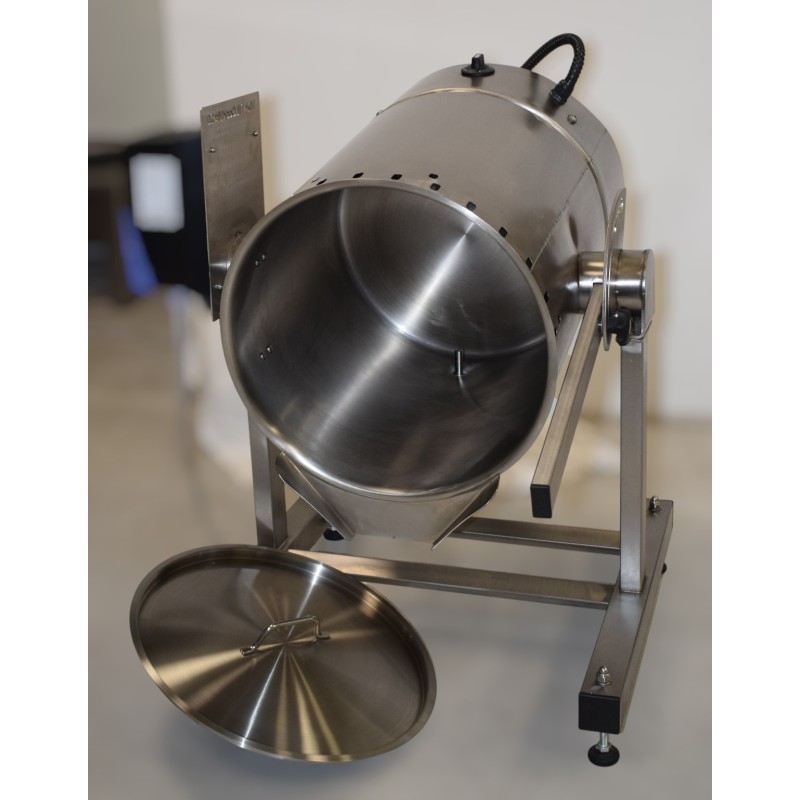

- Three tilt positions of the working container for convenient unloading of the product
The unit for melting solid fat blocks is widely used in the confectionery industry, both in small-scale and large-scale production. Suitable for melting refractory fats.
The electric fat melter with a tilt system for the working container is suitable for products such as:
|
|
|
|
|
|
|
|
Advantages
- High heating temperature - up to 250°C
- Compact unit on a stainless steel supporting structure
- Built-in powerful electric heating with a power of 6500 W
- Three-stage tilt mechanism for the working container with the ability to fix the unit in different locking positions
- Visual temperature monitoring via a thermometer with a probe located right near the bottom of the container
- A large number of additional options available
Basic version
It comprises an atmospheric working container with integrated electric bottom heating, installed on a free-standing stainless steel supporting structure, equipped with a thermometer, a tilt system for the working container, an upper lid and a 7-stage heating intensity regulator.
Options
- Height-adjustable legs
- Wheel support for easy transportation of the unit
- Stirring device
- Outlet valve
- Frequency converter in the form of an independent control panel with IP66 protection (when choosing the option in the form of a stirring device)
Modifications
The unit is produced in various modifications
- cooking boiler with built-in heating
- cooking boiler with built-in heating and a stirring device
- mixer with a tilting and unloading system
- sugaring paste production unit
- cream production unit (cream cooker)
- Principle of operation: Batch mode
- Volume: 50l/ 100l
- Total power, kW: 6,5
- Voltage: 380-400V
