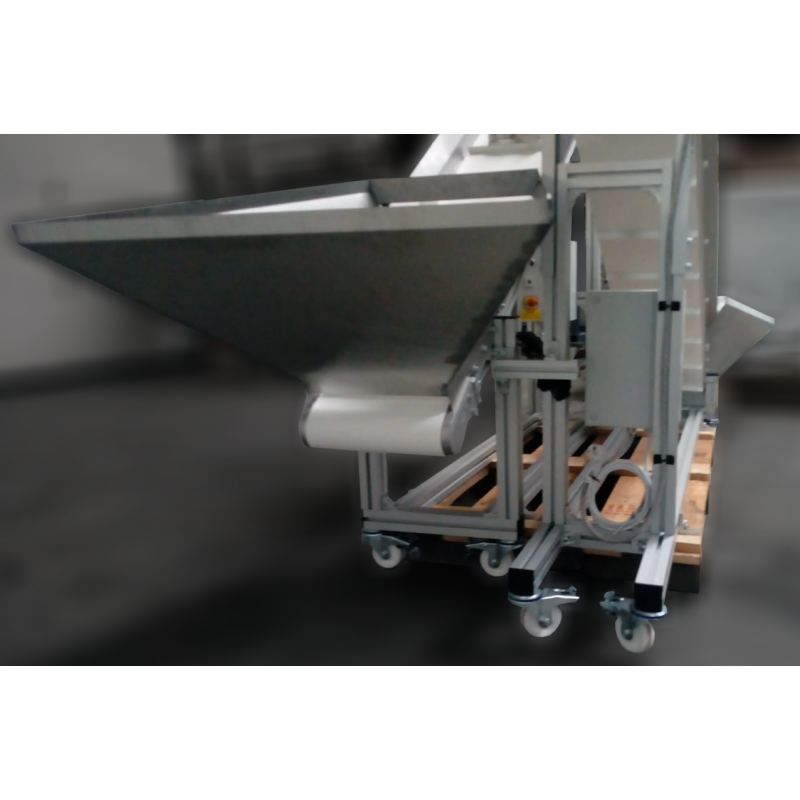

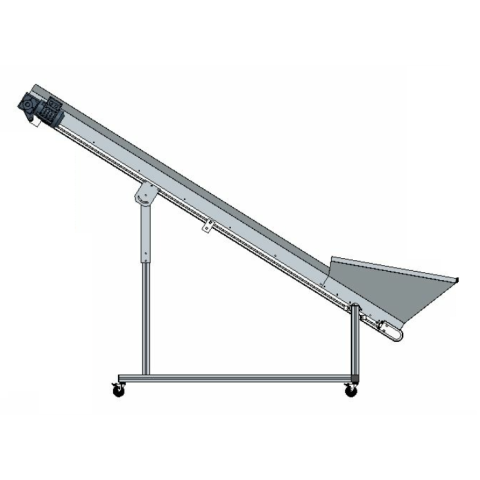

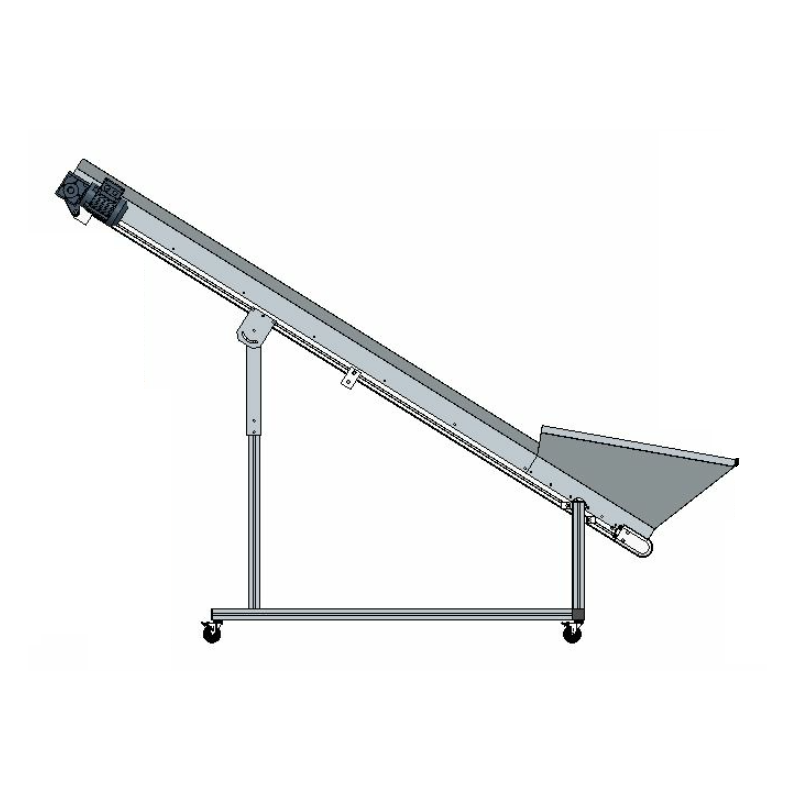

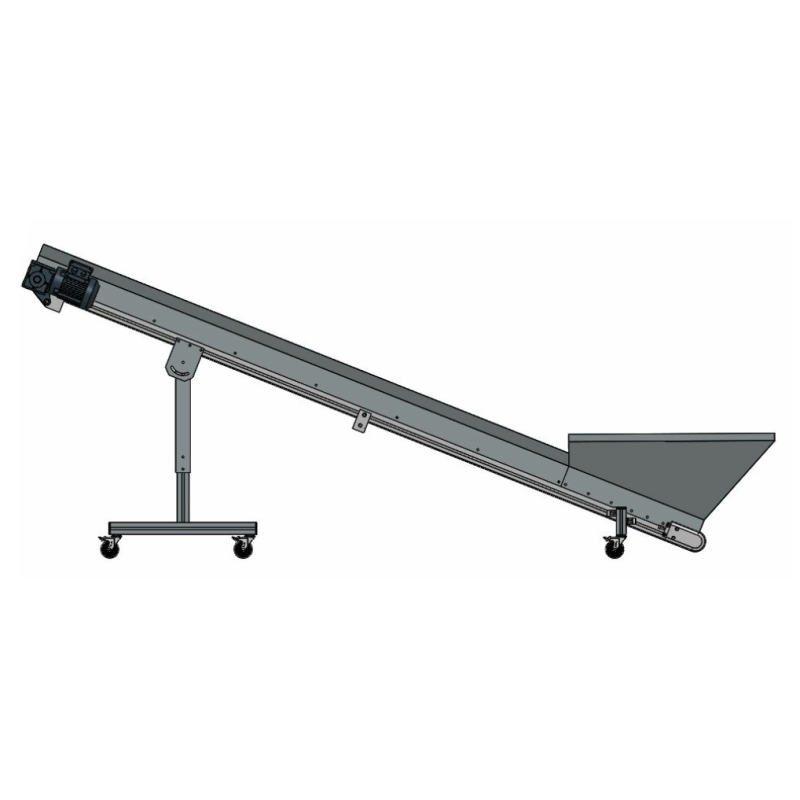

Adjustable conveyor with a hopper ACWH 3000/300
Adjustable conveyors made out of stainless steel construction with a large 100 L loading hopper suitable for the food industry.
The conveyor belt (POLIFLEX ESM 8/200 + 03 (PU) is suitable for use in the food industry.
The construction together with the hopper are made of stainless steel, which ensures a long product life. The conveyor is equipped with a SEW motor with an output of 0.25 kW - 26 N m)
Technical parameters of the conveyor
- Engine power 0.25 kW - 26 Nm)
- Length = 3000mm,
- Width = 300mm
- Load, kg: approx. 10
- Belt speed 18m / min
- Angle approx. 25 °
- Hopper volume, L: 100
- Material: Stainless steel
- Engine power, kW: 0,25
- Working Area Width: 300 mm
