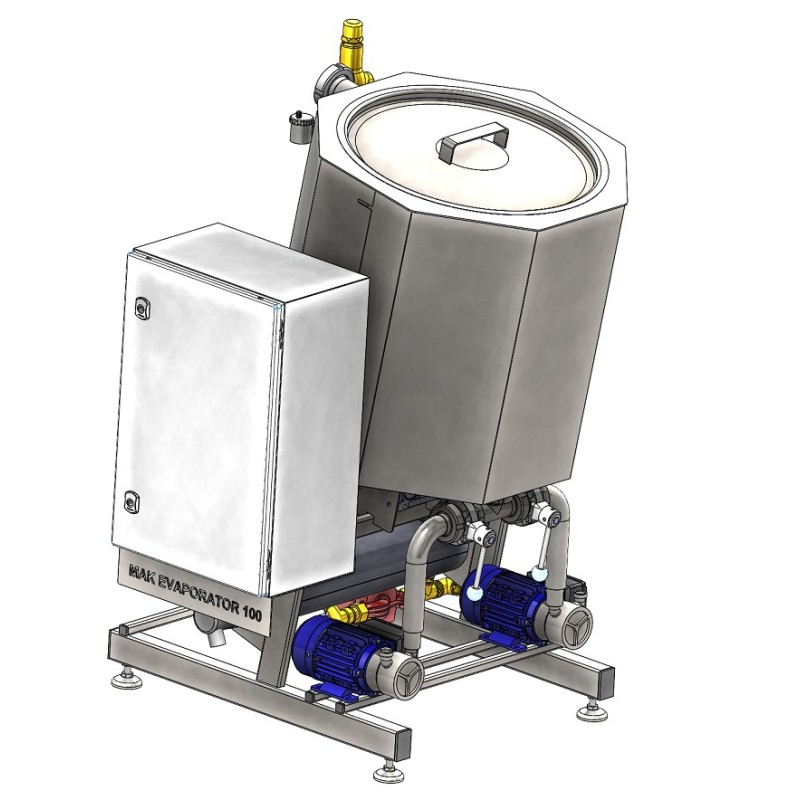

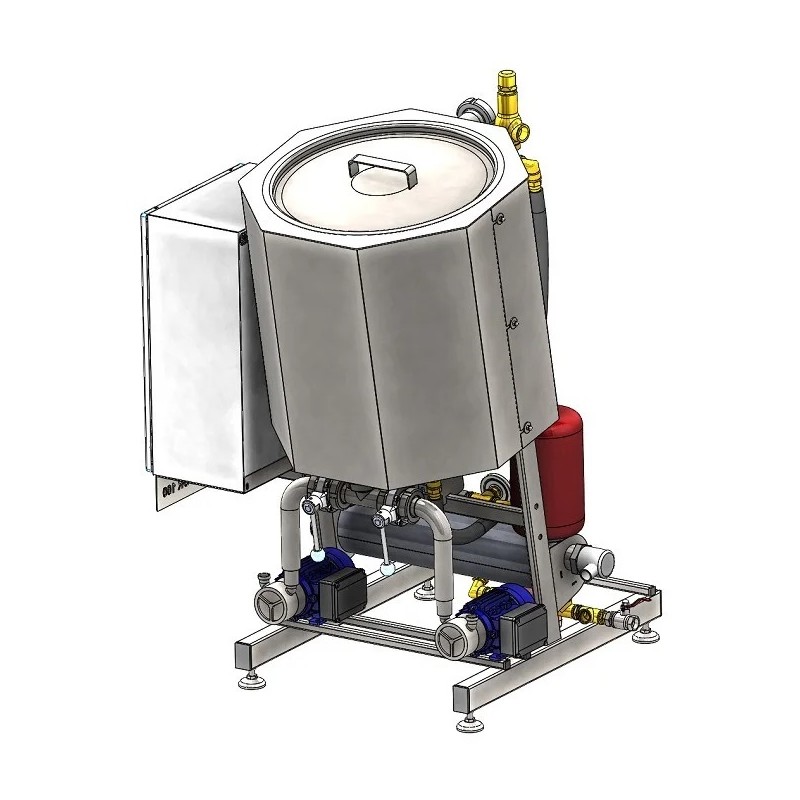

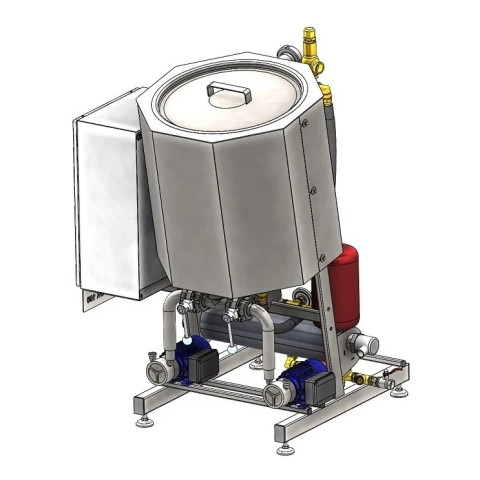

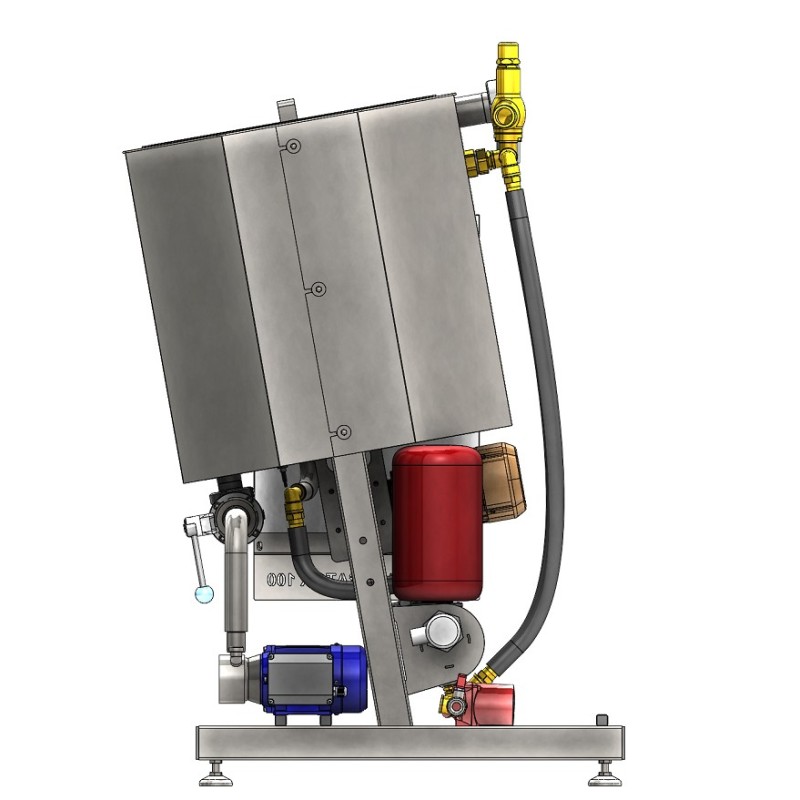

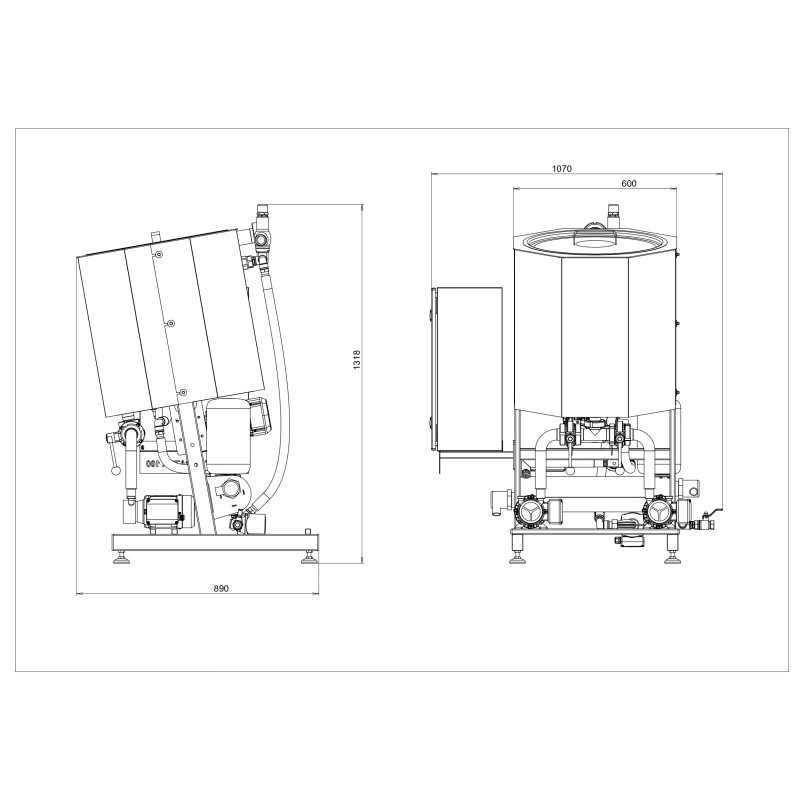

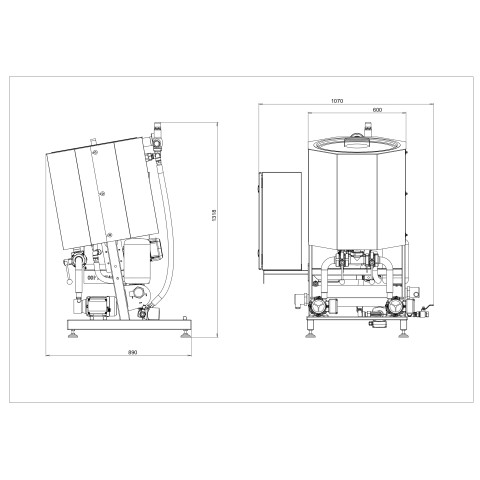

Universal processing tank 100–900 L

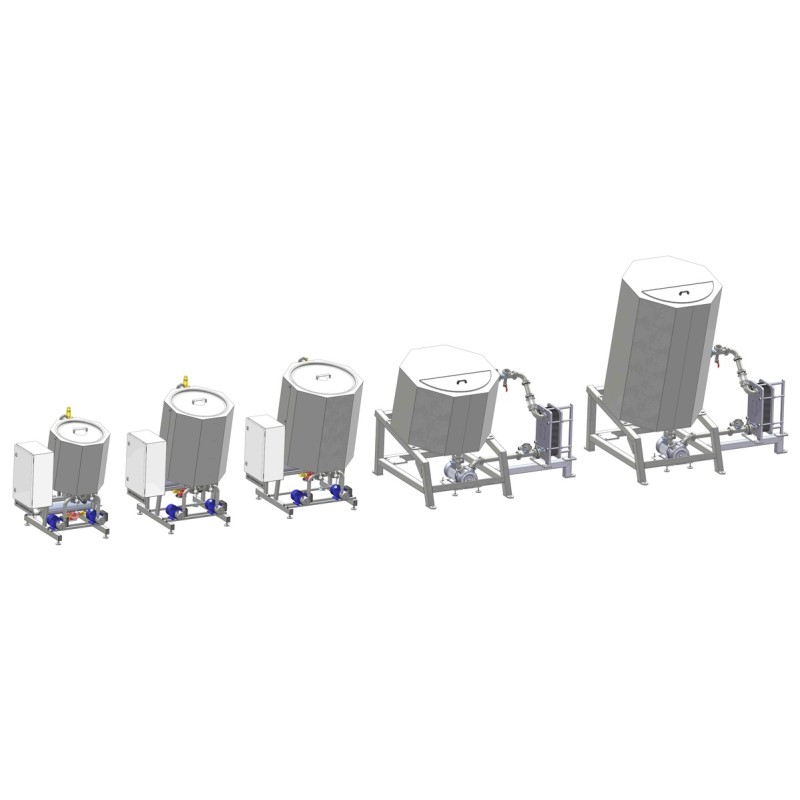

Universal processing units for the production of food products. A diverse range of volume options available ranging from 100 to 900 liters, allowing you to select a model for production at any scale. Suitable for a wide range of applications.
Universal processing tanks are designed for mixing, heating or cooling (based on the thermal transfer medium supplied into the duplicator - hot or cold water) and storing various food products. These tanks operating at atmospheric pressure, are made out of high-quality food-grade stainless steel, which ensures durability, corrosion resistance and compliance with hygienic standards.
Main characteristics:
- Versatility of use - suitable for processing dairy products, juices, sauces, beer, wine and other products.
- Operation at atmospheric pressure - the units are safe and easy to use without the need for high-pressure systems.
- Temperature control options - can be equipped with a heating / cooling jacket for accurate heat treatment.
- Additional equipment for the mixing system - additional mechanical stirrers or mixers for uniform mixing.
- Hygienic design - smooth interior surfaces, sanitary fittings and easy-to-clean construction to meet food safety standards.
- Wide range of optional accessories - lids, hatches, thermometers, level indicators and CIP (Clean-in-Place) systems.
Benefits:
- Efficient processing optimized for small and medium-scale batch production.
- Robust and durable - the tanks are resistant to acids, alkalis and high temperatures.
- Space-saving in production facilities - compact and high-performance tanks.
The processing tanks are ideal for dairies, breweries, wineries and food manufacturers, they can be combined with heating or cooling systems and used for reliable and hygienic processing of various liquids and semi-liquid food products.
Images contain models with maximum configuration and are provided for informational purposes. Actual units may differ from those displayed, based on customer requirements.
- Material: Stainless steel
- Principle of operation: Batch mode
- Type of the equipment: Individual machine
- Country of origin: Slovakia
The periodic drum coating/seasoning machine is designed to saturate and infuse a diverse range of products with flavorful aromas, vitamins, and various taste additives. It is utilized in the production of snacks, chips, cereals, and nuts, offering a wide array of flavor enhancements.
- Mechanical system for tilting the working bowl with fixation points in intermediate positions
- Special perforated blades for gentle product turning
- Powerful drum rotation drive
- Entirely made out of food grade stainless steel AISI304
- Easy control via an inverter (optional): speed control and reverse
- Material: Stainless steel
- Principle of operation: Batch mode
- Country of origin: Slovakia
- Volume: 100l
- Total power, kW: 0,55
Suitable for mixing a small amount of dough or meat as well as other thick mixtures.
- Material: Stainless steel
- Engine power, kW: 0,55
- Principle of operation: Batch mode
- Volume: 10l/ 20l
A vacuum diffuser is a device used in the food industry to remove oxygen from a product under vacuum conditions, primarily employed for enhancing the preservation of food by reducing oxidation and extending shelf life.
- Material: Stainless steel
- Principle of operation: Batch mode
- Type of the equipment: Individual machine
- Country of origin: Slovakia
- Volume: 200l/ 1000l
- Voltage: 380-400V
- Max vacuum: -0,8 Bar
A vacuum cooker is used in the food processing industry to cook ingredients under reduced pressure, typically in a vacuum environment. This method allows for precise temperature control and faster cooking times while preserving the quality and flavor of the ingredients.
We offer different vacuum cookers.
- Material: Stainless steel
- Principle of operation: Batch mode
- Country of origin: Slovakia
- Volume: 2500 l
A detachable lid with an automatic food stirrer for stainless steel 40 cm pots, suitable for volumes of 50 and 100 liters. An automatic stirrer allows you to mix and stir various products, including during thermal processing. The type of mixing device can be additionally selected depending on the required process.
- Professional industrial single-phase motor for 220-230 Volts
- The control is located directly on the motor housing or on the drive cable
- Easy and simple installation and fixation of the lid on the pan
- Suitable for standard 40 cm pots with a capacity of 50 or 100 liters
- The lid and stirrer are made entirely out of stainless steel
- Material: Stainless steel
- Engine power, kW: 0,18/ 0,25
- Principle of operation: Batch mode
- Voltage: 220-230V
Industrial churning machine available in two capacities. Simple production of butter.
- Geometric volume: 30 l/ 70 l
The mixers are made up of a double-walled cylindrical stainless steel vessel with cavity, with drain hole and 50 cm diameter butterfly valve. The cavity is filled with water which is heated by an electric resistance thermostat. The honey is mixed by blades with a marine propeller profile, adjustable in height along an oblique shaft.
- Material: Stainless steel
- Engine power, kW: 0,37/ 0,55/ 1,1
- Principle of operation: Batch mode
- Volume: 100 kg / 250 kg/ 600 kg/ 1000 kg/ 2000 kg
The vacuum cooking and mixing tank is used to boil products at low temperatures, which helps preserve the natural color, taste and nutrients in the product.
Vacuum equipment is used for cooking premium-quality jams, sauces, fruit and vegetable concentrates.
- Inclined design
- Efficient emptying
- High hygiene standards
- Material: Stainless steel
- Principle of operation: Batch mode
- Type of the equipment: Individual machine
- Country of origin: Slovakia
These meat mixers are characterized by their modern design and strong AISI 304 stainless steel construction.
- Material: Stainless steel
- Principle of operation: Batch mode
- Volume: 50l/ 110 l/ 163 l/ 250l/
A universal vessel for mixing, whipping and stirring any products using a blade mixing device operating at high speeds.
- Crescent shaped mixing device with three sharpened blades (cutter knives)
- Special high speed drive
- Sandwich bottom for all types of heating surfaces (electricity, gas, induction).
The mixing speed of the TurboMix mixer is approximately 138 RPM at 50 Hz. If required, the mixing speed can be adjusted using an optional frequency converter.
- Productivity: 50l/ 100l
- Material: Stainless steel
- Engine power, kW: 0,55
- Principle of operation: Batch mode
- Country of origin: Slovakia
- Diameter, mm: 400/ 500/ 600
The vacuum homogenizer is designed for whipping mayonnaise, ketchup, various sauces, confectionery pastes and fillings, condensed milk, jams and marmalades, canned goods, as well as similar liquid or pasty products with a homogeneous structure.
- Homogenizer in an external circulation loop
- Built-in vacuum generation and retention system
- Modular design with numerous options
- Possibility of automatic dosing of ingredients (optional)
- No additional pump required for loading/unloading
- Automatic top cover lifting system
- Material: Stainless steel
- Principle of operation: Batch mode
- Country of origin: Slovakia
- Volume: 650l
- Total power, kW: 13,5
- Voltage: 380-400V
- Max vacuum: -0,8 Bar
A twin-screw mixer with a homogenizer is an ideal solution for the production of creamy cheese, such as feta cheese, including with various flavors and seasonings. Thanks to mechanical homogenization, the cheese acquires a delicate structure without changing the individual taste properties of the product. It is used for plasticizing, creaming and softening butter, margarine and other fats.
- Capacity of the receiving hopper 50L
- Compact tabletop design for convenient operator maintenance
- A powerful independent drive for each screw with a reverser
- Easy maintenance and cleaning of the equipment
- Productivity: 250 kg/h/ 1500 kg/h
- Material: Stainless steel
- Principle of operation: Continuous mode
- Country of origin: Slovakia
- Total power, kW: 3,5
- Voltage: 380-400V
The continuous rotary mixer is a professional solution for mixing, stirring powder and bulk materials.
- Allows precise dosing of components during continuous mixing
- Low energy consumption with high processing volumes
- Made entirely out of stainless steel
- Adjustable working drum tilt
- Special blades for mixing bulk and fragile materials
- Material: Stainless steel
- Principle of operation: Continuous mode
- Country of origin: Slovakia
We offer different types of dryers for different products.
- Material: Stainless steel
- Engine power, kW: 2,2
- Type of the equipment: Individual machine
- Country of origin: Slovakia
The 60W / 250W Mixing lid transforms a standard 50-liter pot into a fully functional mixing unit. It is ideal for production processes involving low-viscosity products, requiring automatic, continuous, and uniform heat distribution via a mixing device, as well as creating and maintaining a homogeneous mixtures without intensive mechanical action.
- Efficient 60W or 250W drive for liquid and semi-liquid products
- Asymmetrical anchor-type stirrer for uniform internal product circulation
- Basic version includes a safety grill on the mixer lid
- Easy-to-remove, sectional-opening lid with a handle
- Simple and secure attachment of the lid with a stirrer to any pot with handles
- Materials in contact with the product are made entirely out of food-grade stainless steel
- Visual, safe process control thanks to the safety grill
- Ideal for equipping 400mm vessels with an automatic stirring system.
- Material: Stainless steel
- Engine power, kW: 0,06/ 0,25
- Country of origin: Slovakia
- Diameter, mm: 400
The twinscrew mixer with two horizontal shafts is designed for intensive mixing and kneading dough as well as chocolate, pralines and other similar products with medium or high viscosity.
- Material: Stainless steel
- Engine power, kW: 2,2
- Country of origin: Slovakia
- Weight: 281 kg
- Volume: 500l
