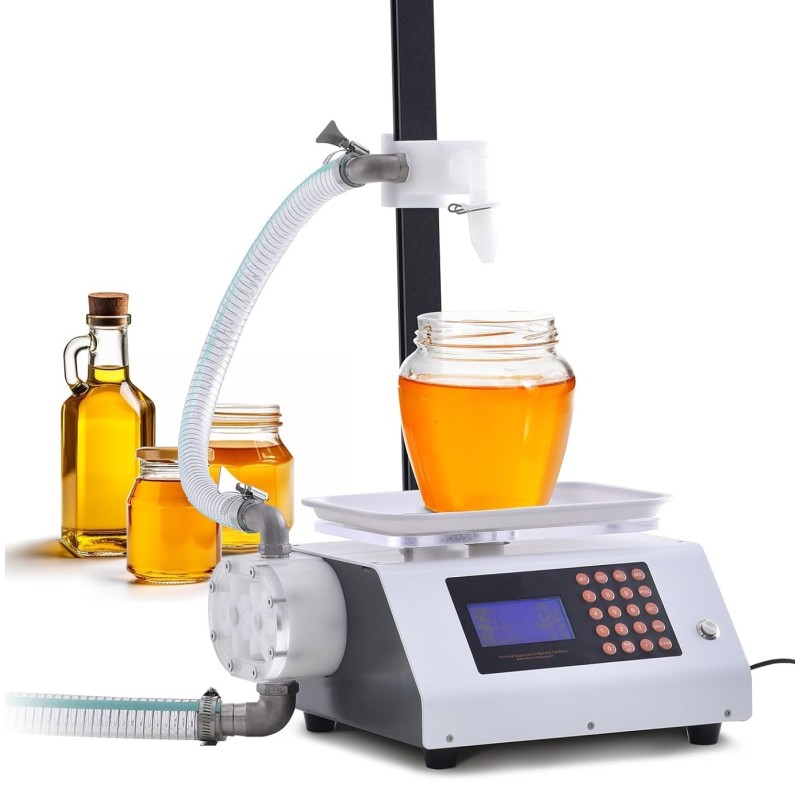

Filling machine with a gear pump 50-5000G

This digital filling machine is designed for precise and efficient portioning of viscous and semi-liquid products.

It uses a powerful gear pump system that can handle a wide range of substances — from honey and syrups to oils, pastes and sauces. The digital interface allows the operator to quickly set the desired filling volume, ensuring repeatable results with minimal waste.

The unit is built from food-safe materials, making it suitable for professional small scale food production as well as laboratory or workshop use. Thanks to its anti-drip nozzle and smooth housing, it provides a clean working environment and reduces the risk of product loss. Its compact design and adjustable stand allow it to adapt to different container sizes, making it versatile for various applications.

Cleaning and maintenance are simple: hoses and nozzles are easily accessible and can be disassembled in minutes. The robust steel housing is resistant to corrosion and easy to wipe down, ensuring a long service life even with frequent use.

Key Features

This machine combines strong performance with ease of use. The high-flow gear pump provides enough power to process thicker liquids while maintaining accuracy, and the digital controls ensure precise filling without complex setup. Together with its food-grade construction, the machine delivers both safety and reliability.

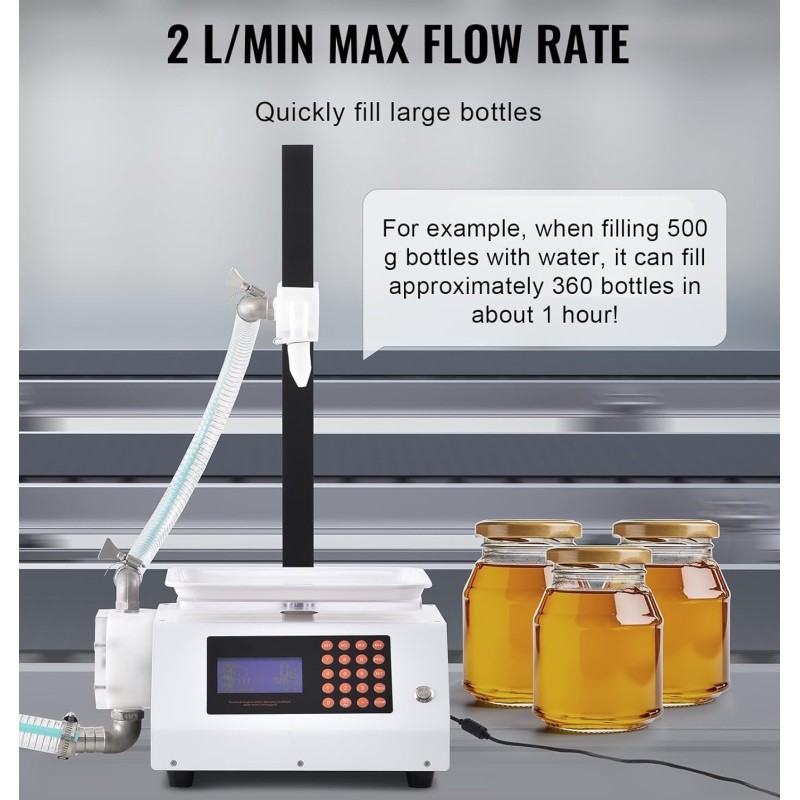

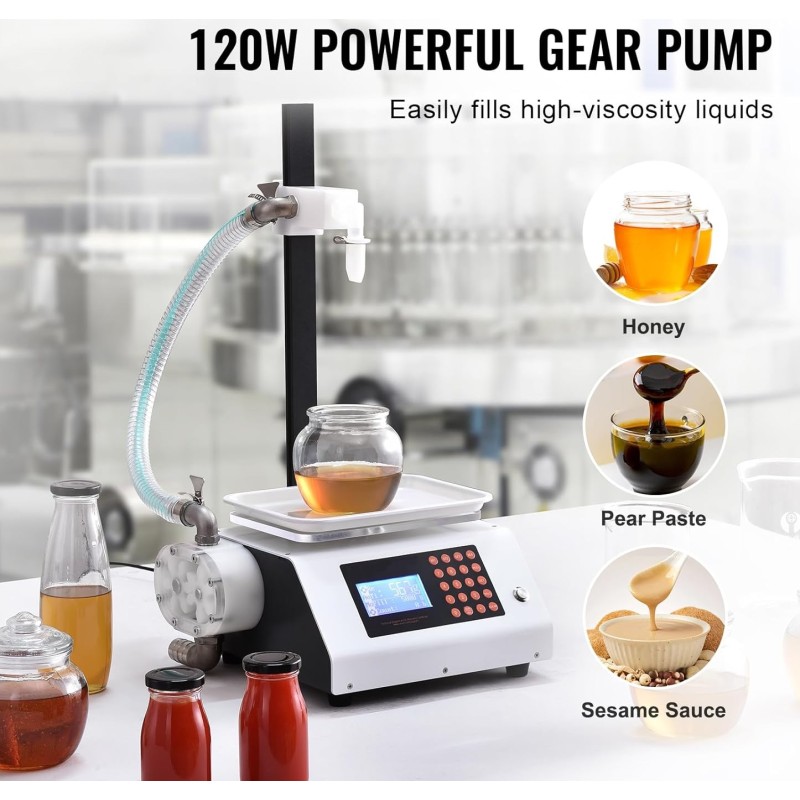

• High-flow gear pump (120 W): Capable of pumping dense liquids such as honey, pastes, and sauces. Maximum suction height: 1 m; flow rate up to 2 L/min.
• Digital precision: Set the exact filling amount via the keypad. The machine automatically slows as it approaches the target volume for improved accuracy.
• Food-grade contact parts: All surfaces in contact with product are made from certified safe materials. The Q235B steel housing is durable and corrosion-resistant.
• Anti-drip nozzle: Prevents spills and ensures a clean filling process.
• Quick cleaning: Inlet and outlet hoses can be removed for easy washing. The housing and components require minimal maintenance.
• Adjustable stand: Height can be changed to match different container sizes, improving workflow and reducing spills.

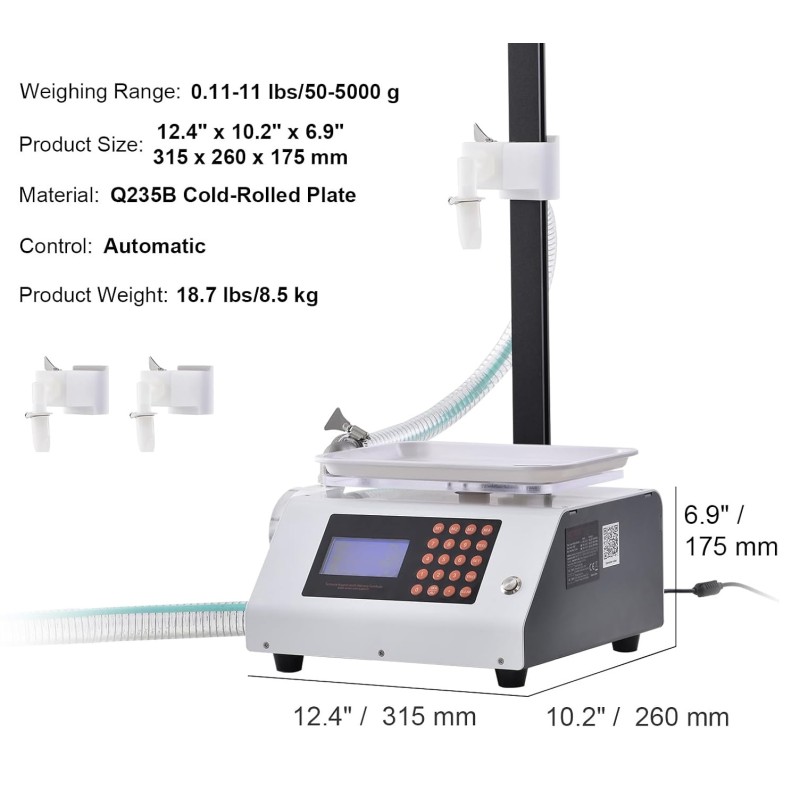

Technical Data

• Filling range: 50–5000 g (0.11–11 lbs)
• Pump power: 120 W
• Product dimensions: 315 × 260 × 175 mm (12.4" × 10.2" × 6.9")
• Product weight: 8.5 kg (18.7 lbs)
• Operation: Automatic
• Housing material: Q235B cold-rolled steel

Applications

• Honey, syrups, and fruit concentrates
• Sauces, oils, condiments
• Jams, purees, dressings
• Non-food liquids (detergents, cosmetic creams, gels, etc.)

Package Contents

• Filling machine unit
• 2 × nozzles
• 1 × inlet hose
• 1 × outlet hose
• 1 × power cable
• 1 × hex key
• 1 × user manual
