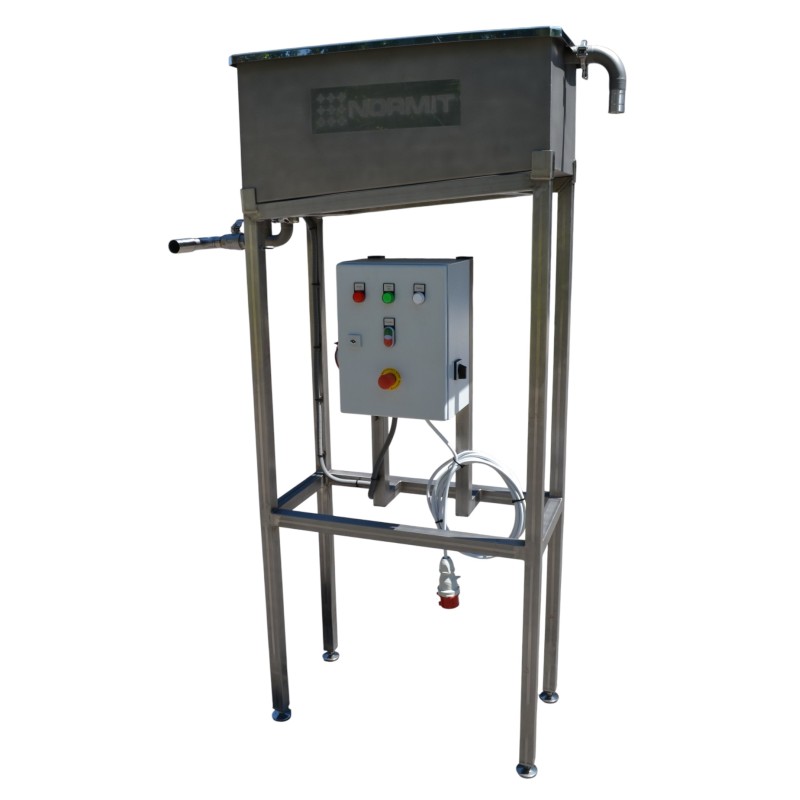

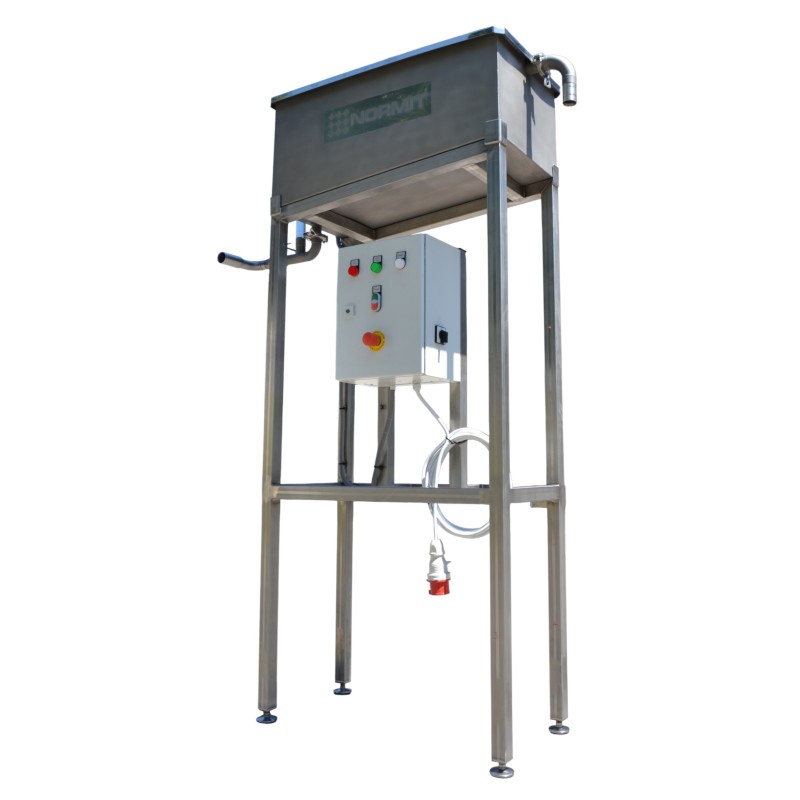

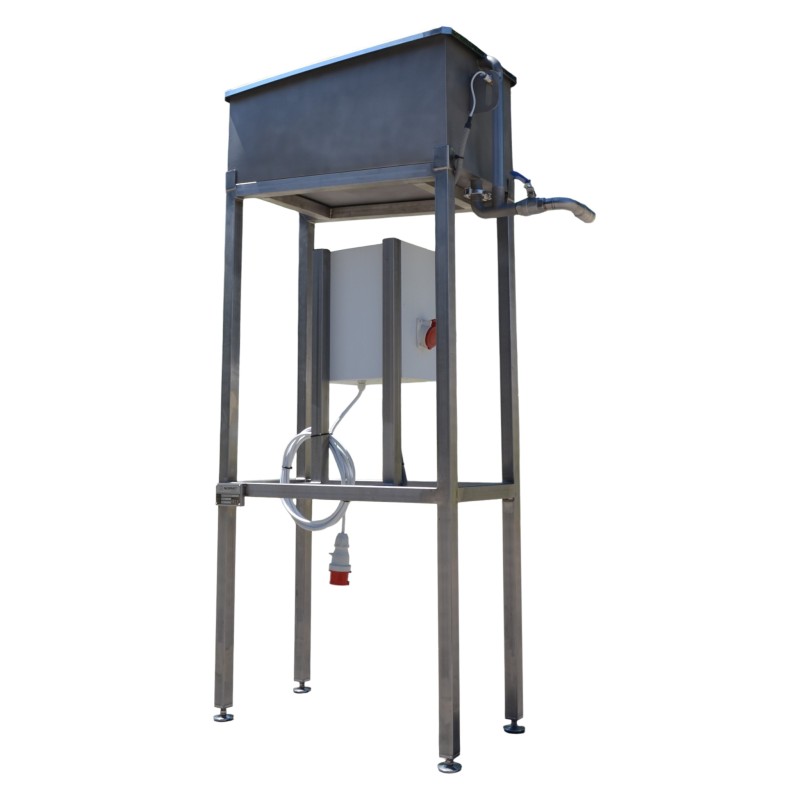

Dosing system with a reservoir MV 100

€0.00

Dosing tank for filling and measuring oil designed as an oil reservoir with the ability to adjust the required volume.

Download pdf files

This device is equipped with a control unit, a level sensor and an electrical socket for connecting any pump (at the maximum electric range of the electrical equipment of the vessel).

HOW IT WORKS

Connect the pump to the vessel’s inlet and plug it into an electrical outlet on the electrical cabinet under the container. After pushing the button, the pump switches on and starts filling the container with liquid. It fills it until the level sensor detects the set liquid level (this will ensure the set volume) and shuts off the power to the electrical outlet, thereby interrupting the pump operation. Subsequently, the attendant moves the feed from the vessel outlet to the desired machine and, after opening the manual valve, the liquid flows through the gravity to the destination.

At the request of the customer, a load bar, which shows the current oil level to the operator, can also be provided.

After emptying the container, it is necessary to wash the container, close the manual valve and, after pressing the button on the electrical cabinet, pump the tank again to the required volume.

Technical data:

Material	AISI 304
Geometric volume (open tank) up to, l	100
Geometric volume (closed tank) up to, l	100
Working volume up to, l	80
Length, mm	1250
Width, mm	450
Height, mm	1800
Weight, kg	60

Material: Stainless steel
Principle of operation: Batch mode
Volume: 100l
Working volume: 80 l
