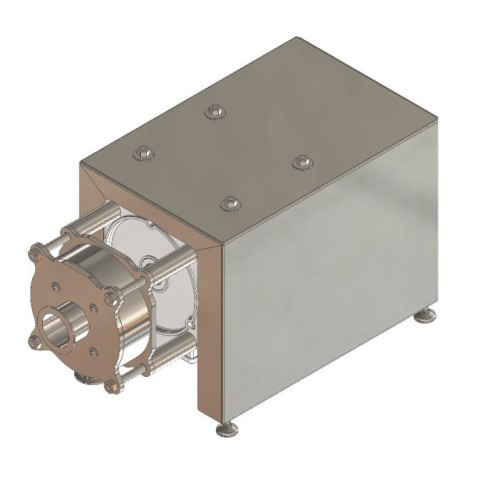

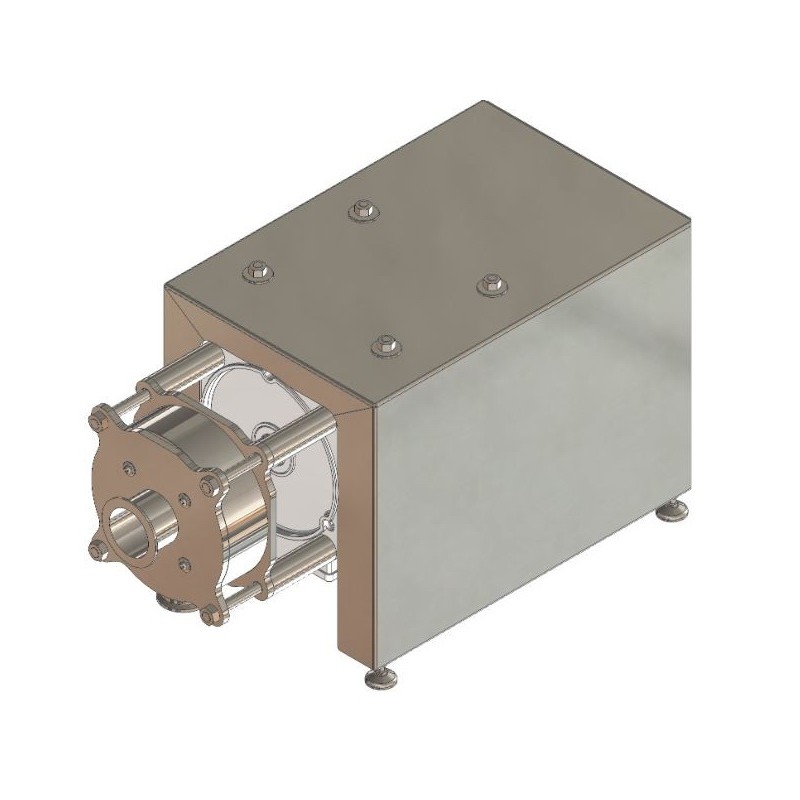

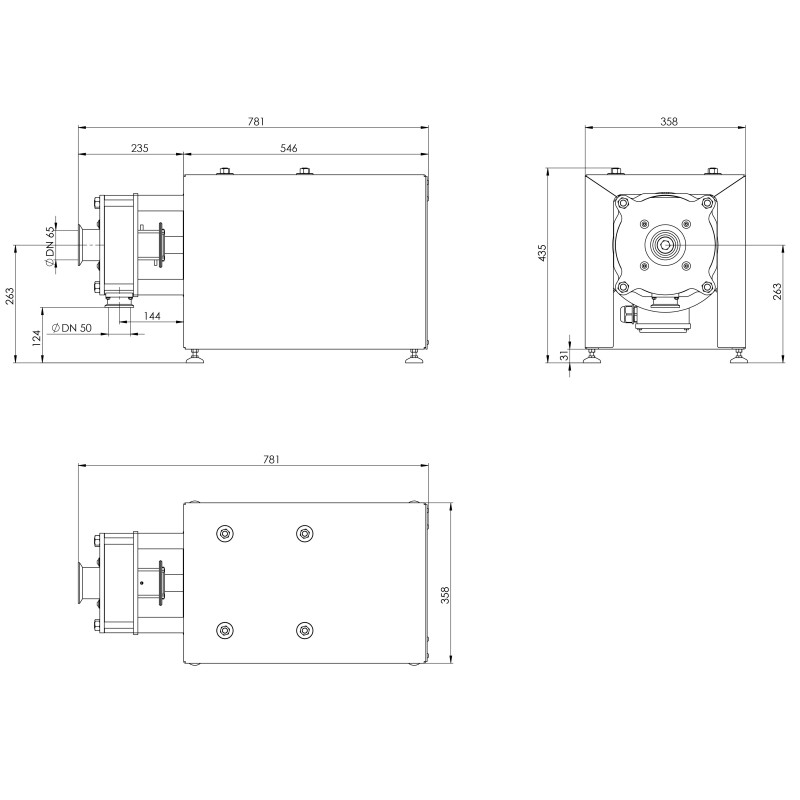

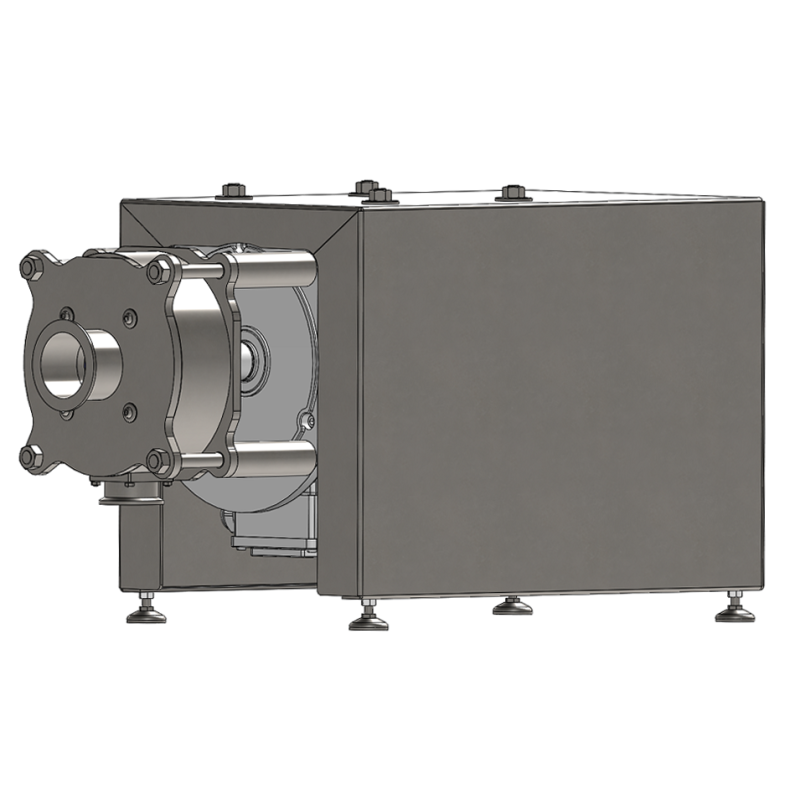

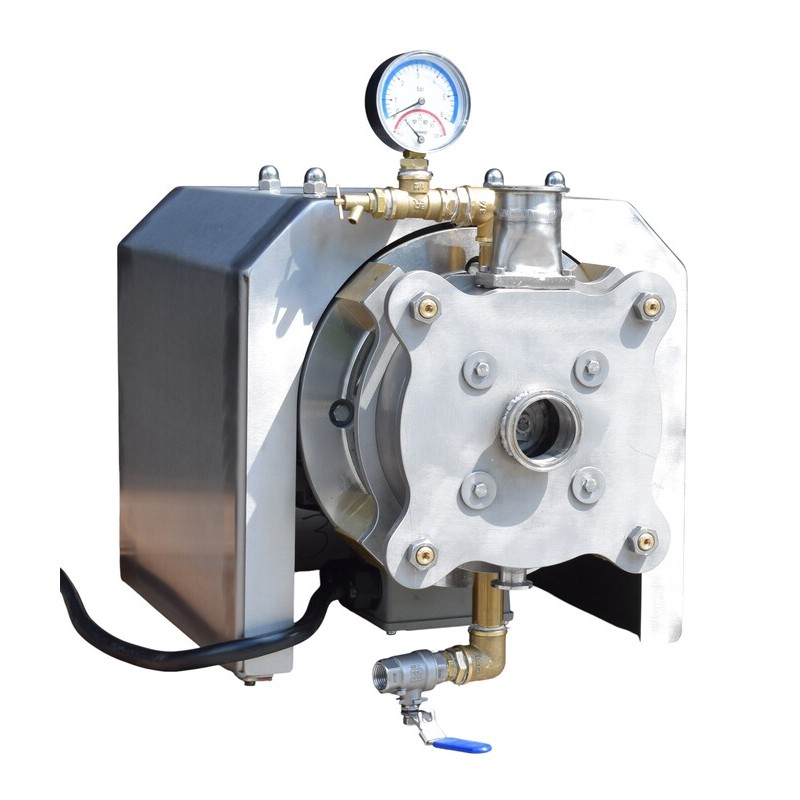

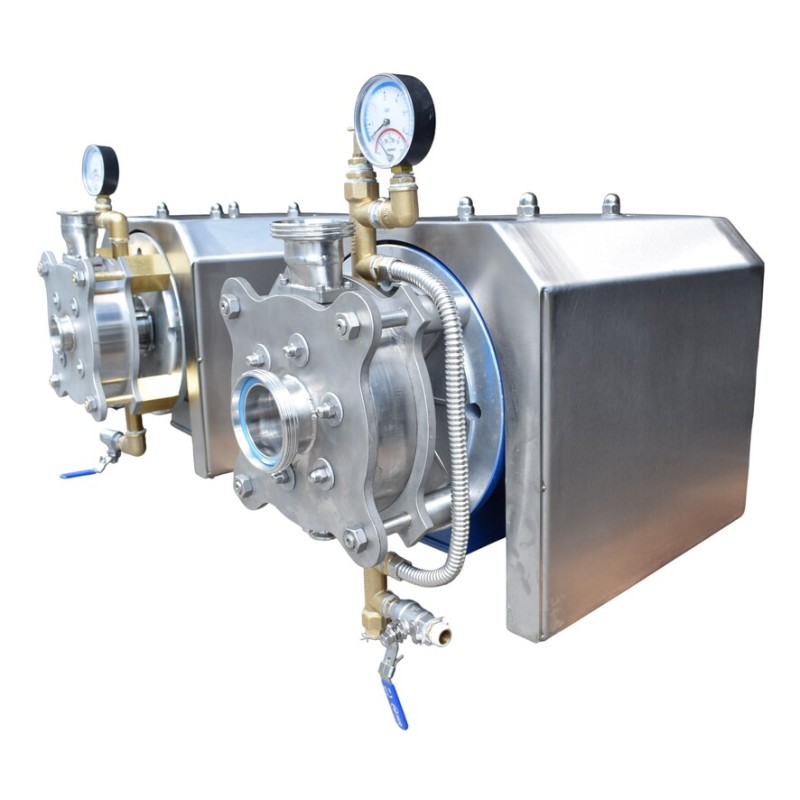

Inline Homogenizer ULTRA SHEAR 5,5-15 kW
The inline homogenizer is designed for mixing, emulsifying, dispersing, and homogenizing thick and viscous products in the production of mayonnaise, soy milk, toothpaste, yogurt, and much more. It can be installed in an external circulation circuit of reactors, production lines, or used independently with a loading hopper for processing small volumes of products.
- Creates stable emulsions and suspensions
- Reduces particle size
- Quickly dissolves solids
- Accelerates chemical reactions
- Does not require an additional pump
The homogenizer – disperser Ultra Shear refers to continuous-action inline equipment designed for dispersing, homogenizing, and grinding coarse particles, as well as fatty compounds in various mixtures through rotary-cavitation action to produce homogeneus emulsions.
Homogenizing units are designed for fine mixing, dispersion and emulsification of ingredients for making products such as:
|
|
|
|
|
|
|
|
|
|
|
|
Advantages:
- Modern design with an upper body made out of polished food grade stainless steel.
- Suitable for dissolving poorly wetted powders, coarse emulsions, and processing raw materials containing large pieces of products.
- The basic configuration includes a double mechanical shaft seal, which significantly increases the service life of the unit even when processing aggressive liquids and fluids containing abrasive particles at ambient temperatures of up to 110°C.
- Integrated cooling system for the double mechanical shaft seal.
- Easy to maintain, convenient and easy to clean.
Basic version
It comprises a rotary-pulsation unit with a powerful high-speed electric drive featuring a double mechanical seal, a cooling and lubrication system for the mechanical seal, an external casing made out of stainless steel, and height-adjustable legs.
Processes:
|
|
|
|
|
|
|
|
Options:
- An inverter in the form of an independent control panel for adjusting the speed of the homogenizer
- Material: Stainless steel
- Engine power, kW: 5,5/ 7,5/ 9/ 11/ 15
- Principle of operation: Continuous mode
- Country of origin: Slovakia
- Voltage: 380-400V
