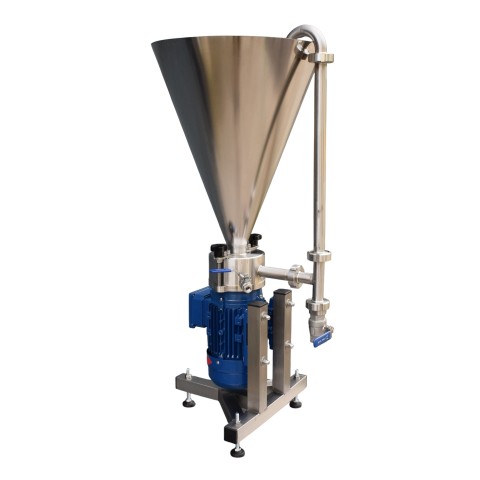

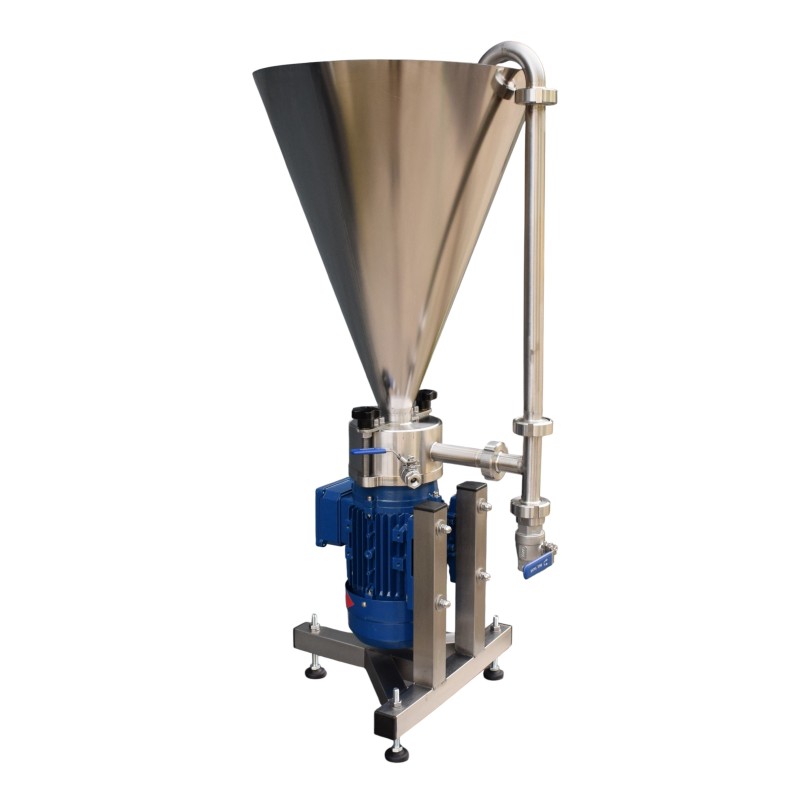

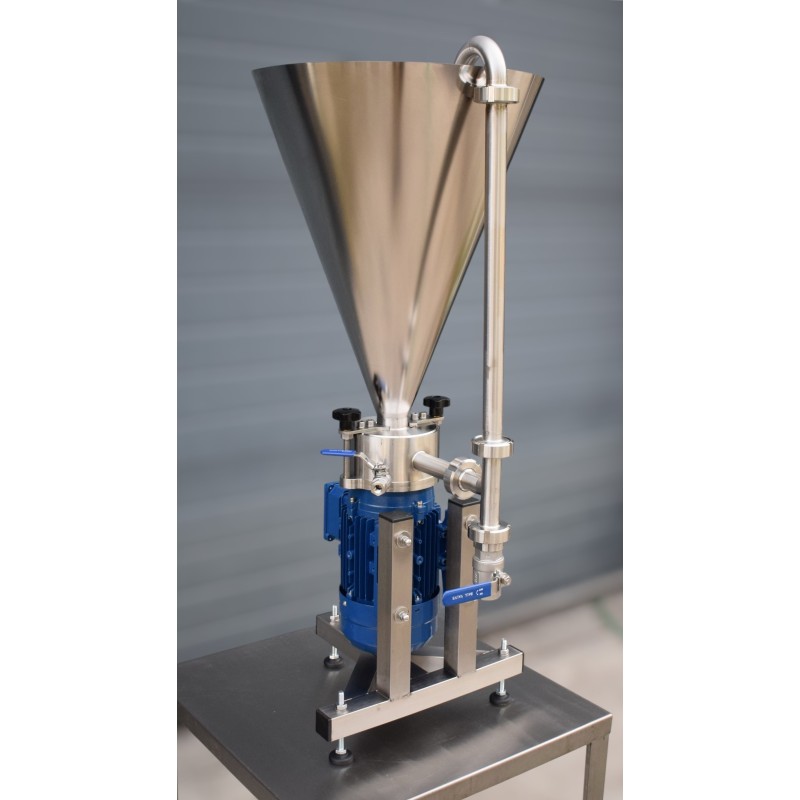

Universal homogenizer AHU 10
The AHU universal homogenizer is a compact inline unit designed for emulsifying, mixing, homogenizing, and dispersing liquid and semi-liquid products. It is suitable for use in food processing, cosmetic production, and chemical applications for homogeneous particle size reduction and uniform product structure.
- The AHU homogenizer is used for preparing homogeneous emulsions, solutions and uniform, stable suspensions.
- It enables efficient processing of liquid and semi-liquid products in the food, cosmetic, pharmaceutical and chemical industries.
- Equipped with a 14-stage YUMIX basic 2.2kW with the possibility to adjust the distance between the rotor and stator, with a 9 position conical teeth configuration

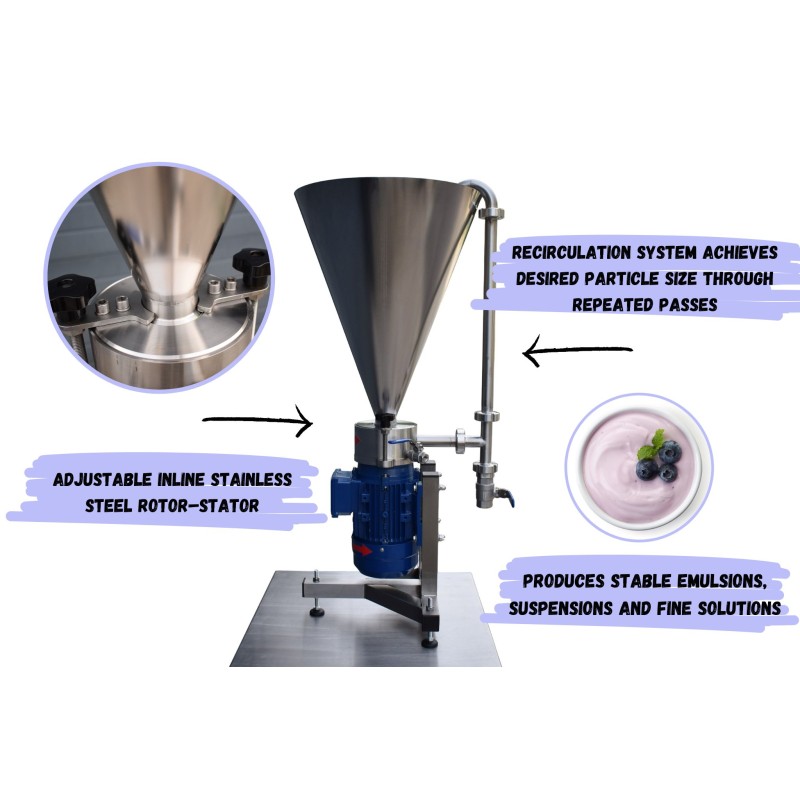

- Integrated recirculation loop, helps to achieve the desired particle size in the circulation circuit
The inline design of the homogenizer allows for continuous recirculation homogenization, ensuring repeatable results across separate batches.

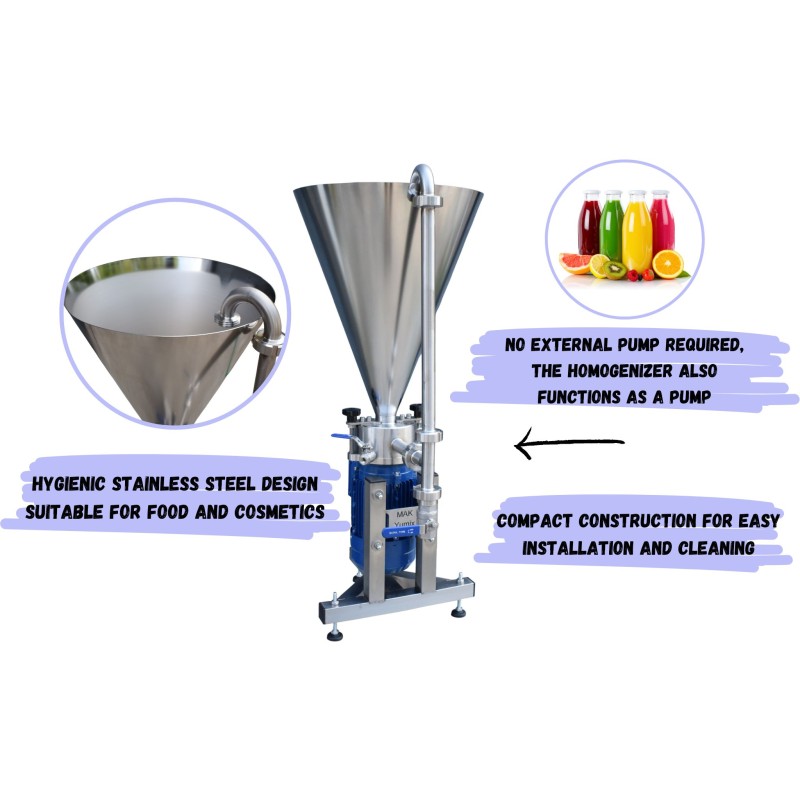

The unit is equipped with an integrated hopper, recirculation loop, and a discharge outlet for liquid and semi-liquid products. The conical product hopper is designed without dead zones where the product would accumulate, to facilitate cleaning and processing of sensitive materials. The inline design of the homogenizer allows for continuous recirculation homogenization, ensuring repeatable results across batches.
Ideal for processing and the production of products including:
- Soft cottage cheese, condensed milk
- Ketchup, mayonnaise, sauces, dressings
- Juices, nectars
- Cosmetic creams
- Disinfectant solutions, suspensions
- Margarine, pastes, purees
- Baby food, toppings, honey
- Gels, toothpastes, ointments
Basic version
The basic version of the AHU homogenizer includes a compact 2,2 kW inline homogenizer with a rotor-stator system, mounted on a stainless steel frame, a product recirculation loop with an outlet valve, an integrated accumulation 30 L hopper and power supply to a 3-phase 400 V network.
Principle of operation
The homogenizer operates using a rotor–stator mechanism, where the product is drawn into the homogenization chamber. The rotating rotor forces the medium through the stator openings at high velocity, creating shear forces that reduce the particle size. This process results in a uniform and stable emulsion or suspension.
Technical parameters
- Hopper volume 30/10 l (geometric/working)
- Motor power - 2.2 kW
- Electrical connection - 3-phase 400V
Additional options:
- Batch working vessel
- CIP system
- Material: Stainless steel
- Engine power, kW: 1,1/ 7,5 kW
- Country of origin: Slovakia
