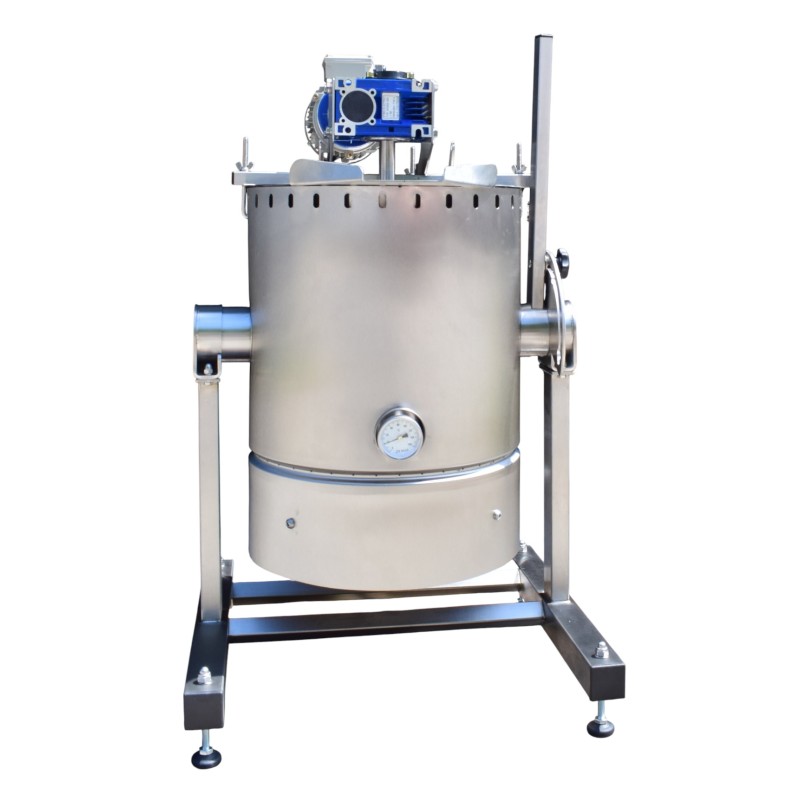

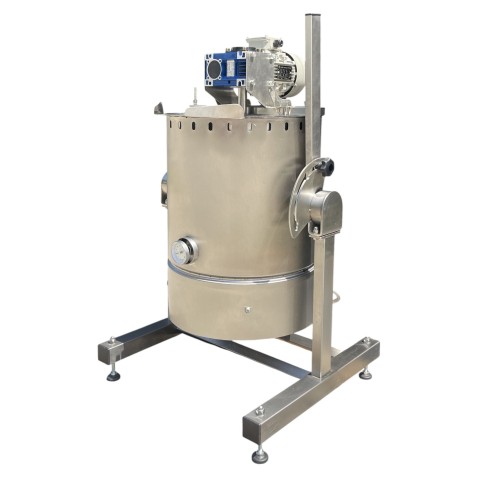

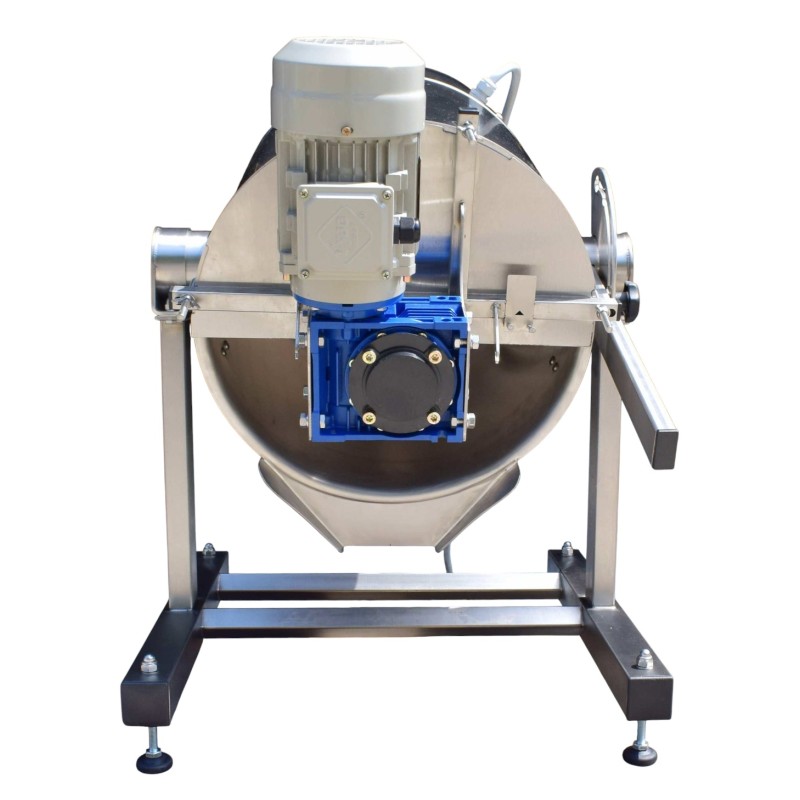

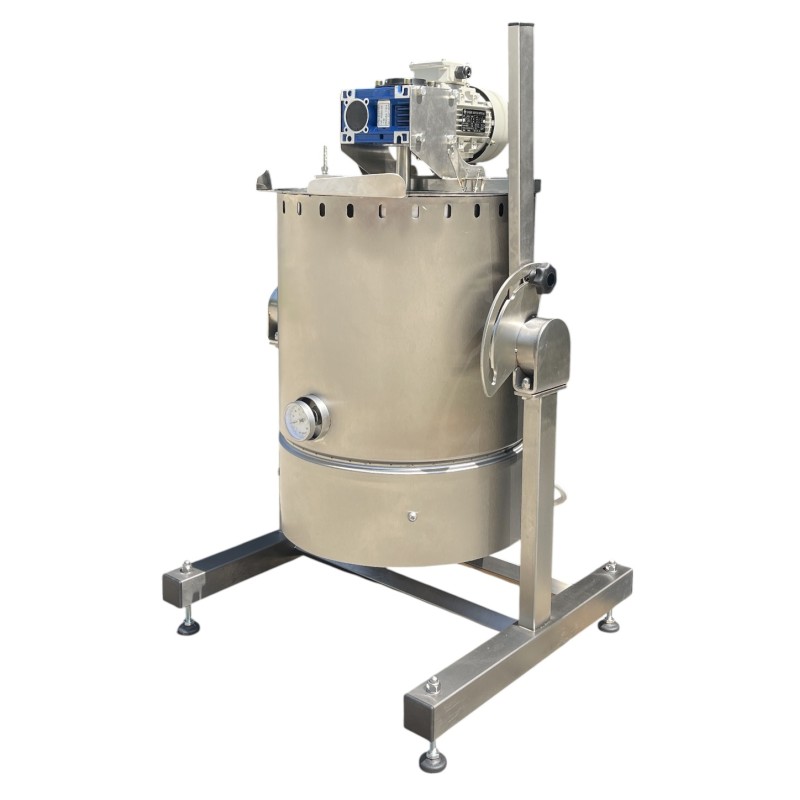

Tilting mixer MakMix
The universal 50-liter Mak Mix mixer, thanks to its easily removable mixing device and the tilting system of the working bowl, is a universal mixer for mixing, stirring, kneading various solutions and mixtures.
- Gravity mixing which is 40% more efficient, is possible due to the ability to adjust the tilt angle of the working container
- Simple and convenient design for maintenance - compact installation
- Independent stainless steel supporting structure
- Easily removable lid with a mixing device
- Special small elongated protrusion - spout on the edge of the working container for convenient draining and unloading of the product
- Tilt angle for unloading - 110 degrees
The inclined 50-liter Mak Mix mixer designed for obtaining multi-component mixtures and solutions can be used for a wide range of products for processes such as mixing, mixing, kneading.

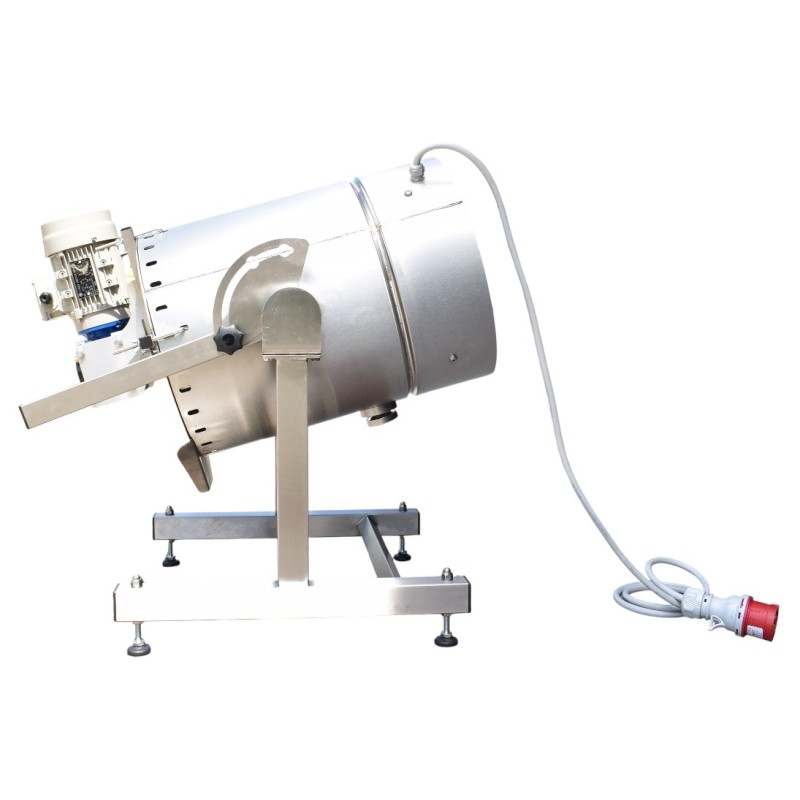

The special feature of this mixer is the ability to mix and stir while the working unit is tilted. This type of mixing is called gravity mixing and its efficiency is 40% higher than the typical vertical method. This method also allows for high-quality mixing and stirring of a small volume of product in the working tank.
A universal mixer with a tilting working tank is suitable for obtaining various solutions and mixtures, both in the food and cosmetic industries.
Advantages
- Simple operation and maintenance, due to its small size and compact size, the unit takes up little usable space
- Ability to select the type of mixing device in accordance with the product and technological process
- The unit is made entirely out of food-grade stainless steel
- Tilting system for the working tank designed for gravity mixing and convenient emptying of the mixer without product loss
Basic version
It comprises a single-layer tank suspended on a supporting structure, equipped with an upper body with a mixing device of your choice (depending on the product and processing process), a three-stage tilt with mechanical position fixation.
Options
- Height-adjustable legs
- Wheel support with brakes
- Outlet valve
- Jacket for the heat transfer medium
- Control panel for adjusting the rotation speed of the mixing device, based on a frequency converter with IP66 rating
- Material: Stainless steel
- Engine power, kW: 0,25/ 0,37
- Principle of operation: Batch mode
- Country of origin: Slovakia
- Volume: 50l/ 100l
- Stirrer speed, rpm: 18
