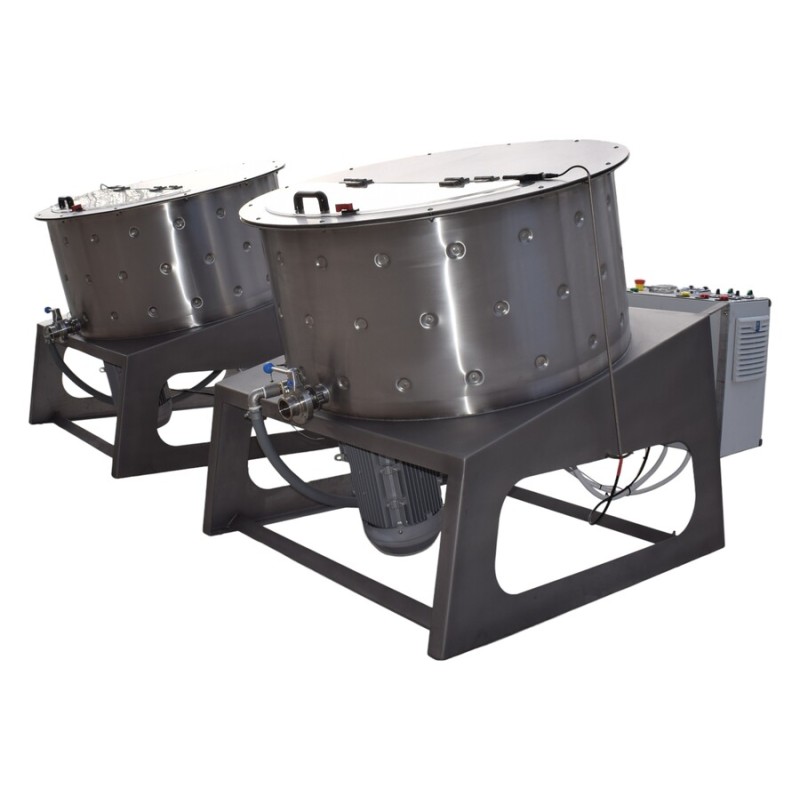

Universal cutter / mixer CUT 300

The atmospheric cutter-mixer with an inclined design can be used not only for mixing and grinding, but also for parallel heat treatment of products: cooking, cooling, pasteurization, followed by grinding to a cream/paste state. A special feature of the installation is a powerful electric drive for cutter knives and a frame mixing device, which is necessary when processing and manufacturing thick and viscous products.

The universal cutter is suitable for the production of the following products:

Advantages:

• A characteristic feature of the new series of cutters is gravity mixing, which is 20-25% more efficient than conventional mixing! The inclined design also makes it easier to unload the product after processing, where gravity is added to the centrifugal force of the mixing device!
• Two duplicators: the bottom and walls of the working tank, which can be used together or independently of each other with one or various coolants (with inlet pressure of up to 0.5 Bar)
• Wide range of functions in a single installation
• No blind spots
• High drive speed of the cutter knives: 3000 rpm at 50 Hz
• Efficient grinding due to a high-power electric drive
• Easily removable stirring device, convenient and easy to perform maintenance and cleaning
• Programmable relay at the control panel, allowing you to set the time and operating mode of the system
• Turning off the operation of rotating elements when opening the hatch cover - a high level of safety for the operator
• Additional hatch cover safety grid for safe loading and handling
• Hygienic and compact design, control located directly on the unit's supporting structure

Basic version

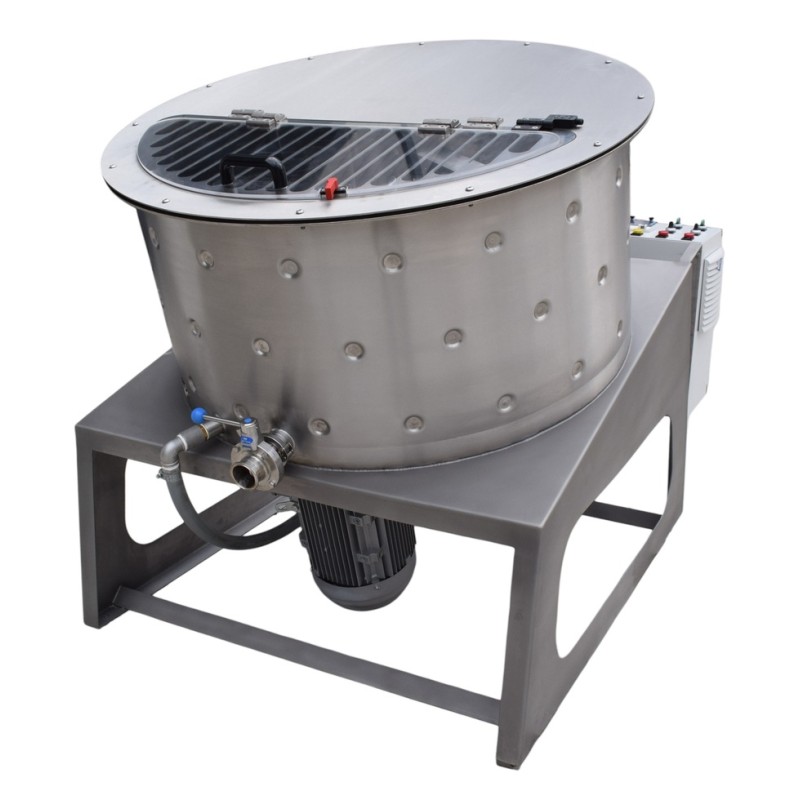

It consists of an atmospheric inclined reactor mounted on a supporting structure. The container is equipped with a special frame mixer with Teflon scrapers for thick and viscous products, cutter knives, a heating/cooling jacket, a safety grill for loading raw materials during operation, a sectional opening hatch with a sensor for turning off the operation of the mixing device and the cutters knives when the lid is opened, a control panel, and a temperature sensor is installed at the bottom of the installation to measure and control the temperature of the product.

Principle of operation

This installation has a wide range of possibilities thanks to its heating/cooling “jacket”. It allows not only for grinding and mixing, but also heat treatment of the crushed ingredients, for example, cooling of heat-sensitive products, or, conversely, heating or cooking the crushed raw materials directly in the cutter after grinding. Cutting knives grind and chop, while a special frame mixer stirs and mixes the products, creating a homogeneous mixture.

Processes:

*coolant pressure from an external source at the inlet is up to 0.5 Bar

Options:

• upper decorative casing made out of stainless steel with thermal insulation
• pump for loading/unloading the product
• hot water source
• chiller/refrigerator
