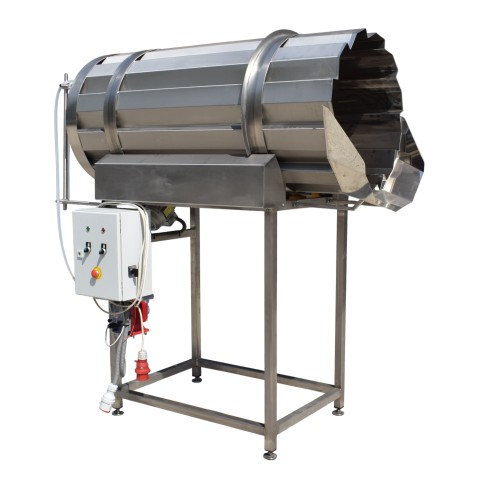

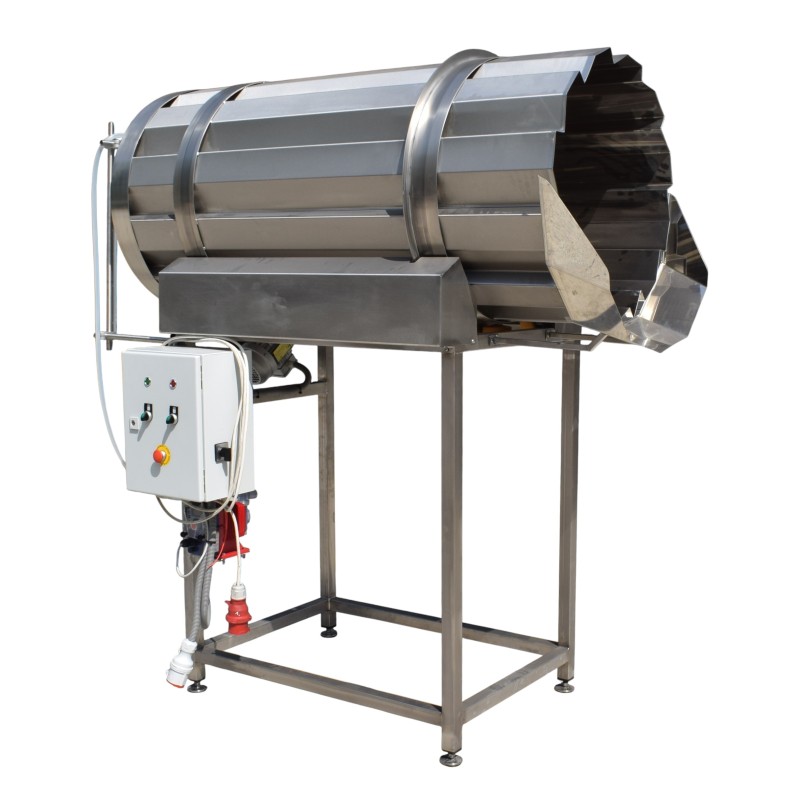

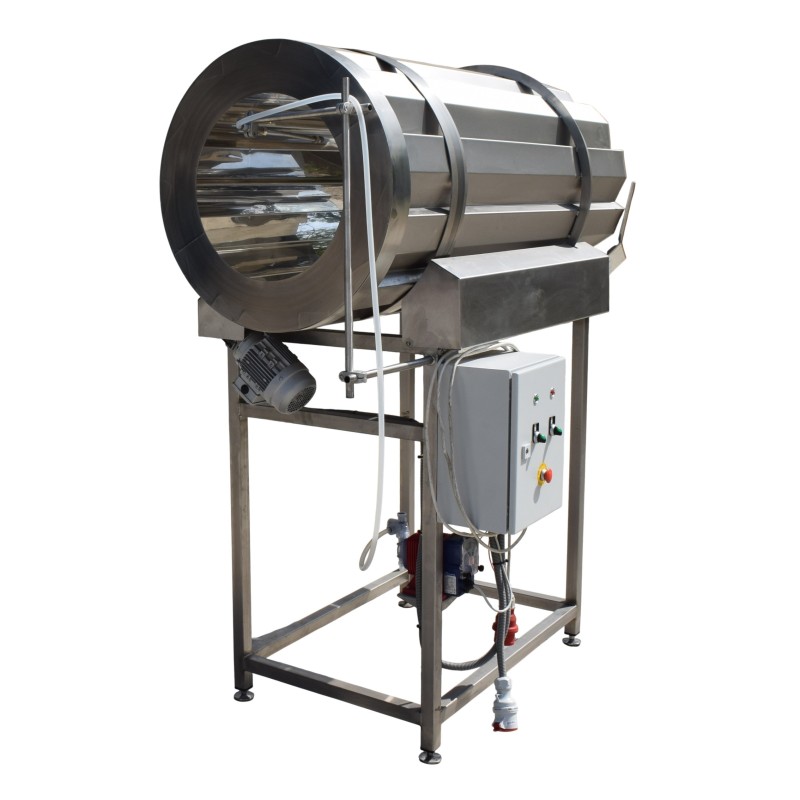

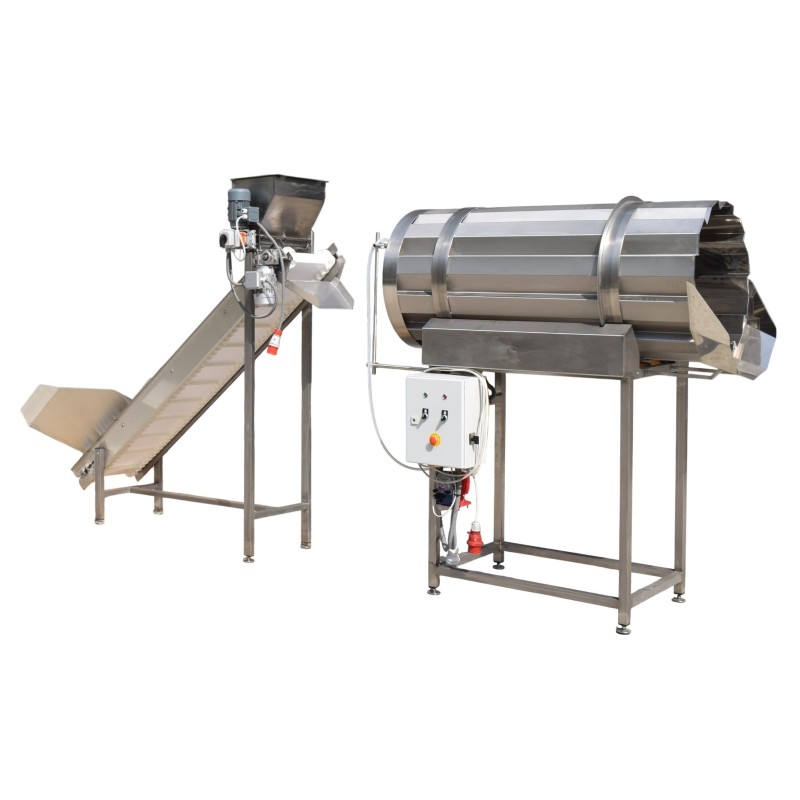

Coating mixer Drum AD
A rotating drum unit designed for continuous coating and seasoning operations as well as product saturation with spices and flavor additives, utilized in production lines for chips, snacks, and various semi-finished products.
- Adjustment of the Drum Tilt Angle
- Hygienic design and execution: mirror-polished inner surface of the drum
- Various blade options for gently turning the product (optional)
- Dispensers for dry and wet flavorings (optional)

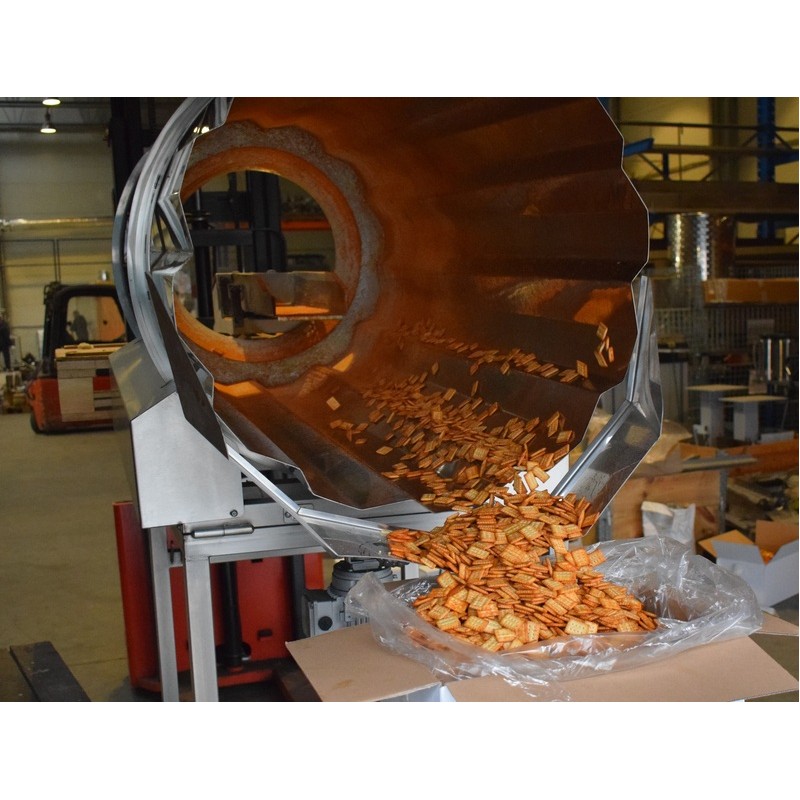

The drum mixer facilitates seamless operation for coating snacks and other products, allowing for the application of various seasonings, saturation with additives, and sprinkling products with ingredients such as sugar, salt, cinnamon, vanilla, etc.
The continuous drum mixer for coating and flavoring is suitable for a variety of products, including:
|
|
|
|
|
|
|
|
Advantages:
- Compact equipment on a supporting structure made entirely out of stainless steel, including the frame.
- Adjustable product passage speed achieved by modifying the inclination angle of the working drum (0-10°).
- Internal ribbed design for consistent product processing, mixing, and turning.
- High hygiene standards, with an internal surface Ra < 0.8 µm.
Basic Version:
The working drum, featuring a ribbed internal structure, is mounted on a supporting frame, allowing for the tilting of the container, both electrically and with a rotation drive. The frame and drum design, along with mechanical tilt adjustment, ensure the uniform application of liquid and dry coatings on each product unit. The tilt angle of the coating drum can be adjusted from 0 to 10 degrees.
Depending on the application, liquid dosing can be achieved through a perforated dosing pipe and a pump or a funnel as well as conveyor system for dry materials (optional). The system can operate cyclically or continuously, depending on additional components.
Options:
- Dosing systems for liquid and dry components
- Frequency converter as an independent control panel
- Frame wheel supports with position brakes
- Sanitary drain port at the drum outlet
- Mist/dust collection hood
- Different types of blades
- Material: Stainless steel
- Principle of operation: Continuous mode
- Country of origin: Slovakia
- Total power, kW: 0,25
- Voltage: 380-400V
