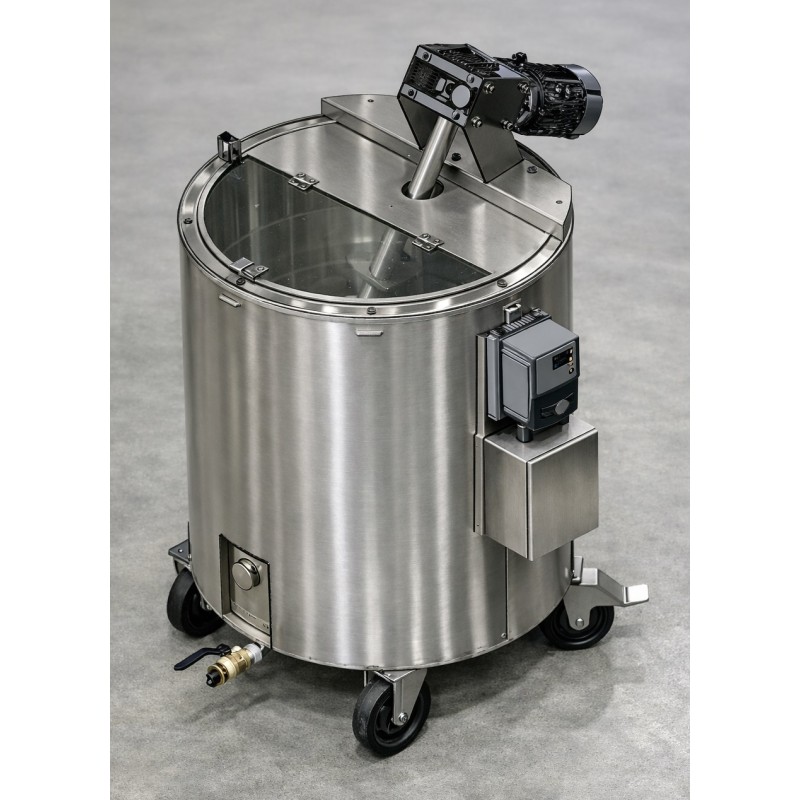

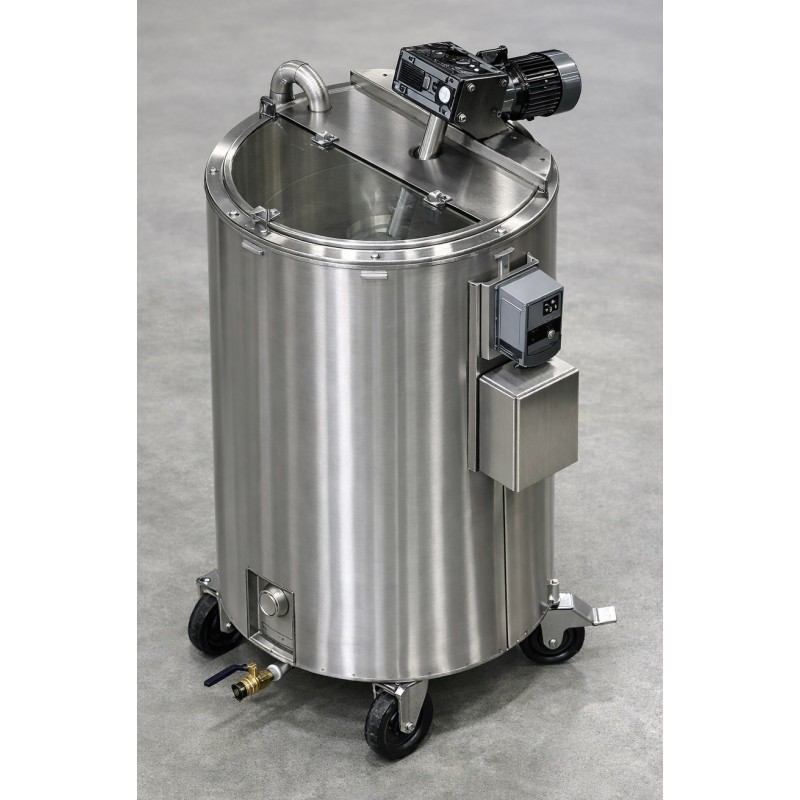

Honey homogenizer with an auger mixer 500 / 1100 kg
A honey homogenizer is a batch-type device designed to improve the product's structure and organoleptic properties. It ensures a uniform consistency and stable texture of honey.
Homogenization is a processing technology that makes honey flowable and uniform, as well as inhibits crystal growth, thus meeting the needs of producers and consumers. The design, size, and angle of the rotary auger achieve a high level of homogenization, which also reduces raw material processing time.
- High level of homogenization, aimed at increasing stability and improving the honey's structure without altering the product's flavor.
- No dead spots or corners due to the inclined bottom of both the working tank and the auger mixer.
- The working tank is equipped with a jacket and a built-in water heating system.
- Large-diameter outlet valve installed at the lowest hydraulic point.
A honey homogenizer with an inclined auger mixer is a professional unit designed for homogenizing natural, crystallized, or partially crystallized honey. It is used to achieve a uniform structure, improve flowability, and prepare the honey for further processing.
The honey homogenizer is ideal for:
- homogenizing natural and crystallized honey
- producing creamy and mixed honey products
- processing honey with the addition of various ingredients
Advantages
The reinforced rotary auger mixer is equipped with a powerful drive, specifically designed for thick and viscous products, making it suitable for honey of various consistencies and densities.
Achieves uniform homogenization of honey without excessive shear or overheating. Mixing is achieved by a vertical auger mounted at an angle inside the container. This design ensures axial and radial movement of the product, ensuring thorough homogenization and preventing excessive mechanical stress on the honey.
The angled auger mixer ensures effective mixing, lifts the honey from the lowest point to the top, creating internal circulation, and during unloading, a reverse action helps unload the honey from the unit. Maximum emptying with minimal losses is achieved through the tank's sloping bottom, a drain valve installed at the lowest hydraulic point, and a reversible auger mixer.
- The mobile design on casters provides flexibility for use in various production areas.
- A built-in heating system in the jacket allows temperature control directly on the heating element.
- The unit is made entirely out of food-grade stainless steel.
The basic version includes:
The unit consists of a stainless steel working tank with a heating jacket, a built-in heating system, and a auger mixer, all mounted on mobile caster wheels. The upper body is equipped with a plexiglass hatch for visual inspection. The operating principle of the honey homogenizer is to crush and disperse honey particles in a fluid medium by stirring under gentle heating.
The unit can also be used as:
- a mixing tank for thick and viscous products
- a melter for dissolving or melting products with a low melting point
Options
- Variable frequency converter for controlling the mixing unit speed
- Pumps for product discharge
Technical specifications
- Material: AISI 304 stainless steel (AISI 316 optional)
- Tank design: Double-wall vessel for indirect water heating
- Capacity: 500 kg / 1100 kg (approx. 400 / 800 L)
- Heating type: Indirect electric heating via water jacket
- Heating power: 4 kW (500 kg) / 6 kW (1100 kg)
- Mixer motor power: 1.1 kW (24 rpm at 50 hz)
- Discharge valve: 1 1/4" outlet valve
- Control: Adjustable temperature control (PID optional)
- Power supply: 230 V / 400 V, 50 Hz
- CE compliance: Control cabinet and integrated safety components according to CE standards
- Material: Stainless steel
- Principle of operation: Batch mode
- Country of origin: Slovakia
- Total power, kW: 4/ 7
- Loading, kg: 500/ 1100
