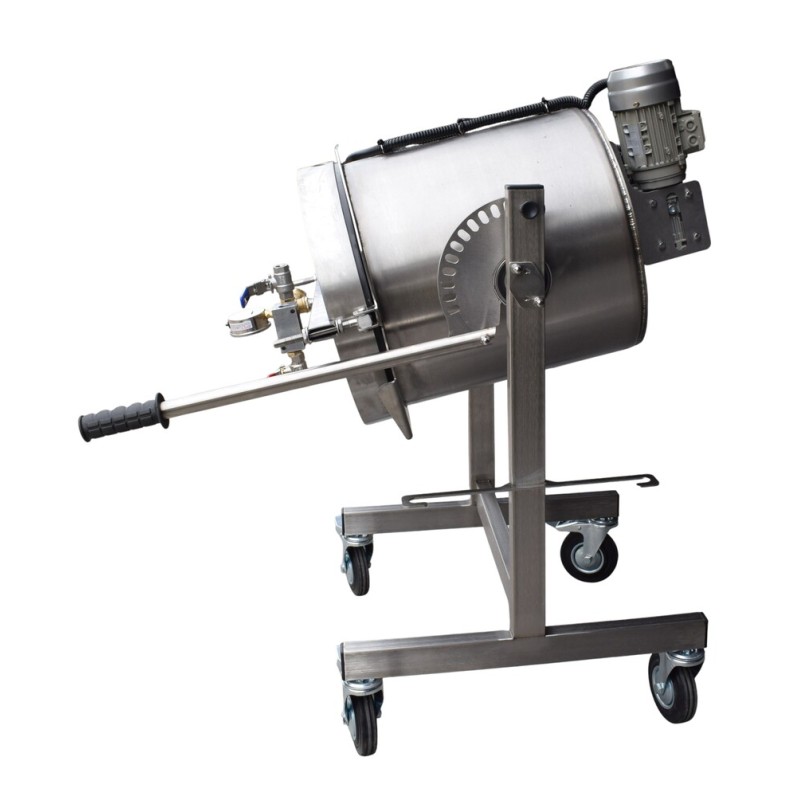

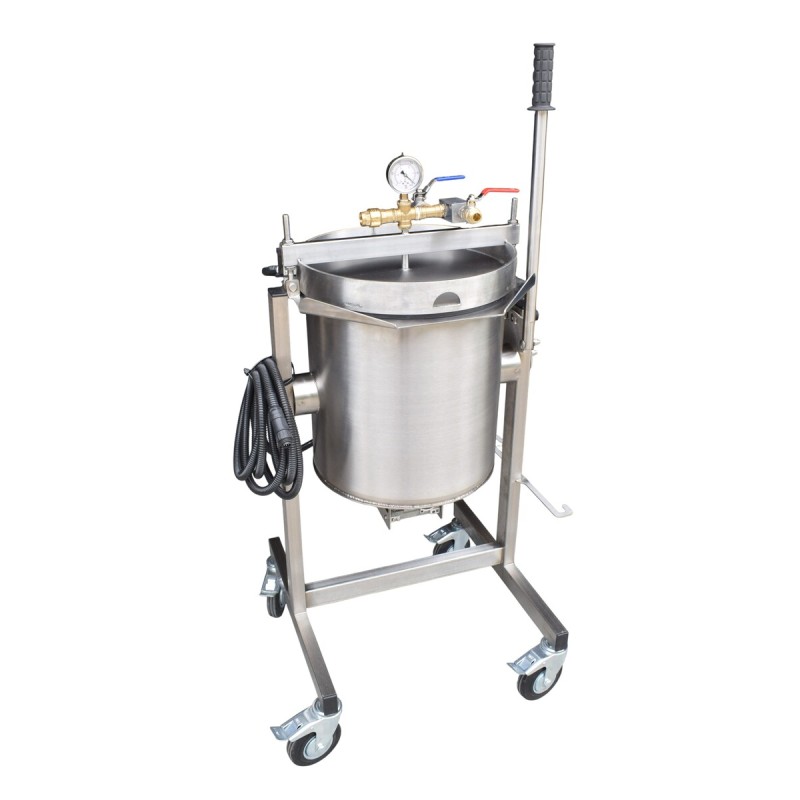

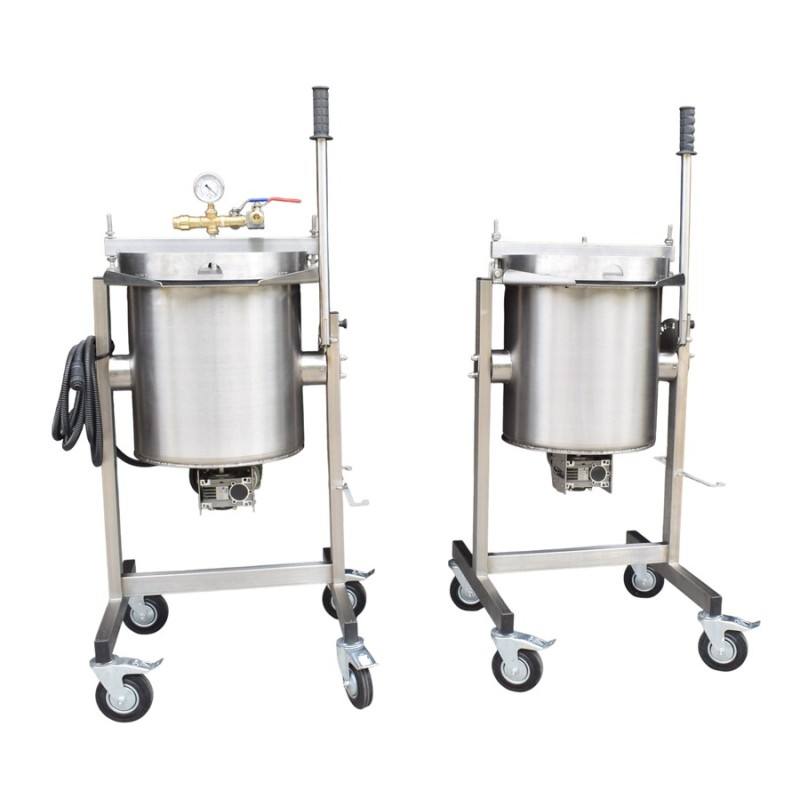

Vacuum mixer with tilting 50 - 200 L
The 50 liter vacuum mixer with a tilting function is designed for gentle mixing of lightweight granules, dry powders, seeds, and similar products under vacuum conditions. Its unique tilting design with multiple locking positions allows continuous gravity-assisted mixing, improving circulation inside the vessel while minimizing manual intervention.
- Vacuum mixing for improved product homogeneity and reduced air content
- Gravity-assisted mixing with multiple tilting positions
- Tilting vessel up to 110° for almost complete product discharge
- Mobile stainless steel frame with locking caster wheels
- Gentle processing of granules, powders, seeds, and similar lightweight products
The unit is mounted on a compact mobile frame with 4 locking caster wheels, meaning it can be easily moved throughout the production facility and positioned wherever it is needed. The vessel can be locked at multiple working angles, allowing gravity-assisted mixing, which depending on the processed product, can improve mixing efficiency by up to 50% compared to conventional horizontal mixing systems.
Vacuum mixing with gravity assistance
In conventional mixers, product movement relies primarily on the mixing tool. The tilting vessel allows gravity to continuously redistribute the material through the mixing zone. This creates more uniform circulation, helping lightweight products move naturally through the vessel and reducing stagnant areas.
The vacuum environment also removes entrapped air bubbles from the product during mixing. This can produce a denser and more homogeneous mass, improve the appearance and consistency of the final product, as well as reduce oxidation caused by trapped air. For many food products, minimizing the amount of residual air can also contribute to an extended shelf life by slowing oxidative deterioration and improving overall product stability.

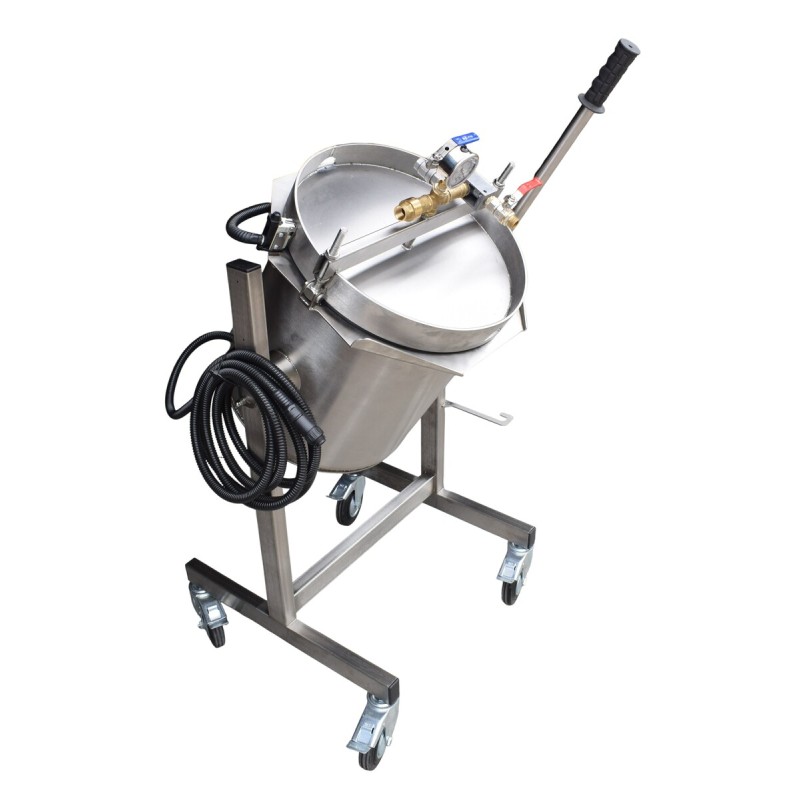

After processing, the vessel can be tilted up to 110°, allowing nearly complete product discharge, minimizing residue inside the mixing chamber.
Designed for lightweight products

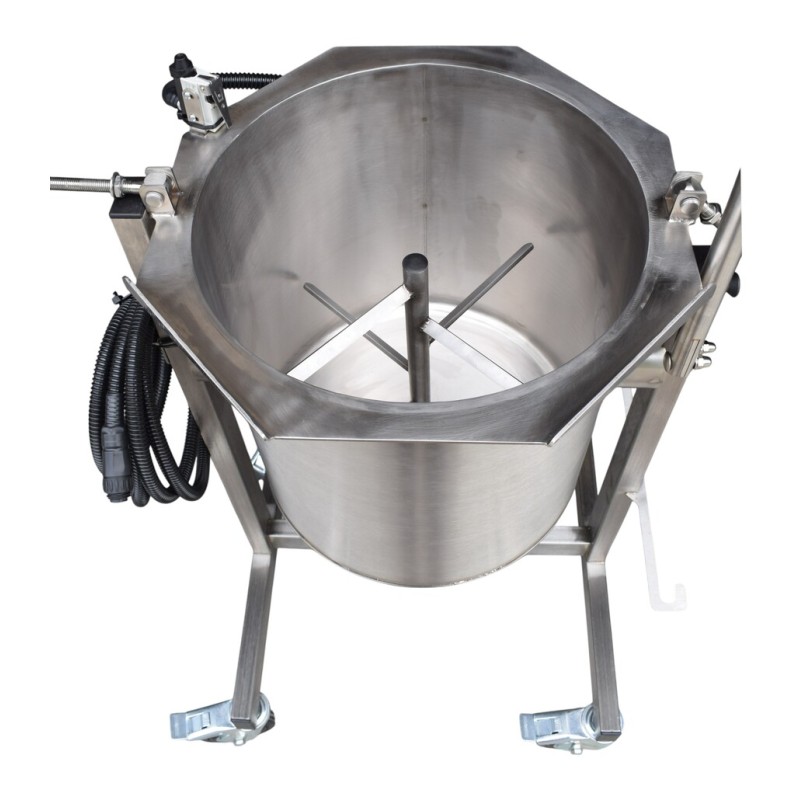

The mixer is equipped with a 90 W geared motor driving a specially designed mixing assembly suitable for gentle handling of:
- Granules
- Seeds
- Cereals and grains
- Seasonings and spice blends
- Lightweight powders
- Gel-like and low-density products
- Similar free-flowing materials
The open mixing design gently circulates the product without excessive mechanical stress, making it suitable for applications requiring the preservation of product integrity.
Also suitable for vacuum impregnation
In addition to vacuum mixing, the equipment can be used for vacuum impregnation of porous products. By applying vacuum before introducing a liquid, air trapped inside the product structure can be removed, allowing improved absorption of oils, flavorings, marinades, nutrients, or other liquid additives.
Typical applications include granules, seeds, cereals, pellets, and other porous food products.
Example application
One practical application is the preparation of fish feed pellets, where porous granules are mixed with fish or vegetable oil under vacuum conditions. Removing trapped air bubbles before coating can improve liquid penetration and help achieve a more uniform distribution of the added oil throughout the batch.
Operator safety and unit mobility
The vacuum mixer is designed for convenient daily operation and includes:
- Mobile stainless steel frame with locking caster wheels
- Tilting vessel with multiple locking positions
- Tilting angle up to 110° for easy emptying
- Vacuum-tight lid with integrated safety sensor
- Compact design suitable for professional kitchens, laboratory, pilot-scale, and small production environments
Advantages
- Vacuum mixing which allows deeper flavor penetration
- Gravity-assisted mixing using the tilting vessel design
- Up to 50% improved efficiency with gravity mixing
- Nearly complete product discharge with up to 110° tilting
- Gentle processing of granules and powders
- Mobile construction for flexible production areas
- Suitable for vacuum impregnation applications
- Stainless steel construction for hygienic operation
- Material: Stainless steel
- Engine power, kW: 90 W
- Principle of operation: Batch mode
- Country of origin: Slovakia
- Volume: 50l
