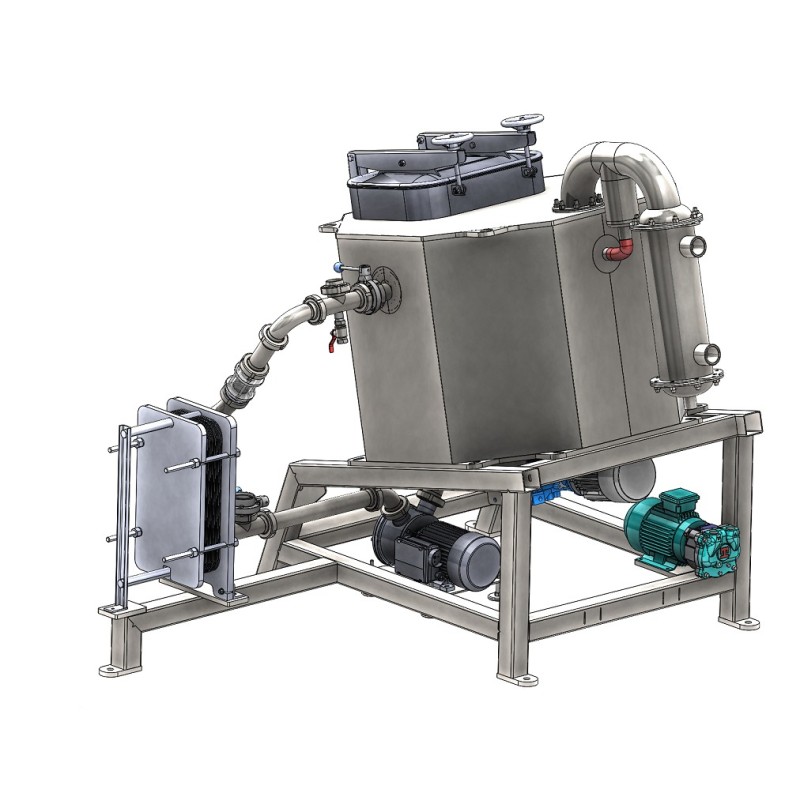

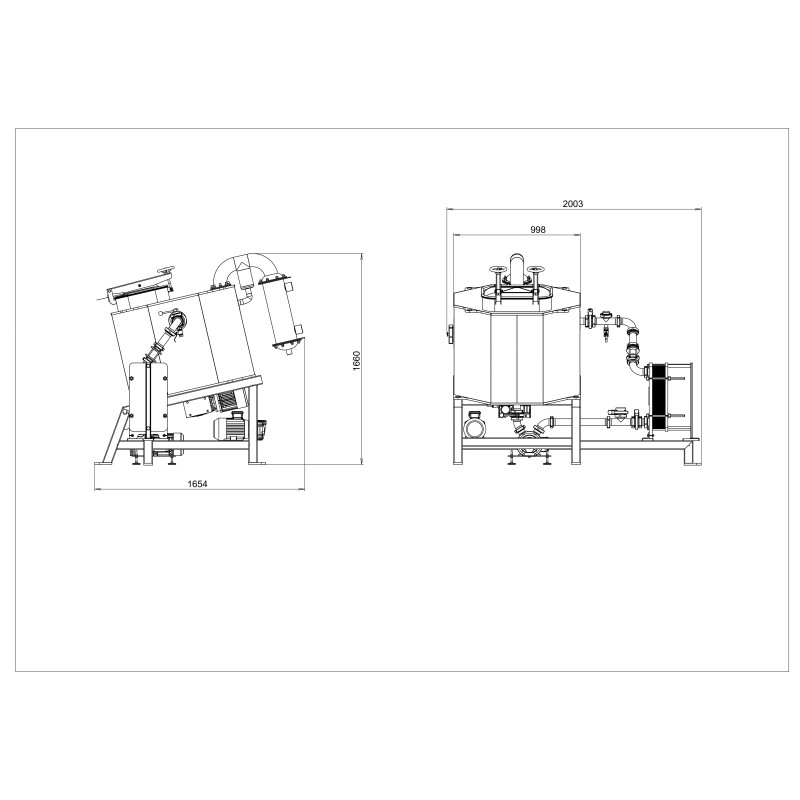

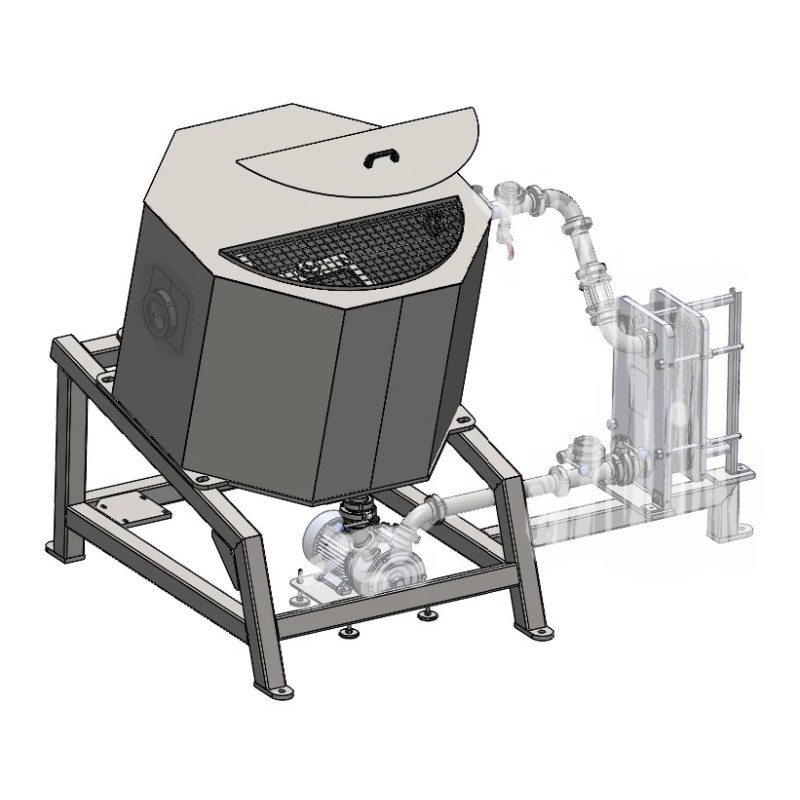

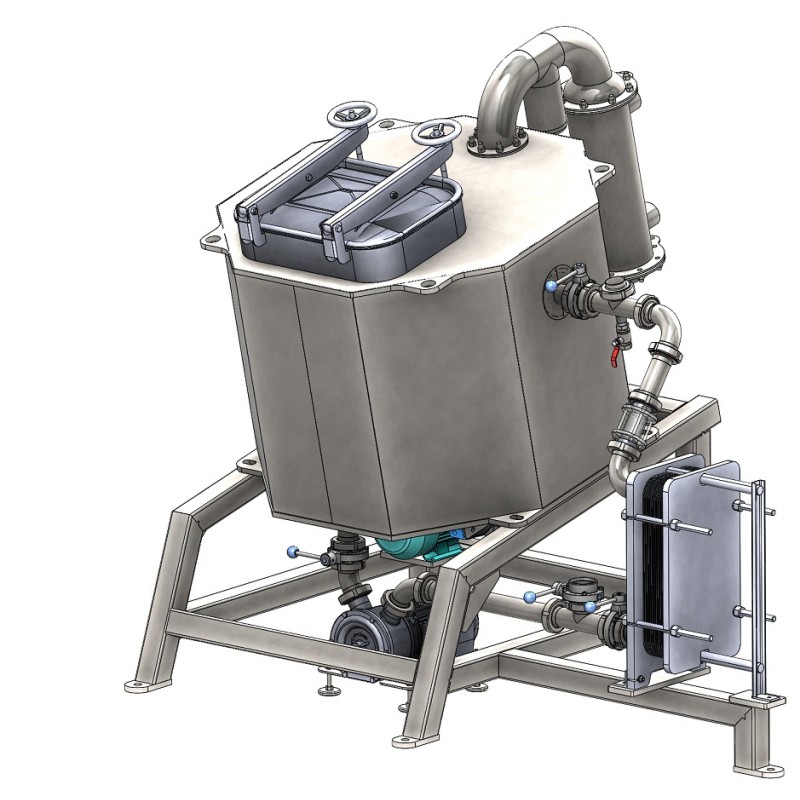

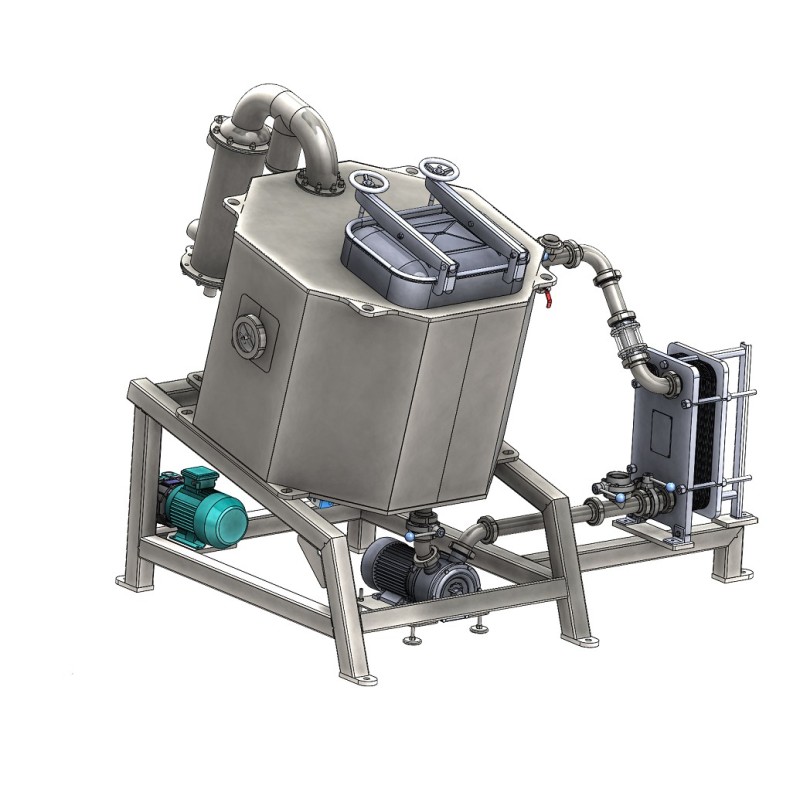

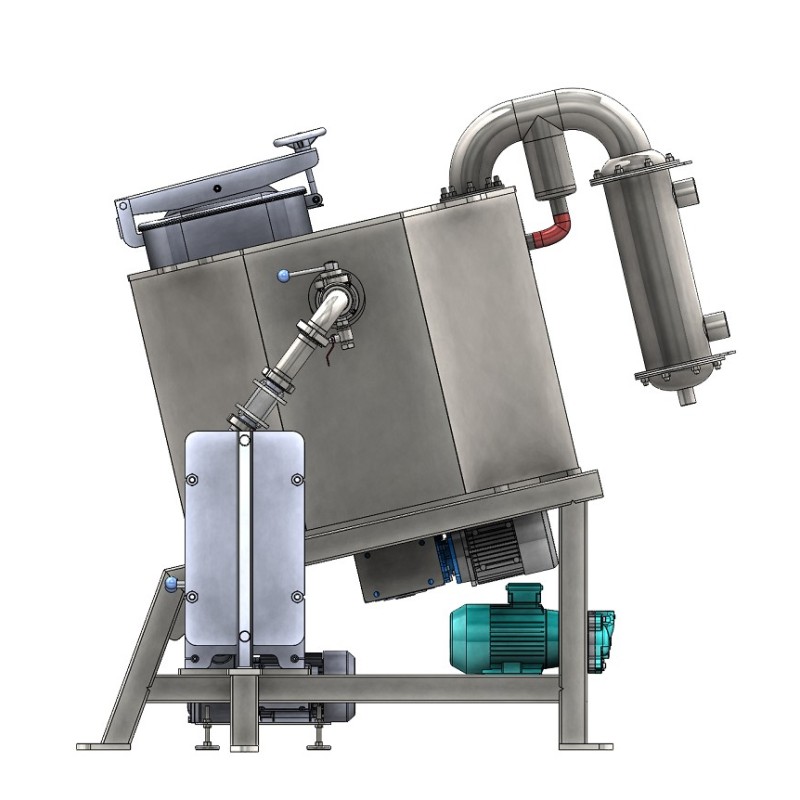

Vacuum processing tank with mixing 50L - 1800L
The vacuum cooking and mixing tank is used to boil products at low temperatures, which helps preserve the natural color, taste and nutrients in the product.
Vacuum equipment is used for cooking premium-quality jams, sauces, fruit and vegetable concentrates.
- Inclined design
- Efficient emptying
- High hygiene standards
A vacuum cooking tank is an excellent solution for processing various products under vacuum.
A large number of products can be processed using this cooking equipment:
|
|
|
|
|
|
|
|
Advantages:
- Inclined design
- High hygiene standards
- The unit is made entirely out of AISI304 stainless steel
Vacuum units of this type allow several processes to be performed: thermal treatment under vacuum, deaeration and more. Processing products under vacuum allows for the production of a higher-quality product, since at lower processing temperatures the natural color, taste, and aroma of the product are preserved.

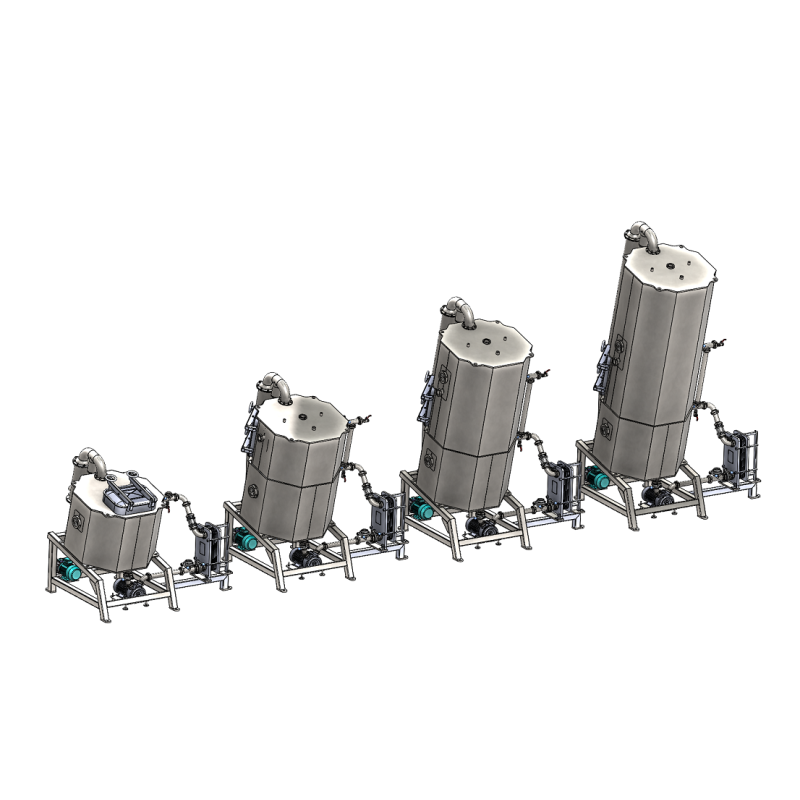

The variety of available volume options allows for the selection of a unit suitable for each specific required production capacity.
The basic version includes:
- Working tank
- Vacuum generator
- Condenser
- Material: Stainless steel
- Principle of operation: Batch mode
- Type of the equipment: Individual machine
- Country of origin: Slovakia
These meat tumblers are designed for removing air and drawing moisture and marinade into the meat under the conditions of a vacuum.
- Material: Stainless steel
- Principle of operation: Batch mode
- Volume: 600l/ 900/ 1200l/ 2000 3000
Equipment for mixing multi-component mixtures of products, such as vegetable salads with various dressings, including thick and viscous ones like mayonnaise, thick sour cream and other similar sauces.
- Hydraulic tilting system is included in the basic version
- The controls are located directly on the frame supporting structure
- Eccentrically offset working shaft for rotating/tilting the working tank
- Low loading height
- The installation is made entirely out of food grade stainless steel
- Material: Stainless steel
- Operation mode: Semi-automatic
- Principle of operation: Batch mode
- Country of origin: Slovakia
- Volume: 600l/ 1000l
Barrel mixers are used to mix a wide range of loose and granular products in a shipping/barrel container. The available mixer models are suitable for the following volumes:
ConMix 20 - 20-30 liter standard drums with a diameter of 316 mm, adjustable frame structure height
ConMix 75 - 48-65 liter standard barrels with a diameter of 400 mm, adjustable frame structure height
- It is possible to use standard food containers ranging from 20-65 liters
- Easy control via a frequency converter as a stand-alone control panel
- Safe operation thanks to a roll bar with a position sensor
- Engine power, kW: 0,37/ 0,55/ 1,1
- Volume: 20l/ 75/ 100l
Meat tumblers are designed to remove air and draw moisture and marinade into the meat under vacuum conditions.
- Material: Stainless steel
- Principle of operation: Batch mode
- Volume: 300l/ 600l/ 900/ 1200l/ 2000 3000
These meat mixers are characterized by their modern design and strong AISI 304 stainless steel construction.
- Material: Stainless steel
- Principle of operation: Batch mode
- Volume: 50l/ 110 l/ 163 l/ 250l/
The cooking boiler is equipped with a jacket for heating as well as a heating system, an electrically driven stirrer (with a geared motor) and Teflon scrapers, which allow for the processing of products with low to medium viscosity. The cooking device is also equipped with a vacuum system.
- Productivity: 100l
- Material: Stainless steel
- Operation mode: Automatic
- Principle of operation: Batch mode
- Type of the equipment: Individual machine
Mixers are carefully designed, constructed and tested to handle a variety of industrial applications that require mixing, dispersive mixing, distributive mixing and more.
- Material: Stainless steel
- Country of origin: Slovakia
- Voltage: 380-400V
- Geometric volume: 500 l
Suitable for mixing a small amount of dough or meat as well as other thick mixtures.
- Material: Stainless steel
- Engine power, kW: 0,55
- Principle of operation: Batch mode
- Volume: 10l/ 20l
The industrial mixing and homogenizing equipment is well-suited for small and medium-sized production enterprises engaged in the processing of food, cosmetics, and various chemicals.
- Material: Stainless steel
- Principle of operation: Batch mode
- Country of origin: Slovakia
- Working volume: 300 l
- Material: Stainless steel
- Principle of operation: Batch mode
- Country of origin: Slovakia
The home cheese making unit is a simple and compact solution for producing homemade cheeses right in your kitchen or for small-scale food production, it can also be used as a laboratory unit for testing new cheese recipes in industrial factories. The unit is designed for processing milk and producing various cheeses and cheese-based products.
- Options to choose electric or gas heating (additional options)
- Special stirrer for automatic mixing, which prevents possible burning of milk
- Visual control during operation thanks to a special safety grid on the upper sectional opening hatch
- Quick-release lid with a stirrer for easy unloading of the product or cleaning of the unit
You can also choose a version of the cooking kettle with a thermometer and an outlet valve, making it suitable for milk pasteurization as well.
- Material: Stainless steel
- Volume: 50l/ 100l/ 150l
- Voltage: 220-230V
- Diameter, mm: 400/ 500/ 600
The new design of the universal cutter with gravity mixing is used for the production of thick and pasty products. The cutter is designed to carry out production processes such as cutting, mixing, crushing and emulsifying of various types of products to a liquid state. Thanks to the built-in duplicator, it can also be used as a device for the production of cream honey or cream honey soufflé.
- Cutting knives with a powerful 11 kW electric drive
- Frame mixing device with fluoroplastic scrapers
- Hatch opening sensor for safe maintenance
- Plexiglass hatch for visual inspection
- Duplicator for the thermal liquid around the bottom as well as the walls of the installation
- Inclined design for efficient grinding, homogenization and discharge of thick and viscous products
- Material: Stainless steel
- Principle of operation: Batch mode
- Country of origin: Slovakia
- Volume: 300l
- Total power, kW: 12
- Voltage: 380-400V
The 60W / 250W Mixing lid transforms a standard 50-liter pot into a fully functional mixing unit. It is ideal for production processes involving low-viscosity products, requiring automatic, continuous, and uniform heat distribution via a mixing device, as well as creating and maintaining a homogeneous mixtures without intensive mechanical action.
- Efficient 60W or 250W drive for liquid and semi-liquid products
- Asymmetrical anchor-type stirrer for uniform internal product circulation
- Basic version includes a safety grill on the mixer lid
- Easy-to-remove, sectional-opening lid with a handle
- Simple and secure attachment of the lid with a stirrer to any pot with handles
- Materials in contact with the product are made entirely out of food-grade stainless steel
- Visual, safe process control thanks to the safety grill
- Ideal for equipping 400mm vessels with an automatic stirring system.
- Material: Stainless steel
- Engine power, kW: 0,06/ 0,25
- Country of origin: Slovakia
- Diameter, mm: 400
This versatile 300 liter planetary mixer is a professional food processing equipment used for mixing, kneading, and blending ingredients in various culinary applications. It features a unique mixing action where the beater rotates on its axis while also revolving around the bowl, ensuring thorough and consistent mixing of ingredients.
Vacuum paddle mixers are designed for fast and precise mixing meat-mass in a vacuum. Used in meat production in meat processing factories.Â
- Material: Stainless steel
- Principle of operation: Batch mode
- Volume: 150l/ 200l/ 300l/ 400l/ 600l/ 850/ 3000
An evaporating unit is utilized to remove moisture from sweet substances through heating, transforming them into concentrated syrups or solutions.
- Material: Stainless steel
- Heating power, kW: 30
- Principle of operation: Batch mode
- Country of origin: Slovakia
- Voltage: 380-400V
- Geometric volume: 200 l
