Stainless steel mesh basket for cooking kettles 50–100L
The stainless steel mesh basket is designed for use inside large cooking kettles and vessels for cooking, blanching, boiling, frying, pasteurization and other food processing operations. The perforated construction allows liquid or cooking oil to circulate freely around the product while making it possible to lift and remove the processed batch quickly from the vessel.
- Suitable for cooking, blanching, boiling, frying, pasteurization and similar applications
- Large perforations allow effective circulation of water, oil, and other processing liquids
- Easy removal of the entire batch from the cooking vessel
- Made from durable food-grade stainless steel
- Designed for use with 50 L cooking kettles and compatible vessels
The stainless steel mesh basket is a practical accessory for cooking kettles and large processing vessels, allowing food products to be processed directly inside the heated water or oil and then removed from the vessel as a complete batch.
The basket is manufactured from food-grade stainless steel and features relatively large perforated openings. This construction provides good circulation of water, oil, or other processing media around the product while retaining larger food pieces inside the basket.

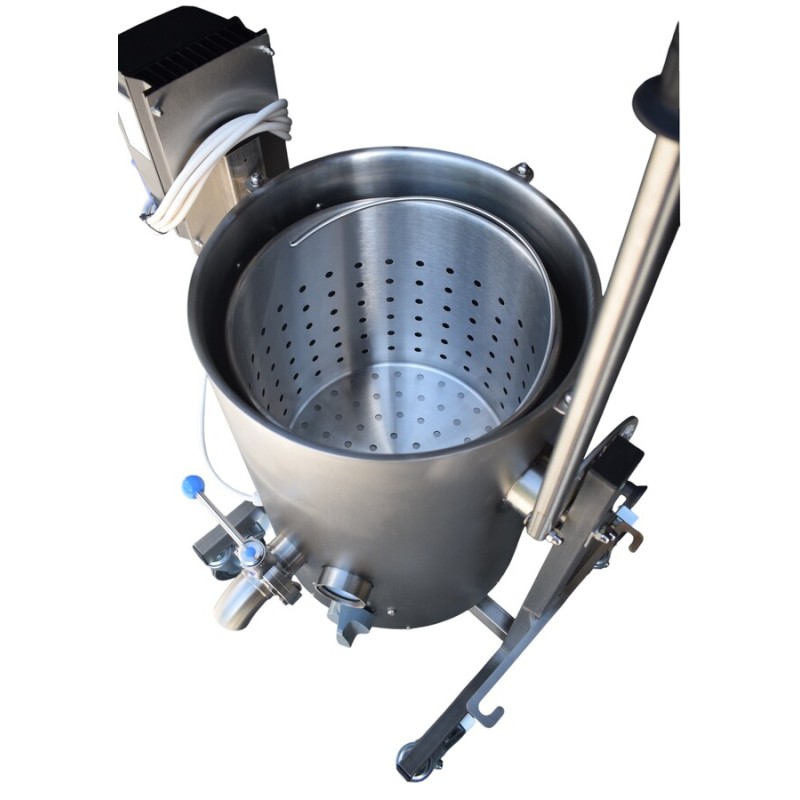

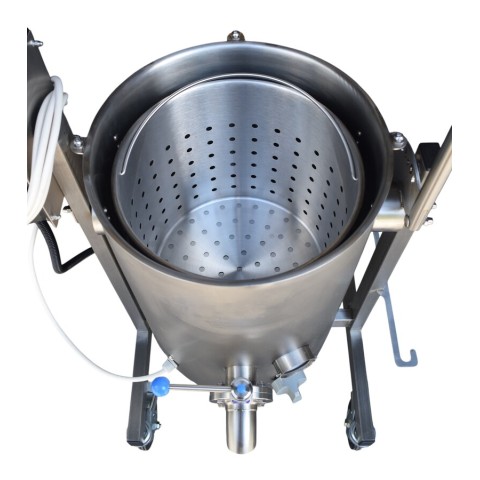

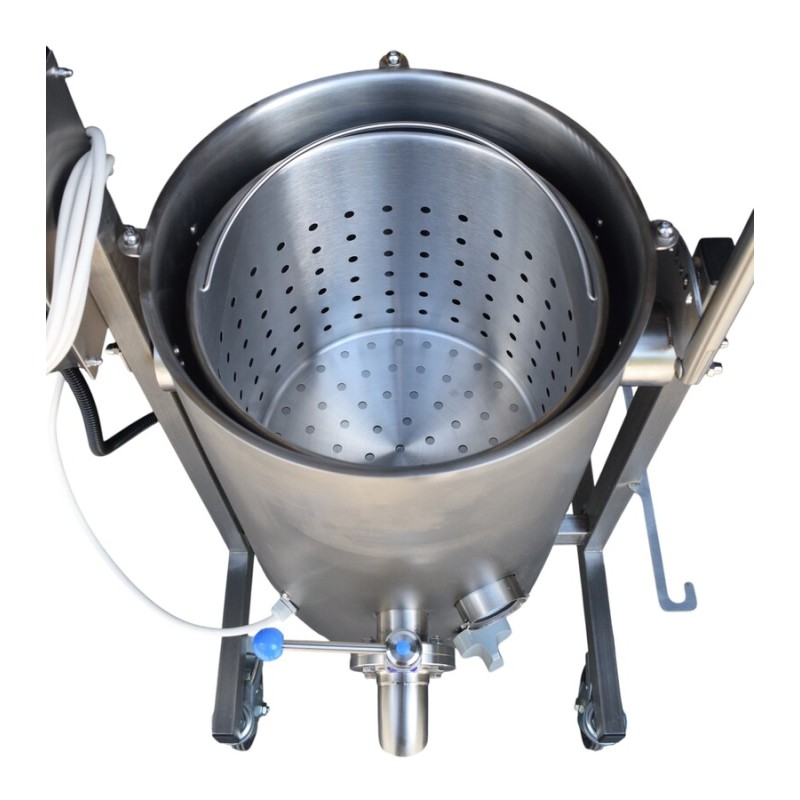

During operation, the basket is placed inside a suitable cooking kettle and filled with the product to be processed. After cooking or other thermal treatment is complete, the basket can be lifted from the vessel, allowing the liquid or oil to drain through the perforated walls and bottom. This simplifies unloading and can reduce the amount of manual handling required when transferring the processed product.
The basket can be used for a wide range of applications, including:
- Cooking and boiling meat, vegetables and other food products
- Blanching vegetables and similar products

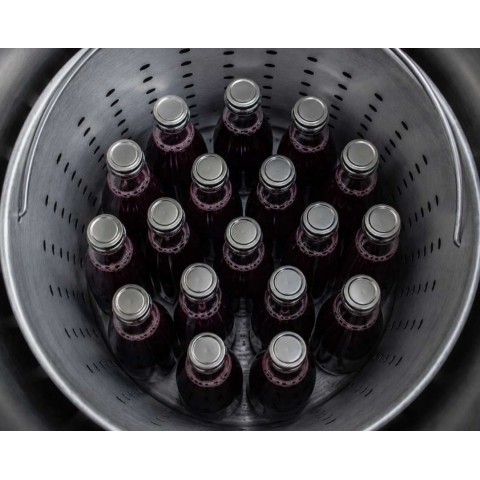

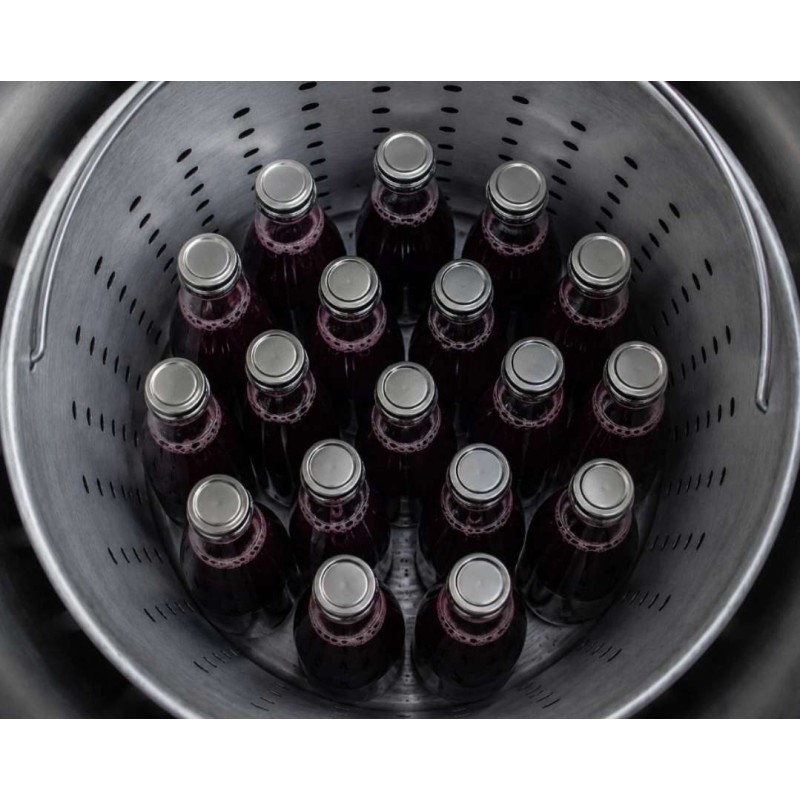

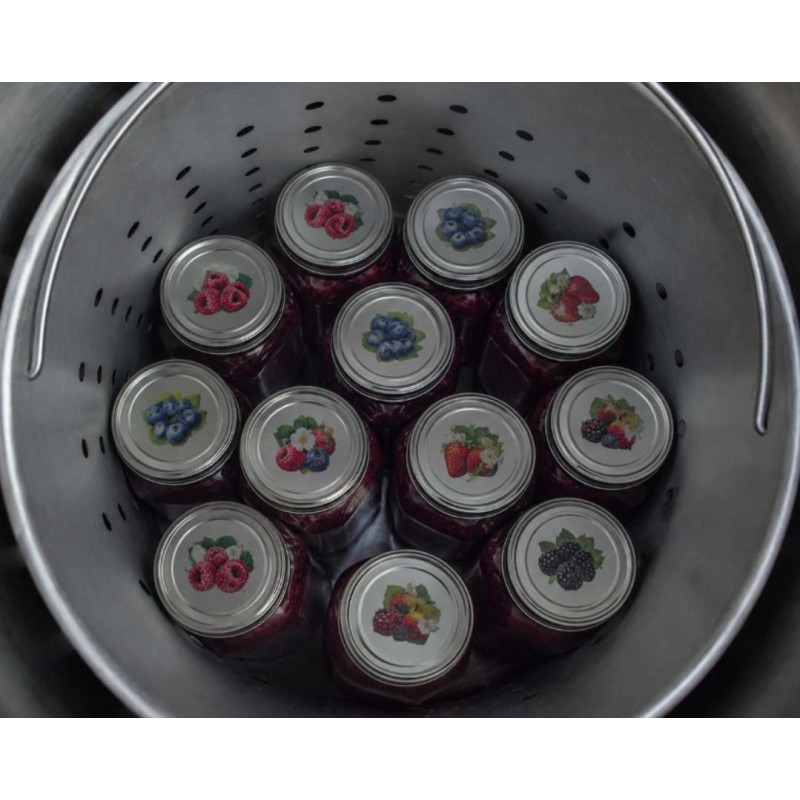

- Pasteurizing jars and cans placed into the basket
- Deep frying larger food pieces
- Heating or cooking products in water or other liquid media
- Removing products from cooking kettles while allowing excess liquid or oil to drain
The basket is particularly useful when combined with our CookMak Mix tilting cooking kettles, providing a simple way to load, process, remove and drain batches without having to manually scoop the product or jars from the working vessel.
The baskets are designed for use with 50 L and 100 L cooking kettles and vessels with approximately 400 mm and 500 mm internal diameters, respectively.
Technical specifications
- Material: Food-grade stainless steel
- Material thickness: 8 mm
- 50 L version dimensions (W × D × H): approx. 395 × 405 × 405 mm
- 100 L version dimensions (W × D × H): approx. 500 × 495 × 500 mm
- Compatible vessel diameter: 400 mm for 50 L kettles / 500 mm for 100 L kettles
- Construction: Perforated stainless steel mesh basket
Advantages
- Easy batch handling: The entire processed batch can be lifted from the cooking vessel at once, simplifying loading and unloading.
- Effective liquid circulation: Large perforations allow water, oil, and other processing liquids to circulate freely around the product.
- Fast draining: When the basket is lifted, excess cooking liquid or oil can drain through the perforated construction.
- Versatile processing: Suitable for cooking, blanching, boiling, frying, and other applications requiring immersion in a heated liquid or oil.
- Food-grade construction: Manufactured from stainless steel suitable for food processing applications.
- Easy cleaning: The open perforated construction allows convenient access to the basket surfaces during cleaning.
- Suitable for cooking kettles: Designed as an accessory for use with compatible FoodTechProcess cooking kettles and other large food processing vessels.
