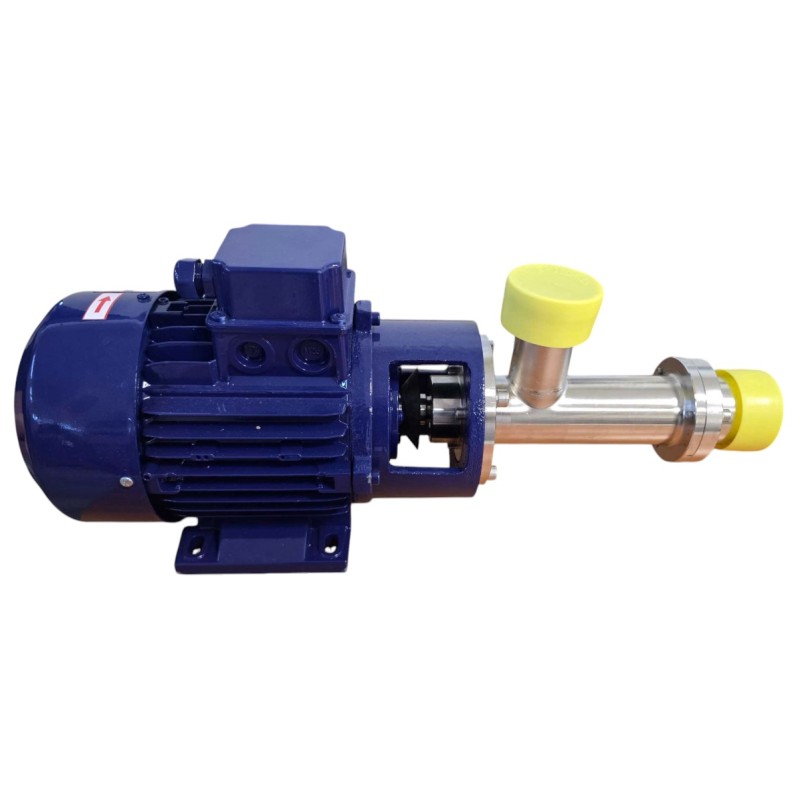

Pump for liquid products
The pump provides a delicate straight-streaming pumping of a wide range of liquids with or without solid fragments with viscosity up to 150 Pa.s.

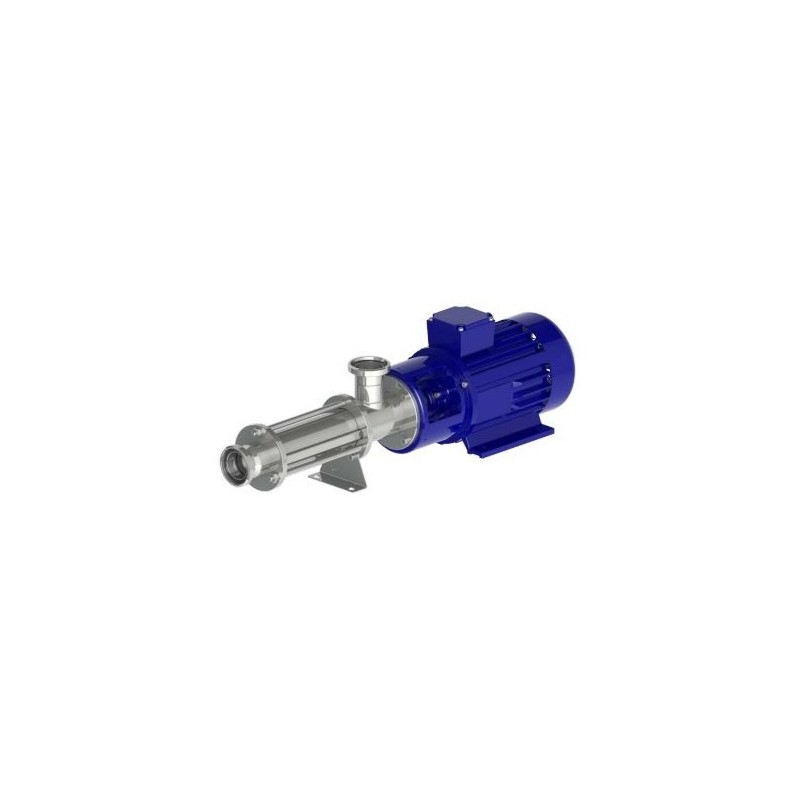

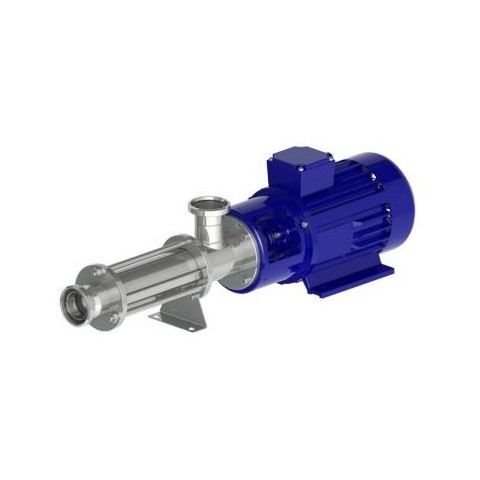

The screw pump is designed for a delicate straight-streaming transport of a wide range of liquids with or without solid fragments with a viscosity of up to 150 Pa.s.
The pumps suck from depth up to 6 meters under their own level. Their constructions allow reversible depending on the direction of the electric motor.
Advantages:
- Block pump – directly joined to the shaft of the electric motor.
- Standing on the heels of the electric motor.
- Material AISI 304/ EPDM
- Standard Inlet / Outlet: male union joints DIN 11851
- Optionally: Block pump with protective eccentric cover on the engine
Specification:
- Capacity: Q= 1.5 m³/h
- Pressure/Head: H= up to 6.0bar
- El.motor: P = 1.1 kW
- Inlet/Outlet: Dy 40/Dy 40
- Material: AISI 304, NBR
Optional modifications:
- * with double wall for cooling/heating
- * with double mechanical sealing
- * mounted on a trolley with Starter
- * by-pass with safety overflow valve
- * gear-motor
- * variable-speed drive
- Material: Stainless steel
- Engine power, kW: 1,1
- Principle of operation: Continuous mode
Screw pump
