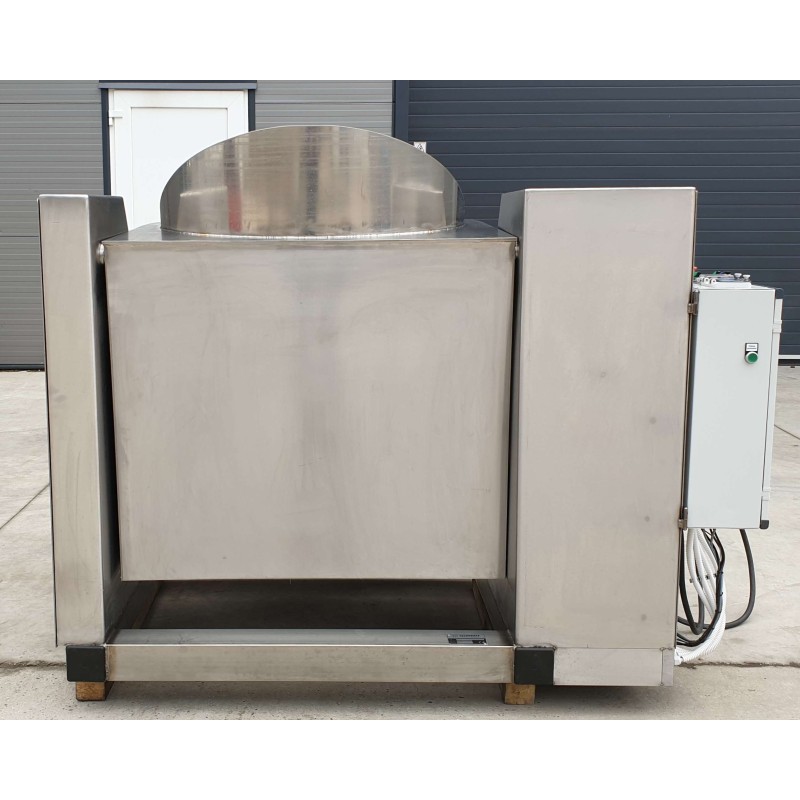

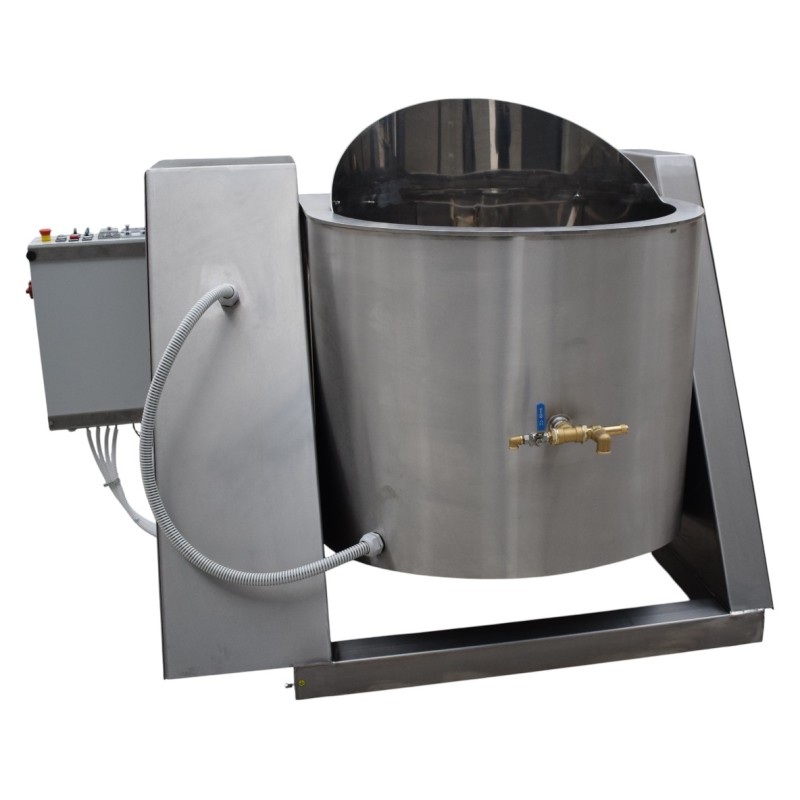

Universal cooking kettle with hydraulic tilting 250
Universal cooking kettle with a built-in steam generator up to 0.5 bar, frame stirring device and an automatic tilt and unloading system is a convenient and safe solution for processing various liquid products in large volumes.
- Safe design with a jacket (duplicator) and outer casing with insulation
- Intensive steam heating through the jacket using the built-in electric steam generator
- Automatic multi-stage tilt and unloading system
- Frame stirring device for dissolving, mixing, kneading ingredients
- Unloading of the product into rolling carts is possible due to the offset tilted axis
Cooking kettle with a stirring device, built-in electric steam generator and a hydraulic tilting system for the working tank, equipped with steam heating through the jacket, which allows for intensive and effective heating of the product in the working container. Suitable for the heat treatment of a wide range of products, for processes such as cooking, blanching, dissolving, melting, boiling and much more!
A steam cooking kettle with an automatic tilting system and a frame mixing device - is a universal solution for food production at commercial scale.
Advantages
- Safety system: pressure relief valve, external decorative casing with insulation, automatic tilting and unloading system with end position sensors, temperature sensor in the jacket and much more!
- Efficient heat transfer without blind corners and zones. Intensive heating through the built-in electric steam generator.
- Reliable, durable and compact stainless steel support structure, inside which an automatic tilting and unloading system is installed. Using the automatic tilting system, it is possible to easily, safely and quickly change the working position of the working container using a joystick.
- A special form of a frame mixing device with transverse blades installed at an angle, which helps to increase the efficiency of mixing, stirring, kneading ingredients, as well as dissolving powder or crystalline elements.
Basic version
Universal cooking boiler with hydraulic shifting - refers to an atmospheric batch food cooking tank of periodic action with a heating "jacket", a built-in electric steam generator, a hydraulic system for tilting the working container to unload the product, a special frame mixer with a drive. The control includes a temperature controller, control of the automatic tilting system, optionally a frequency converter can be installed to adjust the rotation speed of the mixing device.
Options
- Frequency converter for the mixing device
- Heating: Mixed
- Material: Stainless steel
- Country of origin: Slovakia
- Total power, kW: 13,5
