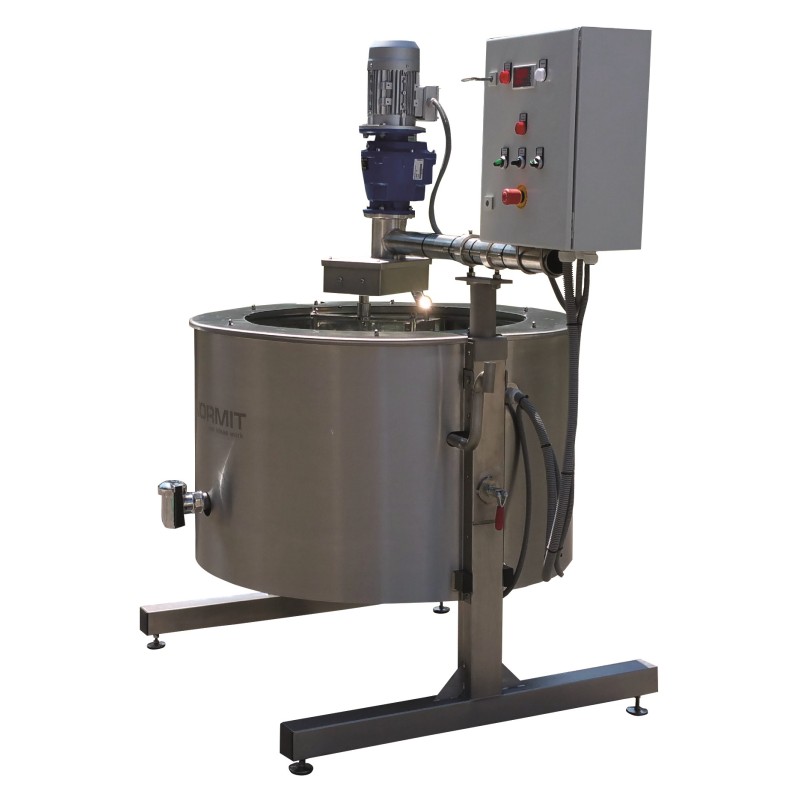

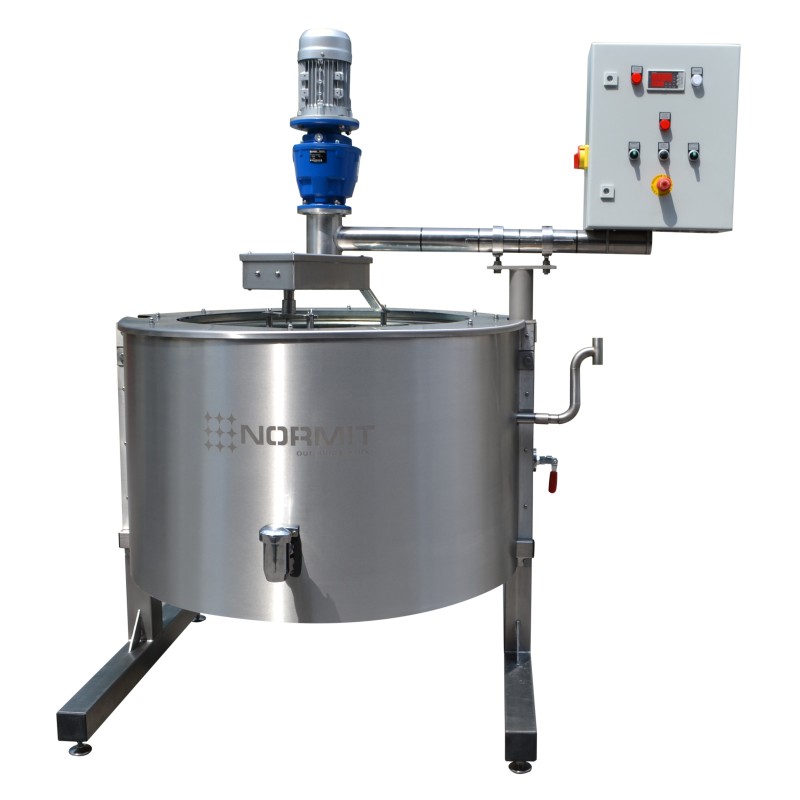

Cheese vat 300 l
The cheese boiler is used in the dairy industry for the production of cheese grains during the production of natural hard, semi-hard, soft cheeses, and other cheese or curd products. The cheese maker is equipped with a special knife-mixer (lyre) for cutting the cheese curd. Suitable for both small and large scale production. Using this cheese-cooking boiler you can also pasteurize other dairy products, produce yogurt, cottage cheese kefir, fermented baked milk, varenets, sour cream and more.
The cheese boiler is designed for the heat treatment (heating and cooling) of dairy products, preliminary pasteurization of milk and subsequent production of cheeses.
Products that can be produced:
|
|
|
|
|
|
|
|
|
Advantages:
- Made out of stainless steel
- Multifunctional equipment that can heat, cool and cook
- Planetary mixing device with three special knives for cutting cheese curd (type - lyre)
- The design of the cooking boiler eliminates bacterial contamination from the outside and reduces the cost of heating the product.
- Easy maintenance and cleaning of the device
- Obtaining the most uniform size of cheese grain
- Possibility of individual adjustment of processing parameters during the production process
Basic version:
The cheese kettle with electric heating includes an open-type working tank mounted on a frame, equipped with a heat-insulating heating and cooling "jacket", 5 heating elements, a water level sensor in the "jacket", a product temperature sensor, a stirrer overheating sensor, and a stirrer with a drive on which 3 harps are mounted.
Operating principle:
The operating principle of the device is based on the thermal treatment (heating / cooling) of the product while also mixing it with a specially shaped stirrer with 3 harps for the production of cheese grain. The product is fed through the working opening from above. Unloading is carried out through the outlet.
Technological processes:
The following processes can be performed on this equipment:
- cooking
- heating
- mixing
- stirring.
Technical data:
- Working volume, l - 300
- Stirrer drive power, kW - 0.55
- Heating system power, kW - 20 (4x5)
- Maximum heating temperature, °C - 85
- Material - AISI304*
- Three-phase voltage:
- Voltage, kW - 400
- Frequency, Hz - 50
- Height, mm - 2000
- Width, mm - 1350
- Length, mm - 1900
- Weight, kg - 290
*- When manufacturing equipment components that do not have direct contact with the product, it is permissible to use parts made out of carbon steel.
- Material: Stainless steel
- Operation mode: Automatic
- Principle of operation: Batch mode
- Country of origin: Slovakia
- Working volume: 300 l
