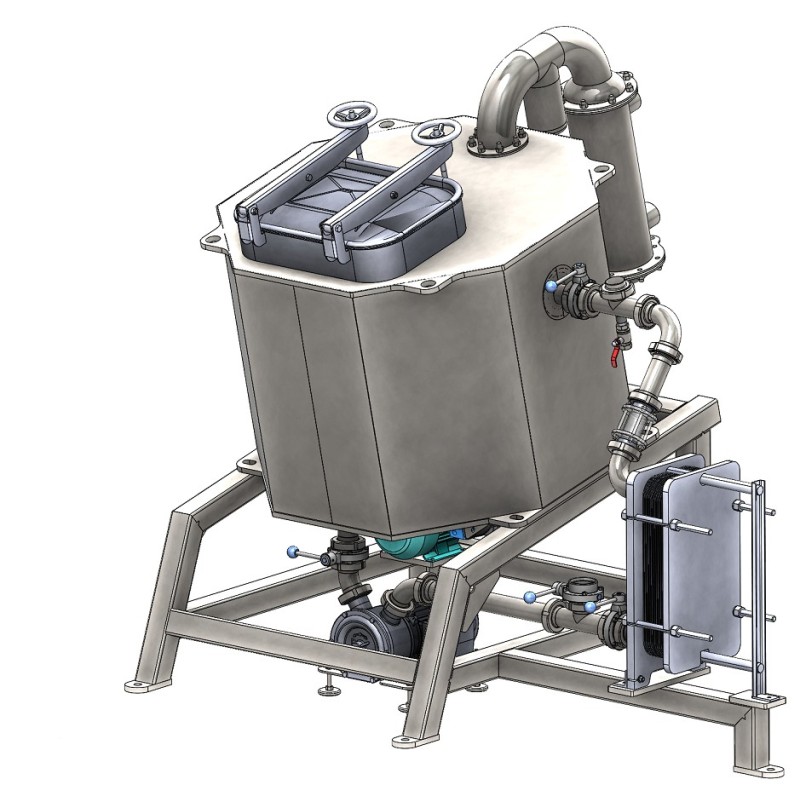

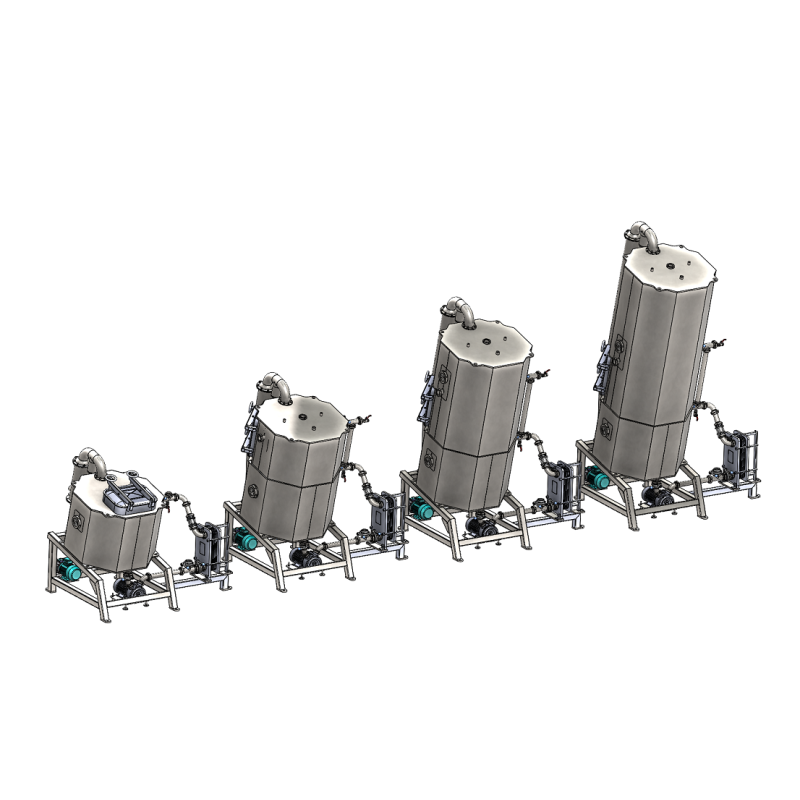

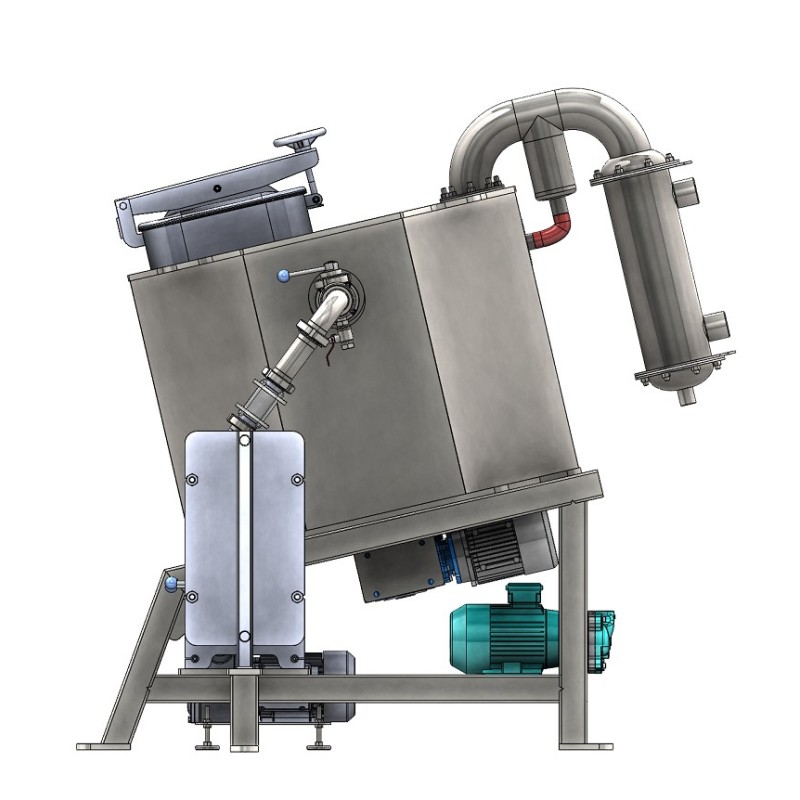

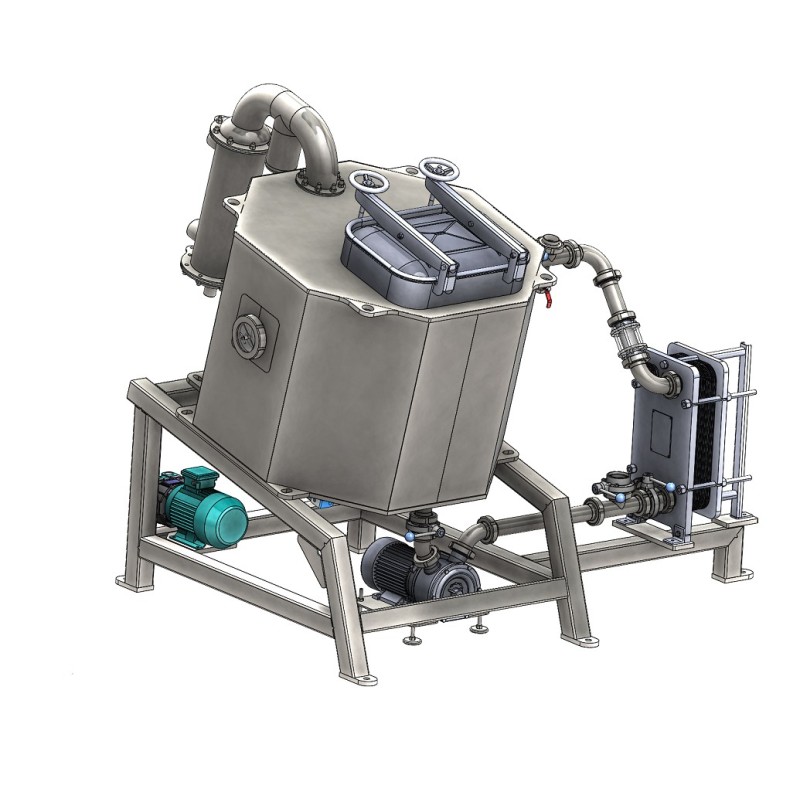

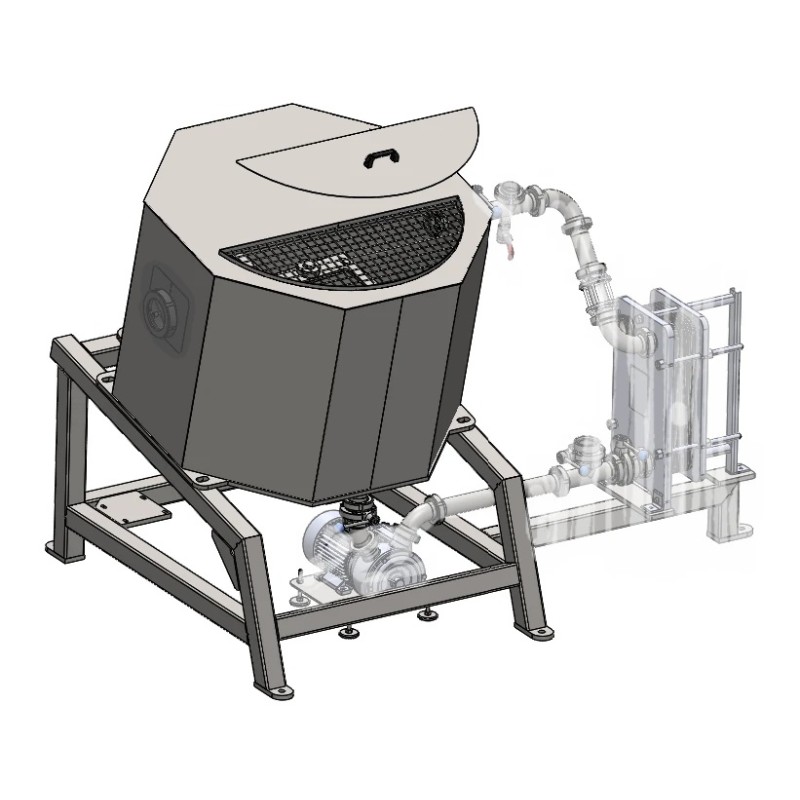

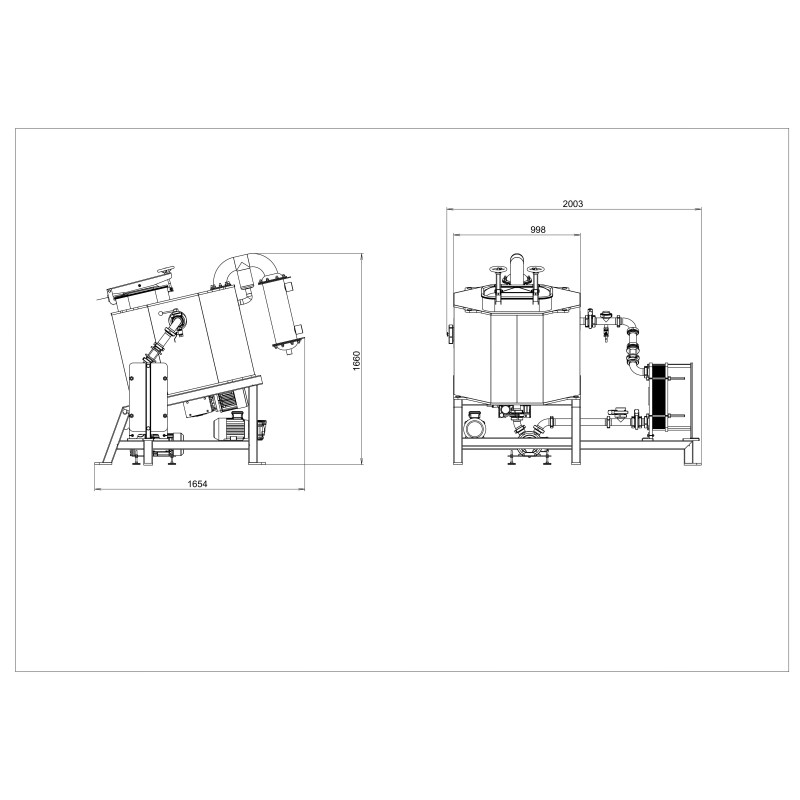

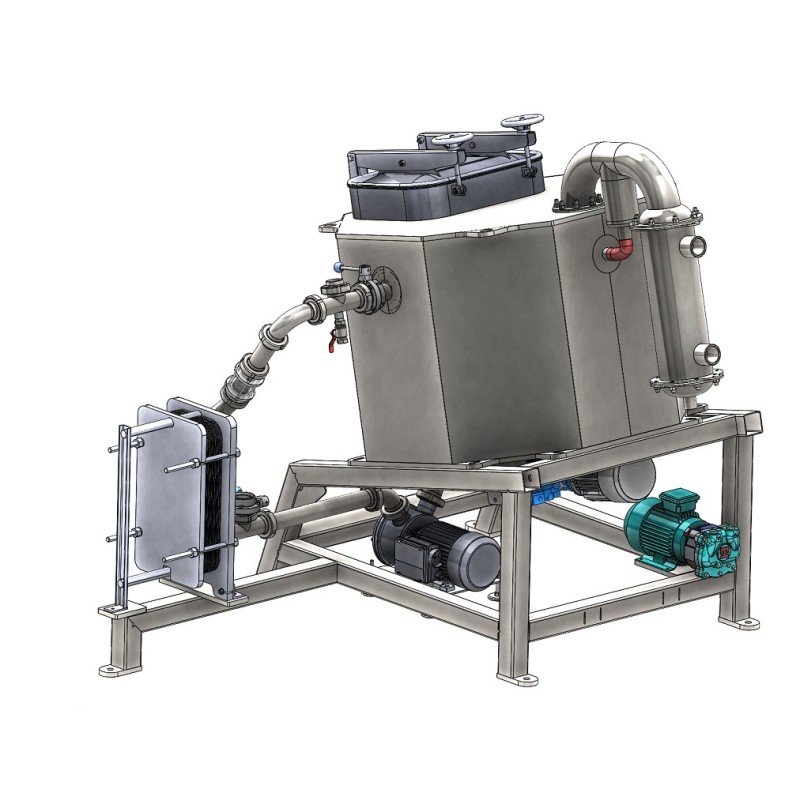

Vacuum processing tank with mixing

The vacuum homogenizer with an inclined design is designed for processing and manufacturing a wide range of liquid, pasty and viscous products with different requirements for their production conditions and other products including those with a high viscosity.

The price is set for the basic version of the reactor without additional options and the control panel

The vacuum vessel with a coolant duplicator and a mixing device is a universal solution for processing various products at sub-atmospheric pressure. Based on this simple device, you can select and modulate it into complex installations such as a vacuum evaporator, a vacuum cooking kettle, and a unit for the production of cream honey.

• Sloped Design - Gravity Mixing
• Bottom valve DN40 included in the basic version
• Small-volume duplicator - low costs for coolant heating/cooling
• Modular system: customization of the equipment and its functionalities by ordering additional options
• An easy to disassemble mixing device

The price is indicated without the frequency converter

A twin-screw mixer for fast and intensive mixing, stirring of bulk solid products, such as granules, muesli with various powder additives.

• The mixing blades carefully move while thoroughly mixing the product
• The mixing mode allows you to move the product cyclically in a circle
• High mixing efficiency due to the counter-movement of the 2 shafts
• Compact design
• Possibility to install scrapers on each blade (optional)
• Reinforced drive, can be used for products saturated with moisture as well

The cooking boiler is equipped with a jacket for heating as well as a heating system, an electrically driven stirrer (with a geared motor) and Teflon scrapers, which allow for the processing of products with low to medium viscosity. The cooking device is also equipped with a vacuum system.

A detachable lid with an automatic food stirrer for stainless steel 40 cm pots, suitable for volumes of 50 and 100 liters. An automatic stirrer allows you to mix and stir various products, including during thermal processing. The type of mixing device can be additionally selected depending on the required process.

• Professional industrial single-phase motor for 220-230 Volts
• The control is located directly on the motor housing or on the drive cable
• Easy and simple installation and fixation of the lid on the pan
• Suitable for standard 40 cm pots with a capacity of 50 or 100 liters
• The lid and stirrer are made entirely out of stainless steel

The Z-Sigma Arm paddle mixer is designed for intensive mixing, stirring, kneading and plasticizing products with high and very high viscosity, such as chewing gum base, stiff dough with low water content, toffee mass, soap base, adhesives.

• Double Z-shaped blade
• Very high shear force
• Minimum gap between z blades and the working container
• Independent electric drive for each blade
• Electric tilting for automatic unloading up to 180 degrees
• The mixer is made entirely out of food grade stainless steel AISI304
• Possibility to choose the side of tilting and unloading

The KWS mixing vessel is engineered for versatile operations, including heating, cooling, and mixing of liquid products, with a maximum heating temperature of 60 °C.

The price is indicated for the basic version of the set of equipment with a homogenizer

The equipment for the production of ice cream mixtures is based on a universal vacuum reactor with a coolant jacket and a multi-stage dispersant/homogenizer in an external circulation loop.

• Special type of a stirring device for easy disassembly and cleaning
• Processing with minimal product loss
• The bottom outlet valve is included in the basic version of the installation
• Multi-stage disperser for intensive wetting and homogenization of the flowing mixture
• External circulation circuit with a three-way valve for operation/washing of the equipment
• Reinforced agitator drive for thick and viscous mixtures
• Built-in vacuum pump

Tilting atmospheric cooking kettle is designed for homogeneous cooking and mixing of sauces, smoothies, jams, spreads, soups, pasta, yoghurts, ice cream, curd desserts, mousse, air confectionery masses, pastry cream, fillings for sweets, waffles, rolls, chocolate, gingerbread, cookies, muffins, rolls, pastilla, marshmallows, meringues, marshmallows, brewed dough, sponge cake.

For a price quote, send us a request.

Round cooking boiling pan combines together the advantages of cooking with automatic mixing. Designed for catering industry, school kitchens, restaurant kitchens or food industry. Capacity ranges from 100l to 500l. The available heating options are - steam boiling or indirect electric heating.

Used in chemical, construction, cosmetic or food industries.

A spiral mixer with a fixed bowl and an electronic control panel. Available in various different capacities.

Professional cooking boiler with a stirrer for particularly thick and viscous products. An excellent technical solution for the production of caramel, syrups and sugar paste for sugaring. The heating source is selected separately.

• The kettle can be used on all types of cooking surfaces, including induction
• The basic version has easily removable, self-aligning stainless steel scrapers
• High torque of the stirrer with 14-18 revolutions per minute
• Professional 3-phase industrial motor
• The stirrer is turned on independently using a remote control with IP66 protection, connected to the boiler using quick-release connectors
• The unit can be connected to a 220-230 volt network even with a 3-phase motor!

The price is indicated with a semi-automatic control panel

The vacuum cooking kettle is designed for use in public catering establishments (restaurants, hotels, catering companies) and small manufacturing businesses. This equipment enables boiling, blanching, frying, evaporation, pasteurization, mixing or stirring.

• A unique multifunctional device
• Possibility to cook/fry under atmospheric or vacuum conditions
• Laboratory version of a Vacuum Fryer
• Built-in condensation and secondary steam removal system
• Intense electric heating
• Sectional basket with a lid
• Built-in system for separating and removing excess liquid from the product

Homogenizer for the production of whipped cream, ice cream, and much more. It allows you to obtain stable liquid emulsions of food mixtures.

• The homogenizer can be installed directly into the container with the product
• High productivity - in just 8 minutes, it is possible to whip up to 60 liters of milk mixture
• The peripheral speed of the knives is 16 m/s

A vacuum cooker is used in the food processing industry to cook ingredients under reduced pressure, typically in a vacuum environment. This method allows for precise temperature control and faster cooking times while preserving the quality and flavor of the ingredients.

We offer different vacuum cookers.
