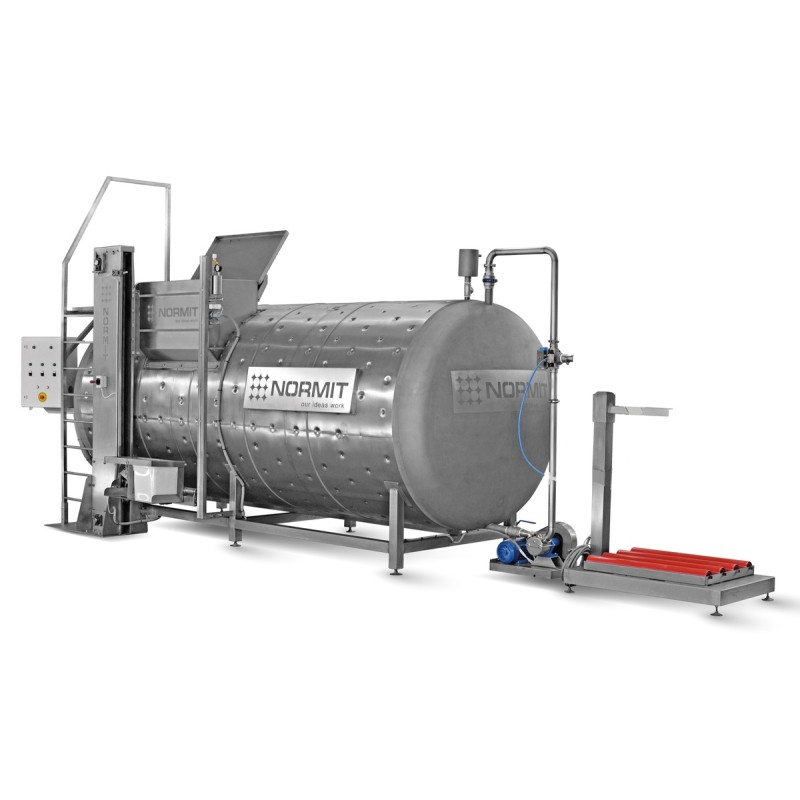

Honey homogenizer HPL
We produce atmospheric honey homogenizers with a batch load ranging from 7500 up to 22 000 kg of honey. The homogenizers HPL are designed for thoroughly mixing, blending, and homogenizing various kinds of honey to improve its qualities.
The price depends on the options you choose.Â
The honey homogenizer is designed for thoroughly mixing and homogenizing different types of honey, improving its user properties and allowing the whole batch of honey to be certified.
Construction features:Â
The honey homogenizer consists of an horizontal cylindrical vessel with a special steam / water heating jacket (0.5 bar) and a screw stirrer.
The heating jacket is constructed as a Pilow-plate that allows the use of pressure (up to 0.5 bar, including tap water), increases thermal conductivity and eliminates the risk of local overheating. The heating jacket is located over the entire cylindrical part of the homogenizer. A hatch is placed on top of the homogenizer to load the product and also to maintain the equipment. The homogenizer is made out of high quality food grade stainless steel AISI 304.
A tilting platform for loading honey from containers into homogenizer.
- The tilting platform is equipped with a hydraulic or pneumatic lifting mechanism
- Made out of food grade stainless steel AISI 304
- 2 containers with a capacity of 23 l
- Time for one load up to 90 seconds.
Technical characteristics:
Advantages:
- The special design of the agitator ensures fast and even mixing of honey, which allows you to have the entire batch of honey certified without problems after homogenizing it
- The efficient heating system with its specially designed jacket ensures rapid melting of crystallized honey. The honey homogenizer can be manufactured in any size according to the customer’s needs
- Hygienic design, with no blind spots that don’t get mixed
- Durable design with minimal maintenance costs, using high quality materials and parts
Options:
Honey filler for wholesale packaging APÂ
The system is based on measuring the weight and then filling the honey into the barrels. The AP Series Tensometric Dispenser is designed for high-performance, semi-automatic bulk packaging of honey. honey filler The dosing device consists of a working platform with a strain gauge measuring system, rollers, a dosing system by means of a pump, piping, valves and control system.
Honey pre-melting grid
Optionally installed on the lid of the homogenizer for pre-melting the honey. Heating is provided by water recirculation. Pre-melting can significantly reduce the melting time and the honey homogenization process.
