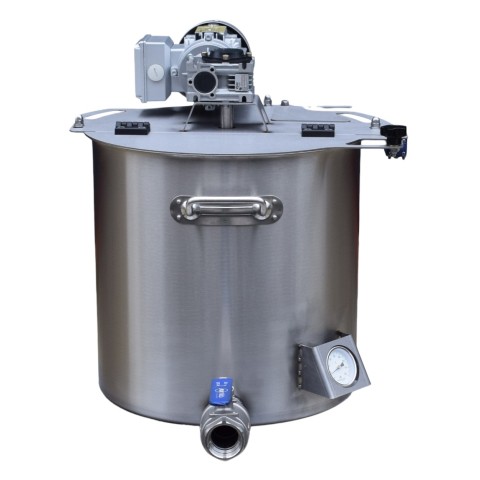

Honey mixing / stirring device 50-150L
The stirrer for mixing and stirring different types of honey comes with a stainless steel container of 50 and 100 liters. It can also be used for mixing honey during blooming, pasteurization, and controlled crystallization (creaming).
- Powerful electric drive and reinforced stirrer for thick products
- Temperature control to ensure that honey does not overheat above 40 degrees during processing
- The mixing device is also equipped with fluoroplastic scrapers
- All materials in contact with the product are made out of stainless steel
An installation for blending - mixing honey of different varieties and types is often necessary before packaging the product. Blending may be associated with the production of new types of products such as polyfloral, herbal and other mixed types of honey. It can also be used for homogenization and obtaining good looking honey with uniform structure and color. This honey is more attractive to consumers.
The honey mixer can also be used in processes such as pasteurization, crystallization, recrystallization, dissolution, or creaming of honey.
Advantages:
- The compact version of the unit is suitable for individual beekeepers, small apiaries, beekeeping, and small-scale production.
- Simple controls, 220-230 Volt mixer, switch installed directly on the drive cable.
- Special reinforced mixing shaft with a professional industrial gear motor.
- Possibility to select the type of mixer depending on the mixing requirements.
- Control the temperature of honey during pasteurization or heating to prevent it from overheating and increasing the amount of HMF (5-hydroxymethylfurfural) in the honey.
- Safe operation, easy handling, and hygienic design: easy to remove the lid and dismantle the stirrer.
- High degree of safety: automatic shutdown of the stirrer when the lid is opened.

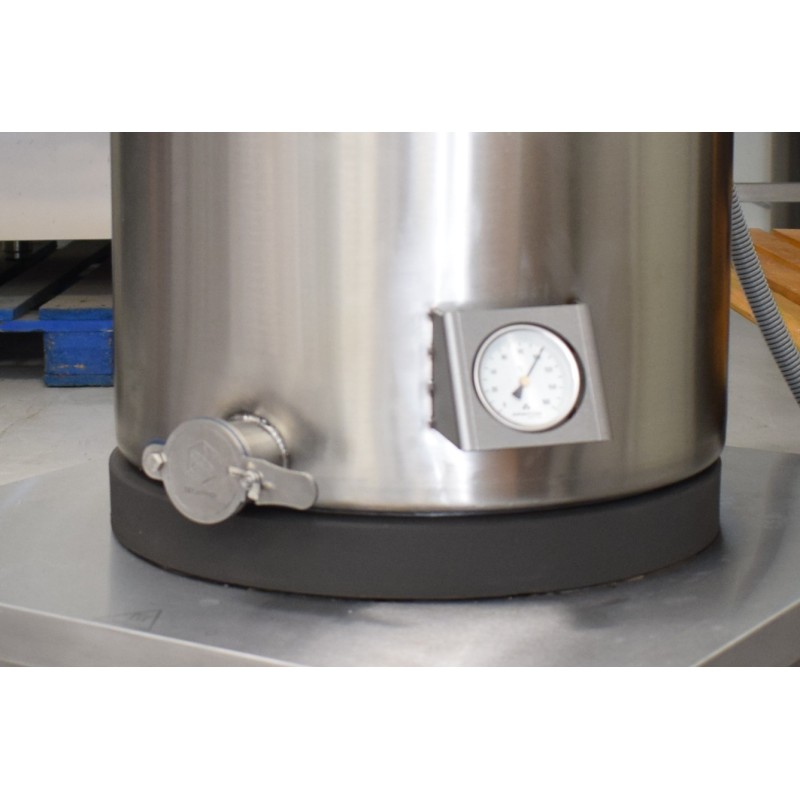

- The outlet tap with a valve is located directly at the bottom of the container, which helps to empty it 100% without losing the product. You can select a type specifically for honey.
Basic version includes
- Stainless steel tank with an agitator and a top quick-release housing
- Sectional hatch on the upper body
- Electric gear motor - stirrer drive
- Lid opening sensor to stop operation
- Mixer with scrapers
- Thermometer
- Material: Stainless steel
- Engine power, kW: 0,18/ 0,25
- Principle of operation: Continuous mode
- Volume: 50l/ 100l/ 150l
- Voltage: 220-230V
- Diameter, mm: 400/ 500/ 600
