Electric milk pasteurizer 50-150L HOBBY
A compact electric pasteurizer with a heating power of 5 kW is used for long-term batch pasteurization of milk, which includes heating milk to a temperature up to 100 degrees C and maintaining it for a selected period of time. The milk pasteurizer can also be used in the form of a Milk pot to heat milk for feeding calves.
- High heating power (5 kW) on a 220 V single-phase connection
- Stirrer with bottom scrapers that prevents milk from burning when directly heated
- Direct electric heating with a multi-stage power switch
- Hygienic design for simple and easy cleaning

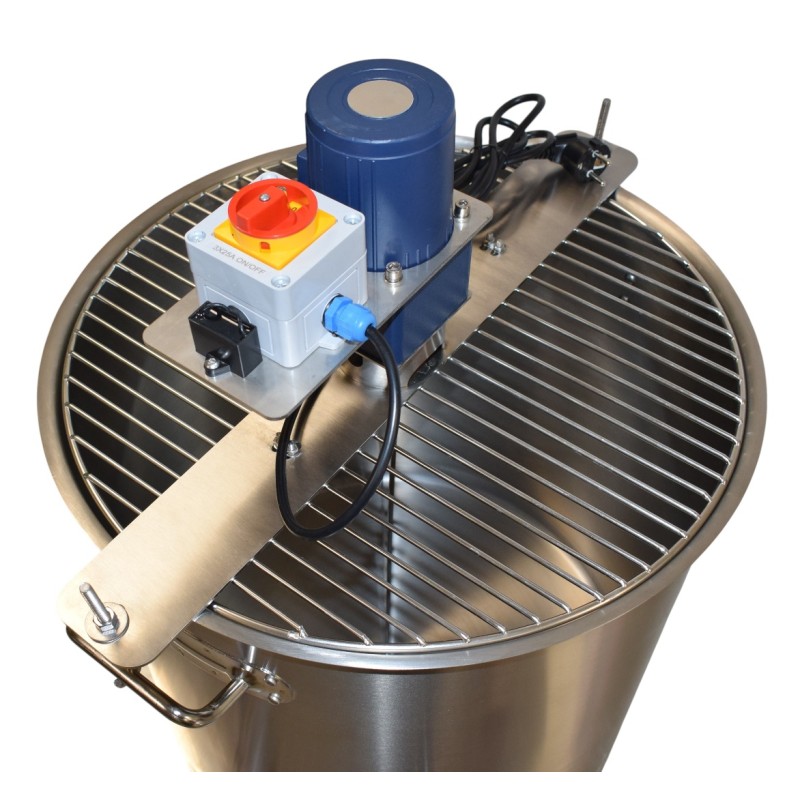

- Simple system for removing and lifting the top hatch with an agitator
- Absence of blind spots where bacteria can grow
Long-term pasteurization baths have always been a classic way to pasteurize milk and are widely used both in small-scale dairy processing, cheese production, and in professional kitchens. By changing the mixer type, the electric pasteurizer can also be used as a cheese cooking kettle.
Due to its small volume and compact multifunctional design, the electric pasteurizer can be used to carry out various processes:
|
|
|
|
Advantages:
- The ability to use the working tank of the pasteurizer without heating: for mixing, stirring or cooling, the mobility and modularity of the installation also allows the use of the induction stove for other pots or processes.
- High electric heating power - 5 kW, which is economically more efficient than pasteurizers with built-in heating.
- Simple controls, a wide range of heating intensity settings depending on the required process and recipe, the ability to heat up to 220 degrees.
- All handles on the upper body are located in a cold zone, which reduces the risk of injury to the operator or maintenance personnel.
- A special section for removing secondary steam with a lid; it can be opened and closed during processing if necessary.
- The system for switching the mixing device on and off is located directly on the special high-temperature rubber cable.
- The ability to order additional options in the form of a frequency converter, additional filling devices, different types of mixers and outlet valves.

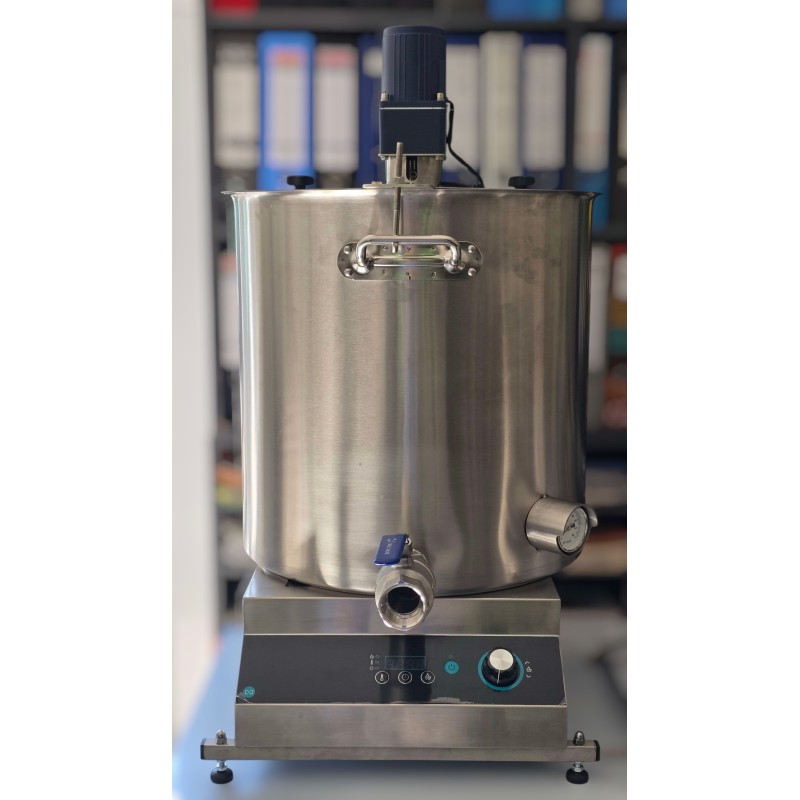

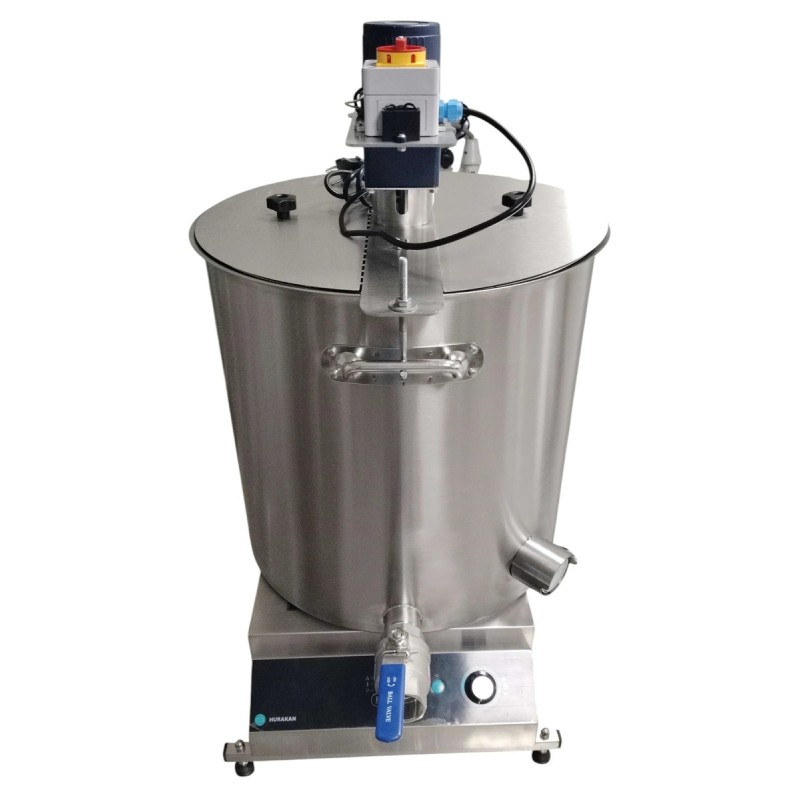

The basic version includes an electric induction stool stove with powerful direct heating of 5 kW and a stainless steel pasteurization vessel with a 230 Volt stirring device.
- Heating: Electric
- Material: Stainless steel
- Engine power, kW: 0,18/ 0,25
- Heating power, kW: 5
- Principle of operation: Batch mode
- Volume: 50l/ 100l/ 150l
- Outlet valve, inches: 6/4
- Diameter, mm: 400/ 500/ 600
