Flow pasteurizer for honey
We offer many different types of pasteurizers.

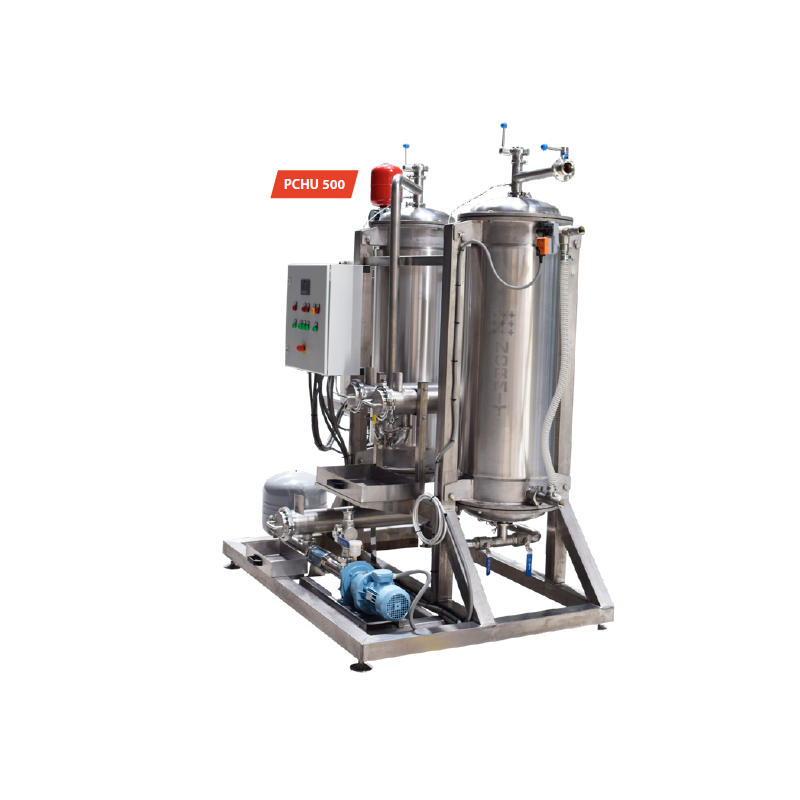

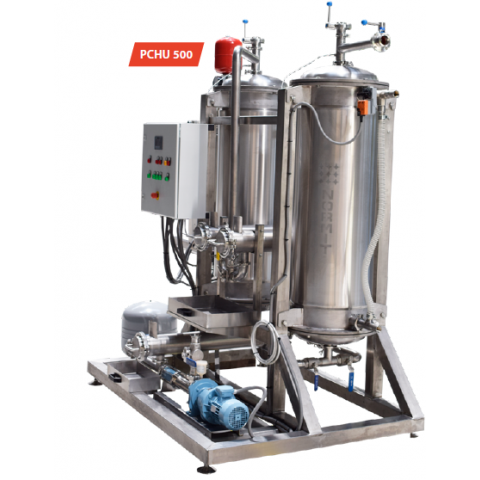

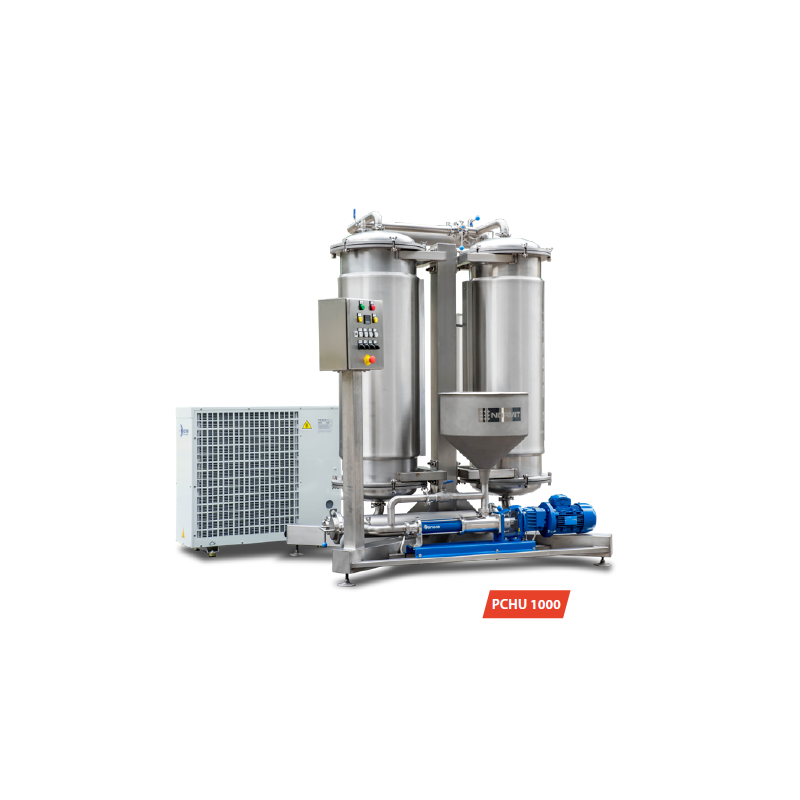

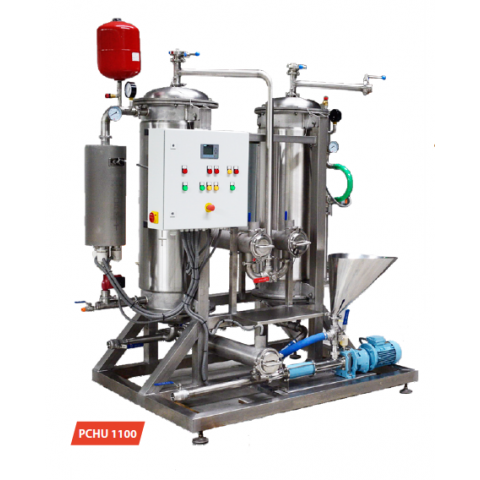

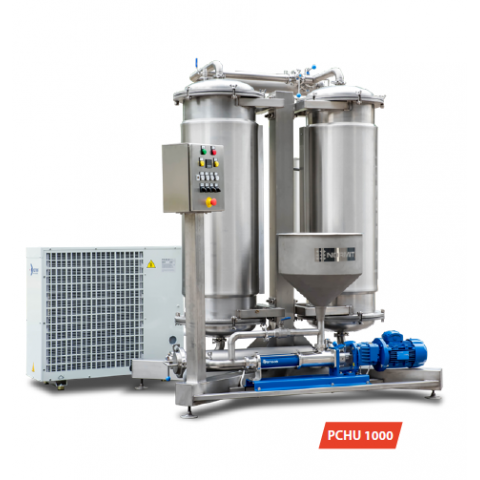

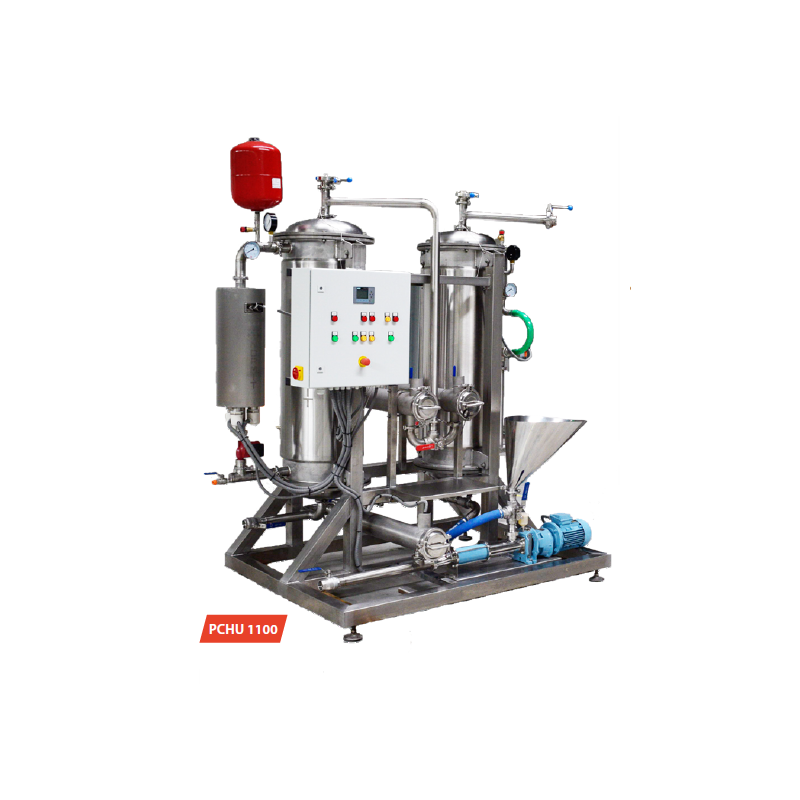

The honey melter, filter PCHU was constructed for manufacturing of highest quality natural materials possessing great economic features plus an appealing look.
Studies demonstrate that a lots of customers choose fluid clear honey, that people consider natural – on a global scale, clear honey is purchased more.
PCHU pasteurizer carries out these operations:
- melting honey crystals,
- thermal operation eliminating bacteria, yeasts that causes degradation of honey,
- honey filtering plus purifying to eliminate diverse contaminants like parts of honeycomb, grass, air bubbles, larvae, glucose crystals
Characteristics
- Thermal operation for melting crystals.
- Filtering to avoid fast crystallizing by removing of tiny bits like air bubbles, pollen grains, and glucose crystals that may lead to crystallizing.
- Eradication of microorganisms and yeast, that lead to deterioration of honey.
- Cleansing honey from contaminating with heavy metals and radionuclides, by ultrafiltering and elimination of polluted pollen
Benefits
- Flexible – pasteurizer can be used for processing various types of honey
- Persistently highest quality of the final material.
- Even heat operation;
- Expanded crystallization-free time, due to eliminating of crystallizing clusters like the ones created by contamination, plus melting all current seed crystals.
- Simple and beneficial managing of all processes thanks to the controller.
- Simple maintaining and washing.
- Installed heating mechanism.Â
- Clean construction in accordance with FDA rules;
- Made in EU using highest quality parts.
- Material: Stainless steel
- Principle of operation: Continuous mode
- Type of the equipment: Individual machine
- Country of origin: Slovakia
Katalog
