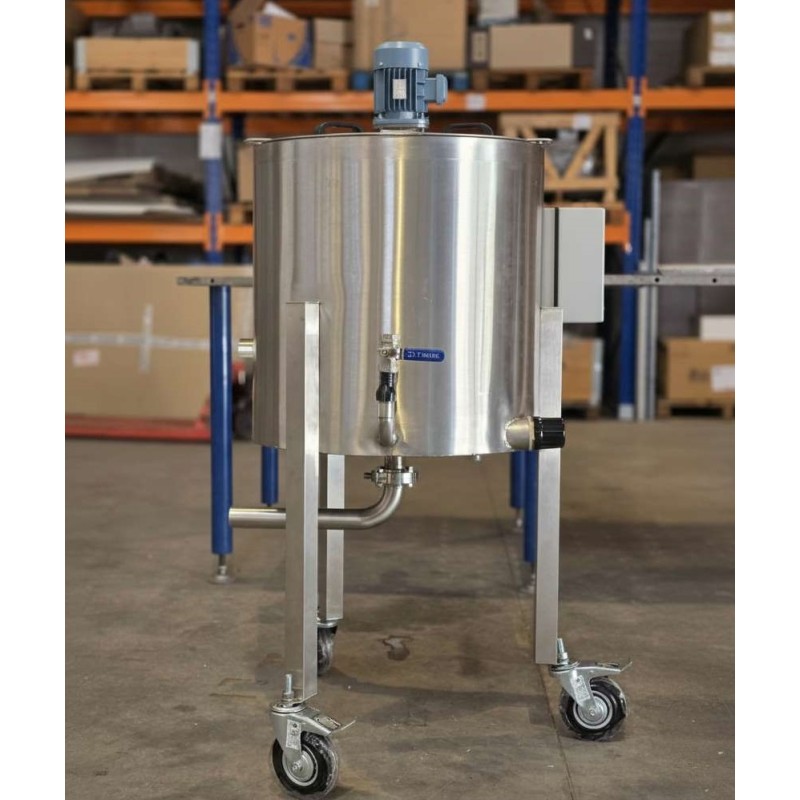

Milk pasteurizer 100 L
Milk pasteurizer for small and medium-sized enterprises, designed to carry out the pasteurization process of milk and other liquid products.
- Precision and stability of temperature control
- Maintaining the set temperature
- Uniform heating
A 100-liter milk pasteurizer is ideal for the needs of small and medium-sized enterprises. In addition to milk, it can also be used to pasteurize other products:
|
|
|
|
Advantages:
- Precision and stability of temperature control
- High energy efficiency
- Uniform heat distribution
- Hygienic and easy to clean
- Versatility - suitable for liquid products requiring pasteurization
- Durability and reliability - made from high-quality materials and components resistant to corrosion and wear
- Compactness - does not require a large area in production facilities
Basic version
The basic version of the pasteurizer includes a working tank with a discharge ball valve, a mixing device, a thermometer, a lid, 2 heating elements of 3 kW each.
Operating principle
A milk pasteurizer is a device designed to destroy pathogenic microorganisms in milk through controlled heating. Milk is heated to a preset temperature - typically 72-75°C, held at that temperature for 15-30 seconds and then rapidly cooled to 4-6°C to prevent bacterial growth.
Options
- PLC control
- Wheeled support
- Heating: Electric
- Material: Stainless steel
- Heating power, kW: 6
- Principle of operation: Batch mode
- Type of the equipment: Individual machine
- Country of origin: Slovakia
- Volume: 100l/ 300l
