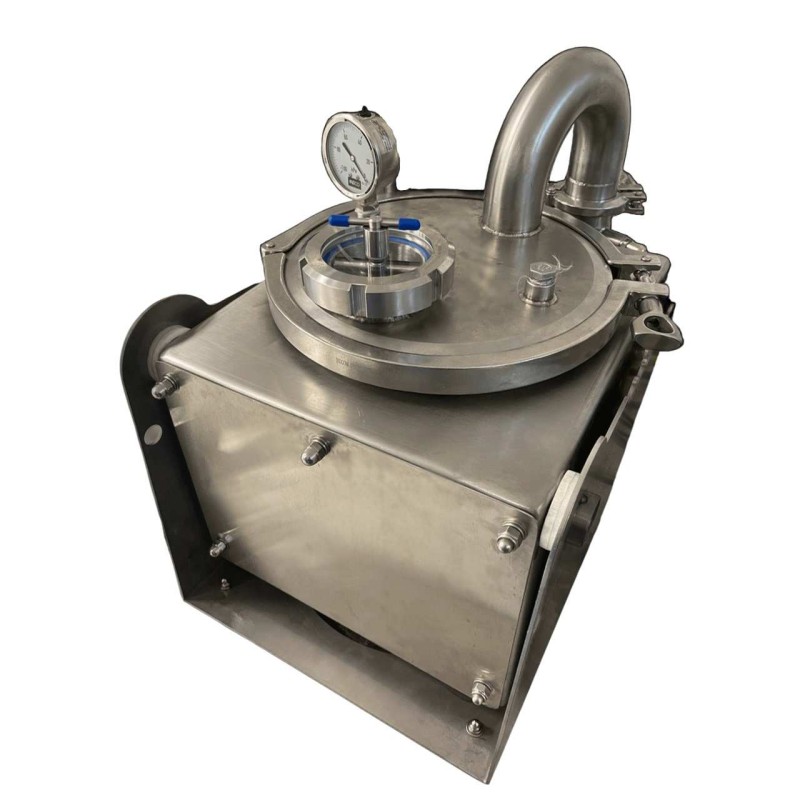

Pilot equipment for the production of non-alcoholic wine

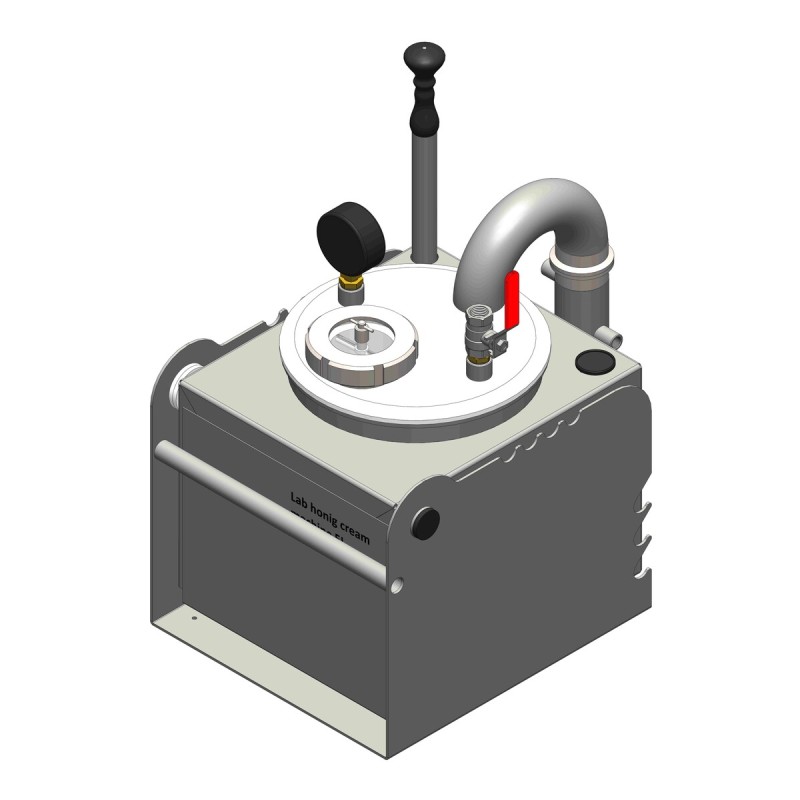

Small 3L vacuum processing unit with a stirring device and tilting function, for the production of non-alcoholic wine.
The principle of operation of the unit is the separation of alcoholic wine into non-alcoholic wine and high-strength alcohol, suitable for the production of brandy.
The separation of liquids is carried out under vacuum, which helps preserve the color and aroma of the beverage. Producing non-alcoholic wine at atmospheric pressure is quite complex, as the classical alcohol removal process often disrupts the flavor balance and removes some of the aromatic compounds.
The vacuum unit is equipped with a stirrer, a heat transfer jacket on the bottom and walls of the vessel, a vacuum system, and a transparent viewing window on the lid for visual monitoring of the process.
Options:
- Secondary steam removal and condensation system
- Flow heater
- Chiller (cooling unit)
- Table on wheels
- Material: Stainless steel
- Principle of operation: Batch mode
- Type of equipment: Individual machine
- Country of origin: Slovakia
- Volume: 5l
You might also like
The price is indicated with a semi-automatic control panel
The vacuum cooking kettle is designed for use in public catering establishments (restaurants, hotels, catering companies) and small manufacturing businesses. This equipment enables boiling, blanching, frying, evaporation, pasteurization, mixing or stirring.
- A unique multifunctional device
- Possibility to cook/fry under atmospheric or vacuum conditions
- Laboratory version of a Vacuum Fryer
- Built-in condensation and secondary steam removal system
- Intense electric heating
- Sectional basket with a lid
- Built-in system for separating and removing excess liquid from the product
- Heating: Electric
- Material: Stainless steel
- Heating power, kW: 5
- Volume: 20l
- Oil volume: 8l
- Voltage: 380-400V
- Max vacuum: -0,8 Bar
Compact vacuum evaporation machine with an external circulation heat exchanger for the production of test batches of products, development of new recipes and technological maps.
- Compact installation
- Capable of replicating all processing techniques used in industrial vacuum evaporation units with circulation
- Preserves the natural taste, aroma and color of the product
- Can be used to produce small batches of products
- Material: Stainless steel
- Principle of operation: Batch mode
- Type of equipment: Individual machine
- Country of origin: Slovakia
- Volume: 20l
Vacuum evaporator with remote circulation using a heat exchanger is one of the most efficient evaporation methods. This evaporation system is suitable for boiling and concentrating heat-sensitive products such as milk, cream, etc.
- No mixing device required, the product has forced circulation!
- Modular system: possibility to choose the vacuum generator, power and heat exchanger type
- Inclined design and bottom valve for 100% product discharge without losses and blind spots
- Insulated upper hatch of the unit for heat retention and safety
- Tangential product inlet into the vacuum vessel for guaranteed evaporation in a thin layer
- Material: Stainless steel
- Volume: 50l/ 100l/ 300l
A vacuum distillation system is used for controlled separation of liquids based on the evaporation of the liquid and subsequent condensation of its vapors.
- Material: Stainless steel
- Country of origin: Slovakia
- Volume: 5l
We offer different types of vacuum evaporation machines, this type is an affordable option for efficient evaporation in a stainless steel unit.
- Material: Stainless steel
- Principle of operation: Batch mode
- Volume: 100l
We offer wide range of evaporating equipment for a wide range of products. Price depends on the capacity and product used.
- Material: Stainless steel
- Principle of operation: Batch mode
- Country of origin: Slovakia
Price depends on the capacity and product.
- Material: Stainless steel
- Principle of operation: Batch mode
- Type of equipment: Individual machine
- Country of origin: Slovakia
The Atmospheric Evaporating Pan efficiently concentrates liquids by evaporating them on a large surface area, while also being suitable for various cooking methods including braising, cooking, and roasting.
- Heating: Electric
- Material: Stainless steel
- Principle of operation: Batch mode
- Country of origin: Slovakia
Compact vacuum evaporation machine with an external circulation heat exchanger for the production of test batches of products, development of new recipes and technological maps.
- Compact installation
- Capable of replicating all processing techniques used in industrial vacuum evaporation units with circulation
- Preserves the natural taste, aroma and color of the product
- Can be used to produce small batches of products
- Material: Stainless steel
- Principle of operation: Batch mode
- Type of equipment: Individual machine
- Country of origin: Slovakia
- Volume: 20l
A circulation-type vacuum evaporator refers to a combined version of an evaporator that also takes advantage of other types to improve evaporation efficiency particularly by reducing concentration time and when processing heat-sensitive products such as milk.
- The external circulation circuit with heating intensifies the cyclic evaporation process.
- The forced circulation system ensures a decrease in the risk of localized product overheating.
- The condenser enables a deep vacuum and maintains a low evaporation temperature.
- Utilizing a mixing device with a spray system facilitates product evaporation in a thin layer, mimicking a film-type evaporator.
- Material: Stainless steel
- Principle of operation: Batch mode
- Country of origin: Slovakia
The compact line of double-type vacuum cooking kettles comprises a complex of batch food cooking units designed for periodic thermal processing, vacuum mixing, and deaeration of various products under sub-atmospheric pressure.
- Material: Stainless steel
- Principle of operation: Batch mode
- Country of origin: Slovakia
- Volume: 2x300l/ 2x600l
A vacuum evaporator is a device used to evaporate liquids at lower temperatures by creating a vacuum environment, which reduces the boiling point of the liquid and enables efficient evaporation without thermal degradation of sensitive materials. Working volume up to, l: 1900 l.
- Heating: Electric
- Material: Stainless steel
- Heating power, kW: 30
- Principle of operation: Batch mode
- Country of origin: Slovakia
- Working volume: up to 1900 l
Multifunctional vacuum pilot unit MINI5 - is ideal for cooking, drying, concentrating, mixing and much more. Suitable for laboratories and experiments.
- Processing heat-sensitive products at lower temperatures
- Ideal for making creamed honey
- Possibility of vacuum drying honey
- Material: Stainless steel
- Engine power, kW: 0,12
- Country of origin: Slovakia
- Volume: 5l
Plant for evaporating, concentrating and crystallizing solutions. Vacuum evaporator ensures a complete separation of the solution into a solid fraction and pure water.
Vacuum evaporators are designed for concentration and thermal processing of liquid and semi-liquid products under reduced pressure, enabling evaporation at lower temperatures for preserving product quality. FT Mak evaporators utilize efficient heat transfer, controlled vacuum conditions, and internal mixing to achieve stable and repeatable processing results.
- Reduced boiling temperature under vacuum preserves beneficial product qualities
- Efficient evaporation with external heating through a duplicator
- Uniform processing without local overheating
- Wide range of options from 100 to 1800 L for different production capacities
The vacuum evaporation unit is specially designed for thickening dense food products in industrial quantities. The evaporator can be used for the production of thick syrups, caramel masses, dense fruit masses, as well as for the production of pectin, or heat-stable fillings with a high productivity.
- High performance
- Rotary spraying system with a powerful electric drive
- Evaporation in a thin layer with a large heat transfer area
- Low investment installation costs
- Tangential entry for product swirling
- Material: Stainless steel
- Principle of operation: Batch mode
- Country of origin: Slovakia
- Voltage: 380-400V
An evaporator concentrator-crystallizer is a multifunctional unit that concentrates liquids by evaporating water and inducing crystallization for the production of concentrated solutions or crystalline products.
- Material: Stainless steel
- Working volume: up to 6000 L
- Geometric volume: 6500 l
An evaporating unit is utilized to remove moisture from sweet substances through heating, transforming them into concentrated syrups or solutions.
- Material: Stainless steel
- Heating power, kW: 30
- Principle of operation: Batch mode
- Country of origin: Slovakia
- Voltage: 380-400V
- Geometric volume: 200 l
A circulation-type vacuum evaporator refers to a combined version of an evaporator that also takes advantage of other types to improve evaporation efficiency particularly by reducing concentration time and when processing heat-sensitive products such as milk.
- The external circulation circuit with heating intensifies the cyclic evaporation process.
- The forced circulation system ensures a decrease in the risk of localized product overheating.
- The condenser enables a deep vacuum and maintains a low evaporation temperature.
- Utilizing a mixing device with a spray system facilitates product evaporation in a thin layer, mimicking a film-type evaporator.
- Heating: Steam
- Material: Stainless steel
- Operation mode: Semi-automatic
- Country of origin: Slovakia
- Total power, kW: 2,4
- Voltage: 380-400V
