Equipment for the production of non-alcoholic wine
Installations for the production of non-alcoholic wine are manufactured in various models and configurations starting from volumes of 100 liters. The systems operate on the principle of vacuum distillation, which allows for alcohol removal at low temperatures, resulting in a healthy product with minimal alcohol content.
- A wide range of models — suitable both for small-scale production and large-scale industrial operations
- Capability to produce a "healthy product" while preserving all organoleptic properties of the beverage
- Depending on production capacity, the systems can be designed for batch or continuous operation
- Deep vacuum conditions allow for low evaporation temperatures, enabling especially gentle evaporation without thermal degradation of the flavor profiles of different types of wine
The production of non-alcoholic wine is a new rapidly developing trend in food technology. To achieve a beverage with minimal alcohol content, equipment based on vacuum distillation is most commonly used.
A vacuum distillation unit for the production of non-alcoholic wine is designed to produce beverages with low or minimal alcohol content.
Advantages
- A vacuum conical reactor capable of achieving deep vacuum levels down to 0.05 bar residual pressure, which allows for significantly lowering the distillation temperature to 27–28°C, thereby minimizing any negative impact on the wine’s taste and aroma
- Single-stage vacuum distillation, which is a more effective method compared to reverse osmosis and is considered more energy-efficient
- Vacuum evaporation at low temperatures allows for the production of a rich, concentrated beverage
- Product is fed below the level of the working liquid, which helps significantly reduce foaming and product loss due to entrainment
- Precise control of the evaporation temperature, with optional programmable controller-based automation of the processing cycle
- Visual monitoring of the process through technological viewing windows with optional scraper or lighting
- All components are mounted on a common frame, ensuring compactness and ease of maintenance
- All parts and components in contact with the product are made out of food-grade stainless steel or other certified food-safe materials
Basic version

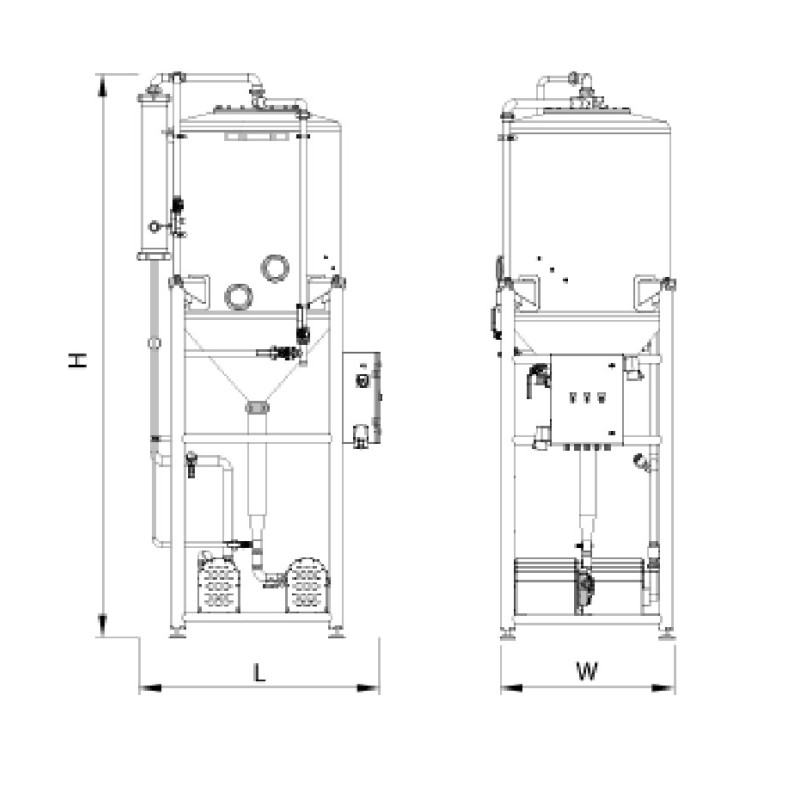

It comprises a vacuum cylindrical reactor with a conical bottom on a supporting structure, equipped with a forced product circulation system, equipped with a vacuum system, a vapor removal and condensation system, a heating system and a control system.
Options
- Control system based on a programmable logic controller (PLC)
- Viewing windows with a scraper and/or illumination
- Material: Stainless steel
- Country of origin: Slovakia
Compact vacuum evaporation machine with an external circulation heat exchanger for the production of test batches of products, development of new recipes and technological maps.
- Compact installation
- Capable of replicating all processing techniques used in industrial vacuum evaporation units with circulation
- Preserves the natural taste, aroma and color of the product
- Can be used to produce small batches of products
- Material: Stainless steel
- Principle of operation: Batch mode
- Type of the equipment: Individual machine
- Country of origin: Slovakia
- Volume: 20l
Price depends on the capacity and product.Â
- Material: Stainless steel
- Principle of operation: Batch mode
- Type of the equipment: Individual machine
- Country of origin: Slovakia
We offer wide range of evaporating equipment for a wide range of products. Price depends on the capacity and product used.
- Material: Stainless steel
- Principle of operation: Batch mode
- Country of origin: Slovakia
A vacuum deaerator is extensively used in the food industry to remove gases from products that may retain some bubbles post-processing. Additionally, a flow deaerator is utilized to minimize foaming in products, ensuring a denser structure, especially prior to packaging. Vacuum deaerators play a crucial role in eliminating specific odors from the products, such as in the production of juices, purees, and herbal drinks. This process significantly contributes to enhancing the overall quality and taste of the final product.
- Enhances product quality, structure, and shape
- Prevents oxidation by removing gases
- Preserves organoleptic properties and extends the shelf life
- Suitable for thick and viscous products
- The flow principle allows for the installation of this equipment in existing production lines
- Material: Stainless steel
- Principle of operation: Continuous mode
- Country of origin: Slovakia
- Voltage: 380-400V
- Max vacuum: -0,8 Bar
Multifunctional vacuum unit MINI5 - is ideal for cooking, drying, concentrating, mixing and much more. Suitable for laboratories and small-scale production.
- Processing heat-sensitive products at lower temperatures
- Ideal for making creamed honey
- Possibility of vacuum drying honey
- Material: Stainless steel
- Engine power, kW: 0,12
- Country of origin: Slovakia
- Volume: 5l
An evaporating unit is utilized to remove moisture from sweet substances through heating, transforming them into concentrated syrups or solutions.
- Material: Stainless steel
- Heating power, kW: 30
- Principle of operation: Batch mode
- Country of origin: Slovakia
- Voltage: 380-400V
- Geometric volume: 200 l
We offer different types of vacuum evaporation machines, this type is an affordable option for efficient evaporation in a stainless steel unit.
- Material: Stainless steel
- Principle of operation: Batch mode
- Volume: 100l
A circulation-type vacuum evaporator refers to a combined version of an evaporator that also takes advantage of other types to improve evaporation efficiency particularly by reducing concentration time and when processing heat-sensitive products such as milk.
- The external circulation circuit with heating intensifies the cyclic evaporation process.
- The forced circulation system ensures a decrease in the risk of localized product overheating.
- The condenser enables a deep vacuum and maintains a low evaporation temperature.
- Utilizing a mixing device with a spray system facilitates product evaporation in a thin layer, mimicking a film-type evaporator.
- Material: Stainless steel
- Principle of operation: Batch mode
- Country of origin: Slovakia
The price is set for the basic version of the vacuum evaporation unit with basic controls (mixer motor switch) and without additional options. The control unit is customized based on individual customer requirements. The pump is also selected separately depending on the product.
A compact vacuum evaporation unit that allows you to concentrate solutions, mixtures, and various products by evaporating the solvent. A modular version based on the basic version of the 110/100 vacuum reactor.
- Gravity mixing - 25% more efficient
- Reinforced agitator design with no blind spots
- Bottom ball valve with no dead zones
- Condensation and secondary vapor removal system
- Easy to disassemble mixing device
- Large heat exchange area
- Ability to measure and monitor condensate volume (optional)
- Material: Stainless steel
- Engine power, kW: 0,25
- Principle of operation: Continuous mode
- Country of origin: Slovakia
- Volume: 100l
- Voltage: 220-230V
- Max vacuum: -0,8 Bar
- Working volume: 50-80l
- Condensing capacity, l/h: 45-55
- Steam consumption, kg/h: up to 150
A vacuum distillation system is used for controlled separation of liquids based on the evaporation of the liquid and subsequent condensation of its vapors.
- Material: Stainless steel
- Country of origin: Slovakia
- Volume: 5l
A circulation-type vacuum evaporator refers to a combined version of an evaporator that also takes advantage of other types to improve evaporation efficiency particularly by reducing concentration time and when processing heat-sensitive products such as milk.
- The external circulation circuit with heating intensifies the cyclic evaporation process.
- The forced circulation system ensures a decrease in the risk of localized product overheating.
- The condenser enables a deep vacuum and maintains a low evaporation temperature.
- Utilizing a mixing device with a spray system facilitates product evaporation in a thin layer, mimicking a film-type evaporator.
- Heating: Steam
- Material: Stainless steel
- Operation mode: Semi-automatic
- Country of origin: Slovakia
- Total power, kW: 2,4
- Voltage: 380-400V
Deaerator is used for the removal of air bubbles from the puree. Price depends on the required volume and production capacity.
For more information, send us a request.Â
- Productivity: 1000 kg/h/ 2000 kg/h
- Material: Stainless steel
- Principle of operation: Continuous mode
Vacuum evaporator with remote circulation using a heat exchanger is one of the most efficient evaporation methods. This evaporation system is suitable for boiling and concentrating heat-sensitive products such as milk, cream, etc.
- No mixing device required, the product has forced circulation!
- Modular system: possibility to choose the vacuum generator, power and heat exchanger type
- Inclined design and bottom valve for 100% product discharge without losses and blind spots
- Insulated upper hatch of the unit for heat retention and safety
- Tangential product inlet into the vacuum vessel for guaranteed evaporation in a thin layer
- Material: Stainless steel
- Volume: 50l/ 100l/ 300l
The vacuum cooking and concentration unit is designed for concentrating products at low temperatures (about 60 degrees) in a reactor with a discharged environment to preserve the color, nutritional value and useful natural substances in present in food products. Evaporation and concentration units are often used when cooking jams, sauces, as well as fruit or vegetable concentrates. The vacuum concentrator allows you to boil and concentrate heat-sensitive products without damaging or destroying their structure or proteins, such as milk.
- Inclined design - allows for gravity mixing, which is 40% more efficient than usual
- Quick and 100% emptying of the tank thanks to the inclined design with the mixer on
- Heating/cooling jacket (duplicator) for the working tank and bottom
- High hygiene standard - the output valve is located at the lowest hydraulic point of the reactor
- Material: Stainless steel
- Principle of operation: Batch mode
- Country of origin: Slovakia
- Volume: 300l/ 500l/ 875l
Equipment for the production of condensed milk from pre-pasteurized milk. This equipment can be manufactured with a capacity of 50 to 500 kg/hour, or on request. We also manufacture condensed milk lines according to TU from dry milk or normalized milk concentration lines.
- Material: Stainless steel
- Type of the equipment: Part of a production line
- Country of origin: Slovakia
The concentration and thickening line line has been especially designed for industrial dairy production facilities with a small surplus of milk or smaller milk processing businesses that want to expand their product range. It has an estimated productivity of up to 50-120 kg/hour during continuous operation.
- Professional industrial technology with compact dimensions
- A large number of additional equipment and options to choose from
- Material: Stainless steel
- Principle of operation: Continuous mode
