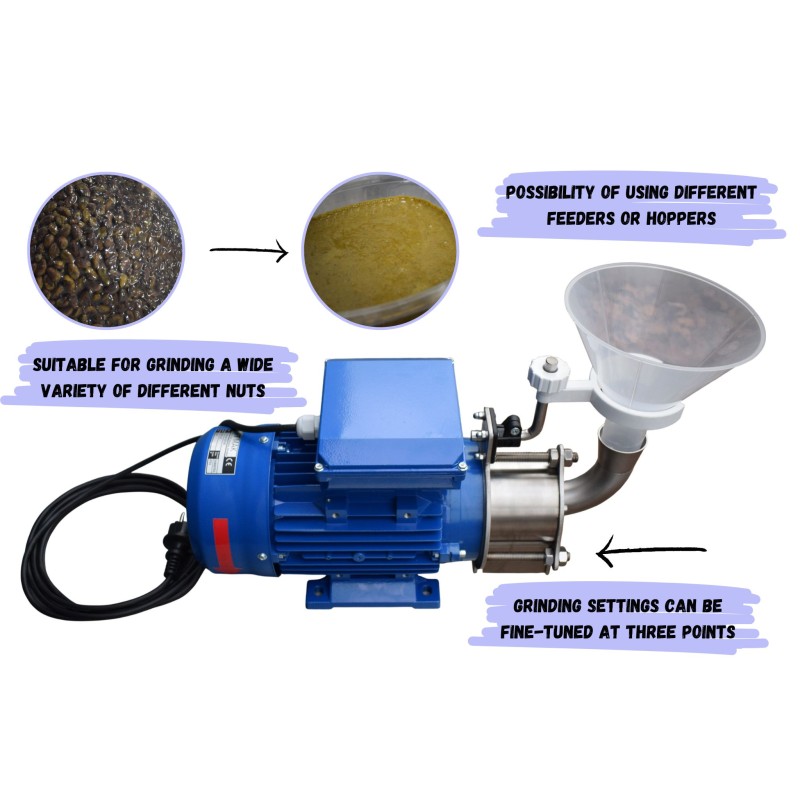

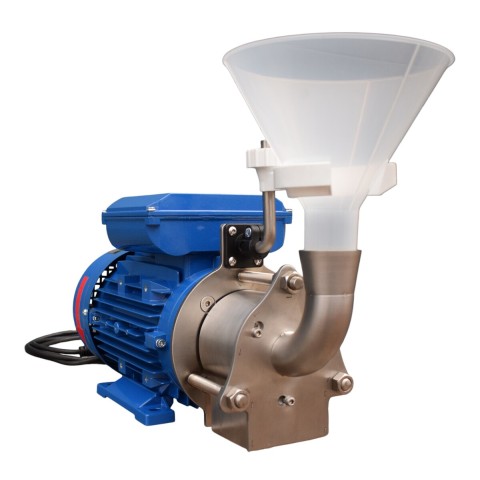

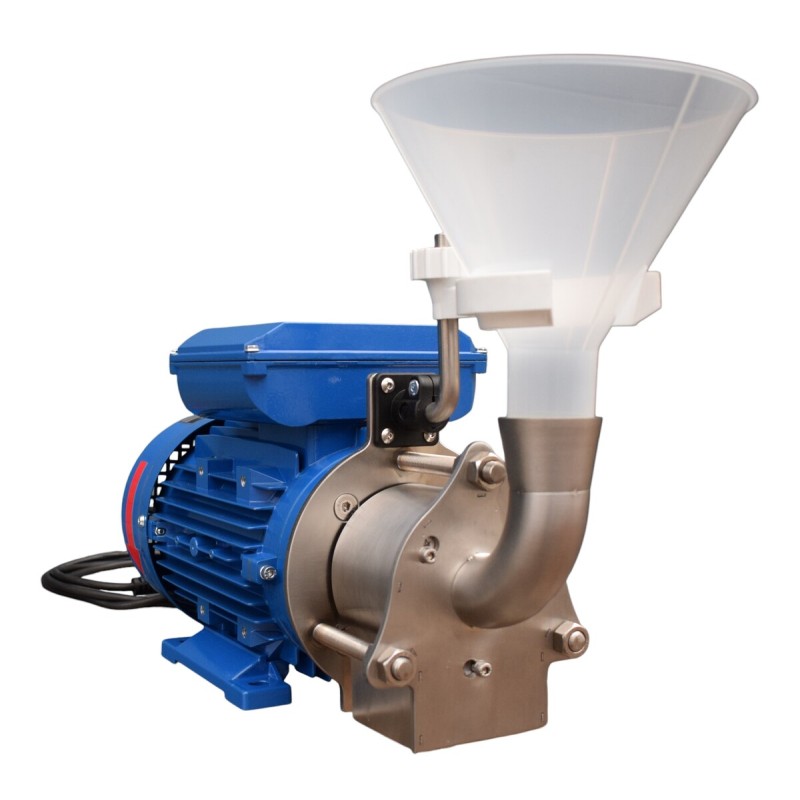

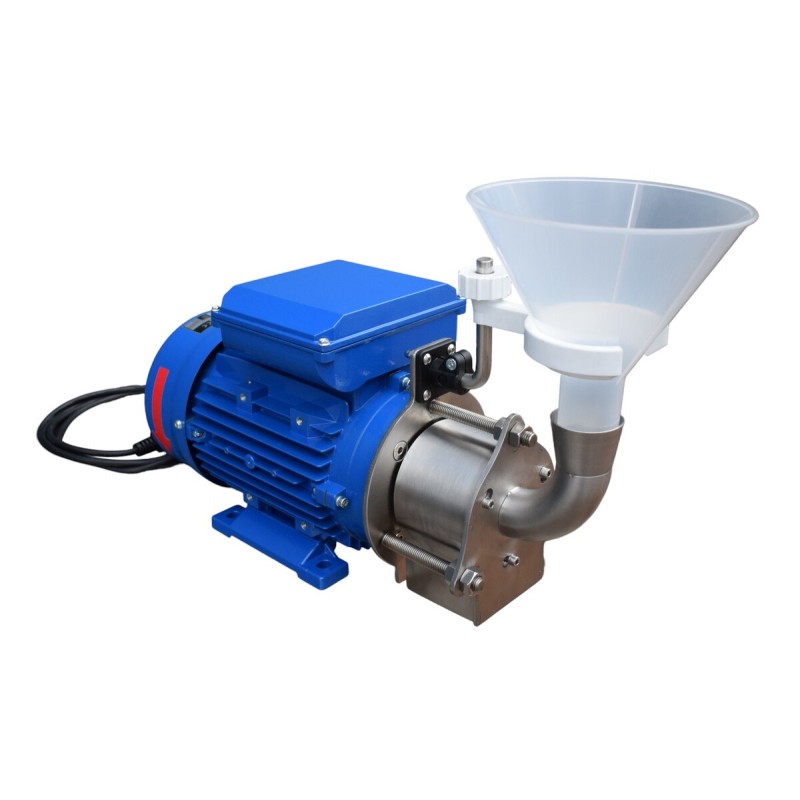

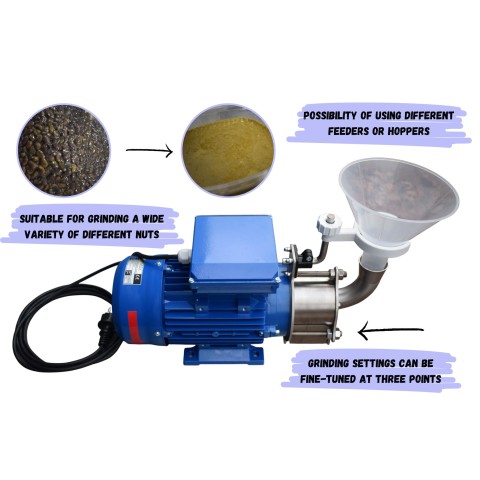

Industrial mill for nuts
A compact and efficient mill designed for grinding and crushing nuts and similar products. Ideal for producing pastes from roasted peanuts, cashews, and other nut-based spreads with options for both a smooth texture and a crunchy effect.
Key features:
- Compact design – suitable for tabletop installation
- Adjustable rotor-stator gap with three-point adjustment
- Options for replaceable conical hoppers (Guiding funnels)
- Rotor and stator made of food-grade stainless steel
- Rotor-stator distance adjustable from 0 to 15 mm
- High rotor speed: 0–3000 rpm in the basic version, up to 6000* rpm (*with optional frequency converter for single-phase motors)
- Uniform and consistent grinding results
With its adjustable grinding mechanism and high rotor speed, the mill allows you to adjust the distance between the grinding elements to achieve the desired product consistency and final particle size, making it suitable for a wide range of food industry applications.
Advantages:
- All you need for nut processing is one unit (All-in-One), the ultimate all-in-one solution.
- Produce organic products—100% pure, natural flavors and aromas, free of palm oil and emulsifiers.
- Simply plug it into a standard outlet and start producing immediately—whether in your home kitchen, organic store, or fitness center.
- The use of high-quality stainless steel ensures the machine doesn't absorb odors, is extremely easy to clean, and meets the highest hygiene standards.
- Forget about complicated processes, soaking nuts, or pre-grinding them, no pre-treatment required.
Applications
Suitable for crushing and grinding roasted peanuts, roasted cashews, and other nuts or similar products.
The mill is especially well-suited for small and medium-scale nut processing, when consistency and repeatability are mandatory.
Design and adjustment
The mill is equipped with a powerful electric motor and a precision-machined rotor-stator system mounted on the motor shaft. Adjustable clearance between the rotor and stator from practically 0 to 1,5 mm allows the operator to vary the final product consistency, from coarse to completely smooth.
The guiding hopper is used to receive nuts from a dosing system (available as an additional option) and direct them into the grinding zone.
Operating principle
The product passes through a narrow gap between the high-speed rotor and the stationary stator, where it is subjected to intense shear and impact forces. This process crushes the particles to the desired consistency and size.
Basic version
The basic version of the mill includes a powerful electric motor with a specially designed stainless steel rotor and stator. A pipe with a conical hopper is located on the front panel. A key advantage of this model is the ability to adjust the clearance between the stator and rotor at three points to select the final product particle size.
Options
- Frequency converter
- Dosing system
- Material: Stainless steel
- Principle of operation: Batch mode
- Type of the equipment: Individual machine
- Country of origin: Slovakia
- Voltage: 220-230V
