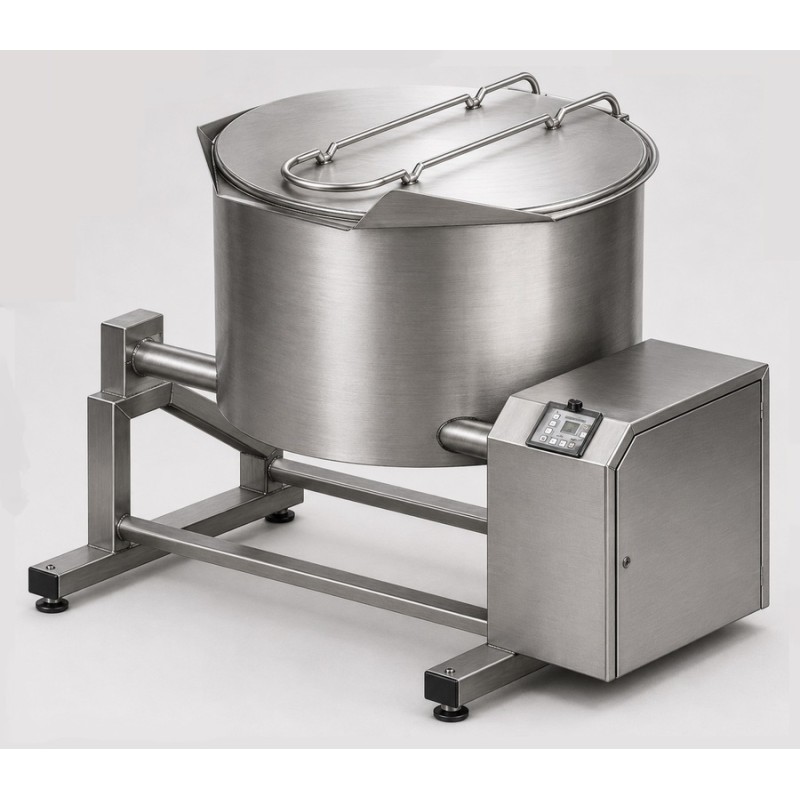

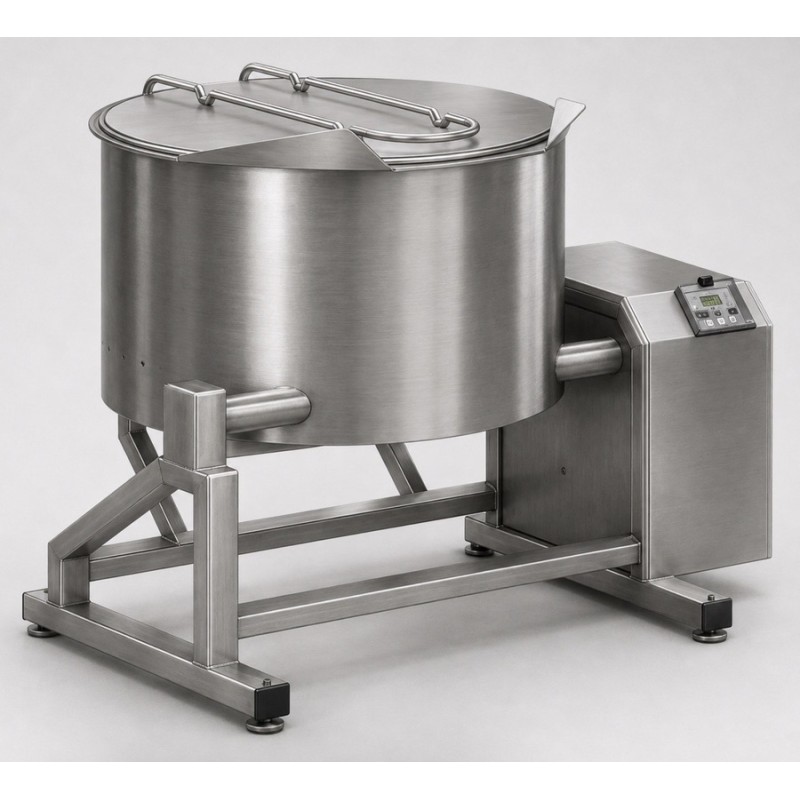

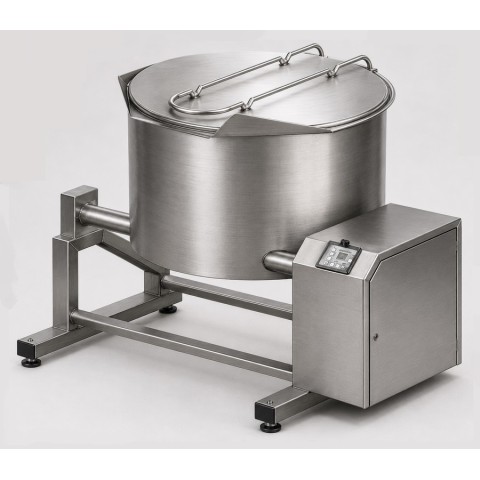

Salad mixing machine 600-1000L
Equipment for mixing multi-component mixtures of products, such as vegetable salads with various dressings, including thick and viscous ones like mayonnaise, thick sour cream and other similar sauces.
- Hydraulic tilting system is included in the basic version
- The controls are located directly on the frame supporting structure
- Eccentrically offset working shaft for rotating/tilting the working tank
- Low loading height
- The installation is made entirely out of food grade stainless steel
Mixing machines are designed for use in the food industry, particularly in the production of semi-finished products, ready-made in-flight meals, and cooking in small to medium-sized facilities, including dark "kitchen" setups.
The universal mixing unit is suitable for the gentle mixing of various foods such as leafy greens, salads, and other comparable products.
Advantages:
- Maximum product unloading with virtually no losses due to the hydraulic tilt of the working container and the eccentrically offset working rotation shaft.
- A special system for fixating the top cover for safe operation when tilting (loading/unloading) the unit.
- The height of the maximum tilt and unloading is based on the height of the rolling trolley (BIN container), standardly used in food production.
- The mixing device in the form of a "half-arm" has a special shape and bend for gentle, yet thorough mixing of the product; a flexible scraper is already included in the basic version for cleaning the walls of the working container.
- Automatic tilting and unloading system facilitated by the integrated hydraulic station within the supporting structure of the installation.
- Simple control system with an adjustable speed of rotation for the mixing device.
- Sensors for monitoring the position of the working container and an open lid, ensuring the operator's safety during operation.
- User-friendly design for easy cleaning, sanitization of the installation and simple, intuitive operation.
- Quick-release mixing device for simple and convenient cleaning/maintenance of the mixer.
Basic version
It comprises an atmospheric working container suspended by a rotation shaft mounted on the supporting structure/frame of the installation. The container features an electrically driven mixing device with a flexible scraper, a built-in hydraulic system, and a control panel.
- Material: Stainless steel
- Operation mode: Semi-automatic
- Principle of operation: Batch mode
- Country of origin: Slovakia
- Volume: 600l/ 1000l
