Tank with a mixer and jacket for the thermal carrier 100-900 L

Tank with a mixer and jacket for the thermal carrier 100-900 L

€0.00

The atmospheric tank with an inclined design is used for mixing, stirring, and dissolving various products. By supplying a thermal carrier to the unit’s jacket (duplicator) from an external source, thermal processing such as heating or cooling can occur (i.e. heating or cooling from an external coolant source with an inlet pressure of up to 0.5 bar). These units are widely utilized in the food and cosmetic industries.

Inclined design: 50% more efficient mixing
Due to the inclination angle of the working tank, rapid and complete (100%) emptying is achieved.
Efficient heat transfer through the heating/cooling jacket
No dead zones during mixing!
Modular system with a wide range of additional options

Atmospheric mixers with a frame stirrer and a jacket for the heat transfer medium (for heating or cooling) are suitable for use in the food, cosmetic, chemical, and many other industries, as they allow a wide range of processes to be performed, including:

cook	mix	dissolve	concentrate
cool	stir	pasteurize	boil down

Atmospheric tanks with a stirrer and a heating/cooling jacket are suitable for the production of such products as:

shampoos	gels	ketchup, sauces
cream honey	soups	beverages
jams	salt solutions	marinades

And much more!

Advantages:

Hygienic design: virtually eliminates product contamination after washing, as there are no blind zones inside the reactor.
No dead corners due to gravity mixing, the product flows to the lowest point, from where it is raised by the mixer and mixed into the total mass. Gravity mixing is 50% more efficient than usual. It allows intensive mixing, and the mixing of thick and viscous products.
The inclined design of the unit also helps to quickly unload the product while the mixing device is on.
The unit can be equipped with various types of frame mixing devices.
The heating/cooling jacket up to 0.5 bar allows the use of steam or hot water as a heat carrier for heating, and if cooling is necessary, cold water or glycol can be supplied to the jacket.
A professional stainless steel temperature sensor is installed in the bottom of the working tank, certified for use in contact with food products.
Robust design, all components are supplied only from European manufacturers. All connections, joints, fittings are made only out of stainless steel AISI 304 and 316L, connections - fittings used in dairy processing from German manufacturers such as AWH. All connections have high-temperature Viton seals. The tanks are resistant to acids, alkalis and high temperatures.
The internal surfaces are polished to RA ≤ 1.6 µm. Mirror internal surfaces (for the pharmaceutical industry) can be ordered as an option.
Convenient maintenance due to the inclined design even with large installation volumes. Space saving in production facilities – compact, high-performance tanks.

Basic version:

The basic version of the unit is equipped with a frame stirrer with a professional industrial three-phase gear motor. The reactor has a two-layer casing with a heating/cooling jacket (up to 0.5 Bar). Optionally, thermal insulation with an external decorative casing can be installed. In the basic version, the internal surfaces of the mixer are polished, the welds are cleaned and etched. Optionally, the internal surfaces of the mixer can be polished to Ra <0.4 µm. Hot water or steam can be used as a heat carrier.

Options:

A professional stainless steel temperature sensor in the product at the bottom of the tank with a control panel in the form of a temperature controller
Various types of mixing devices
Scrapers for the agitator
CIP heads
Hot water supply source
Steam generator
Ice water stations
Thermal insulation with an external decorative casing
And much more...

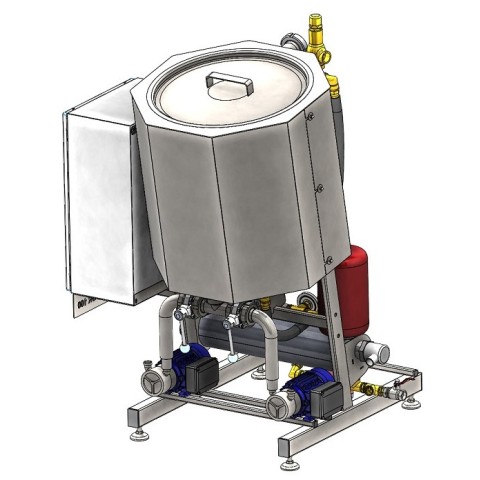

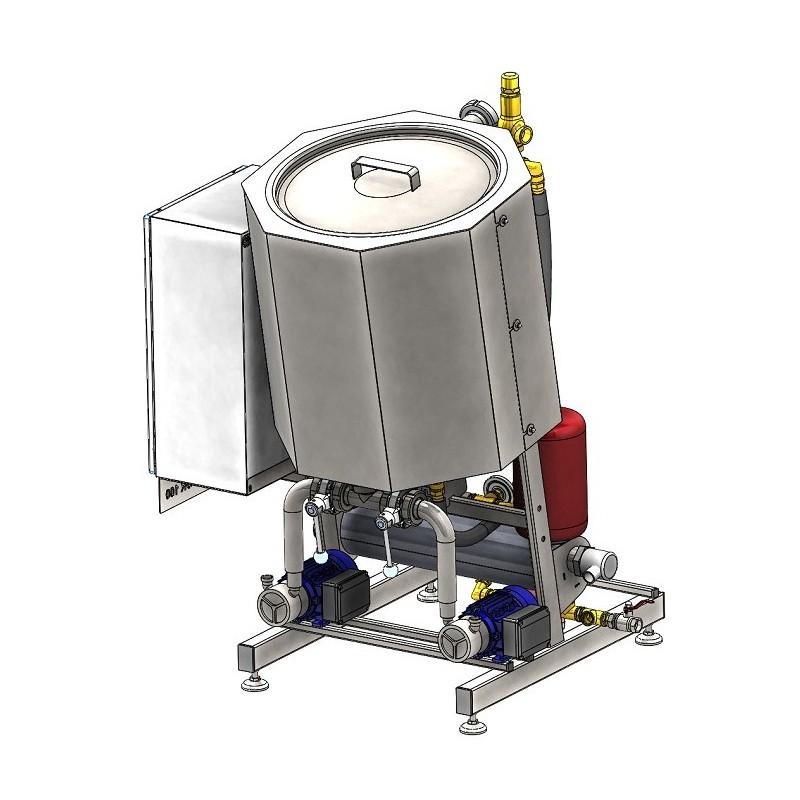

The images contain models with the maximum configuration, and are posted for informational purposes. Actual installations may differ from those shown.

Material: Stainless steel
Principle of operation: Batch mode
Type of the equipment: Individual machine
Country of origin: Slovakia
Working volume: 100l/ 200l/ 300l/ 450l/ 600l/ 900l
