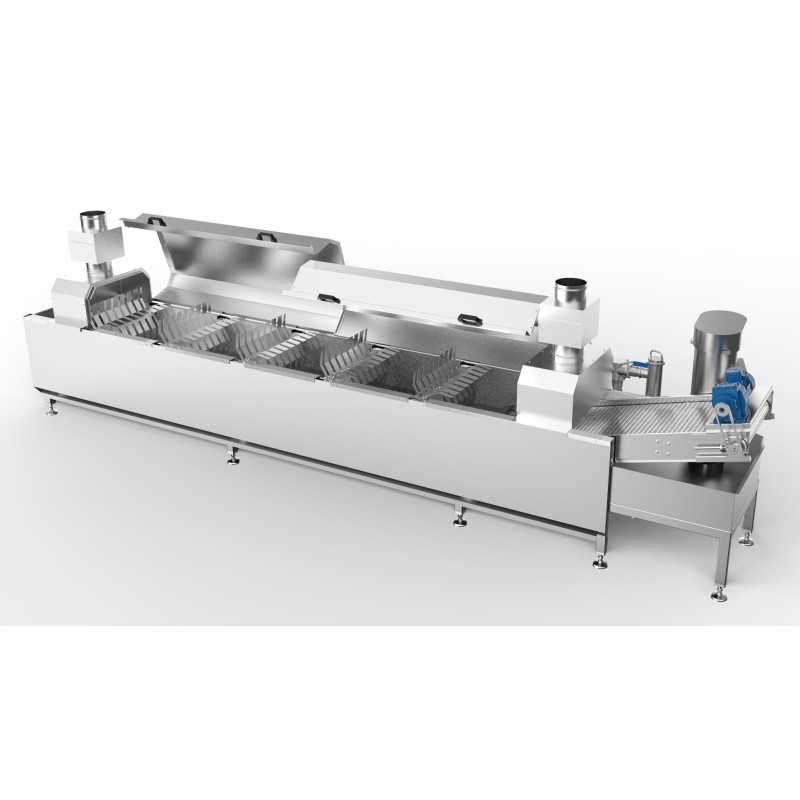

Continuous paddle fryer SnackPro

We offer different types of continuous fryers, tell us what product you want to fry and we will help you choose the right fryer for you. Email us at sales@foodtechprocess.com

Model


Delivery Policy - ex works, delivery time depends on the individual equipment



Refund policy - as stated in the TERMS AND CONDITIONS

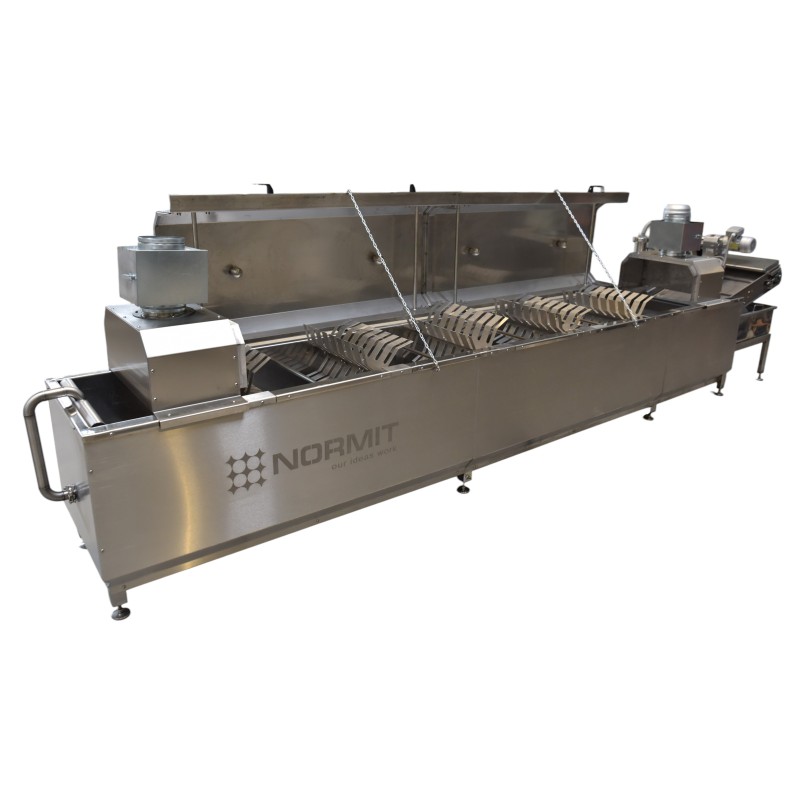

Continuous paddle fryer for frying small, loose or light products such as potato chips / Continuous fryers made in EUpaddle fryer

Continuous industrial fryers of the NORMIT SnackPro series are specially developed for frying small, loose products that have (or are getting in the frying process) less density than oil and float on its surface.

What products can I fry in a continuous paddle fryer

  • Vegetable chips (potato, sweet potato, carrot, beet, Kohlrabi etc.)
  • French fries
  • Crackers
  • Croquet
  • Products from the flour
  • Snacks

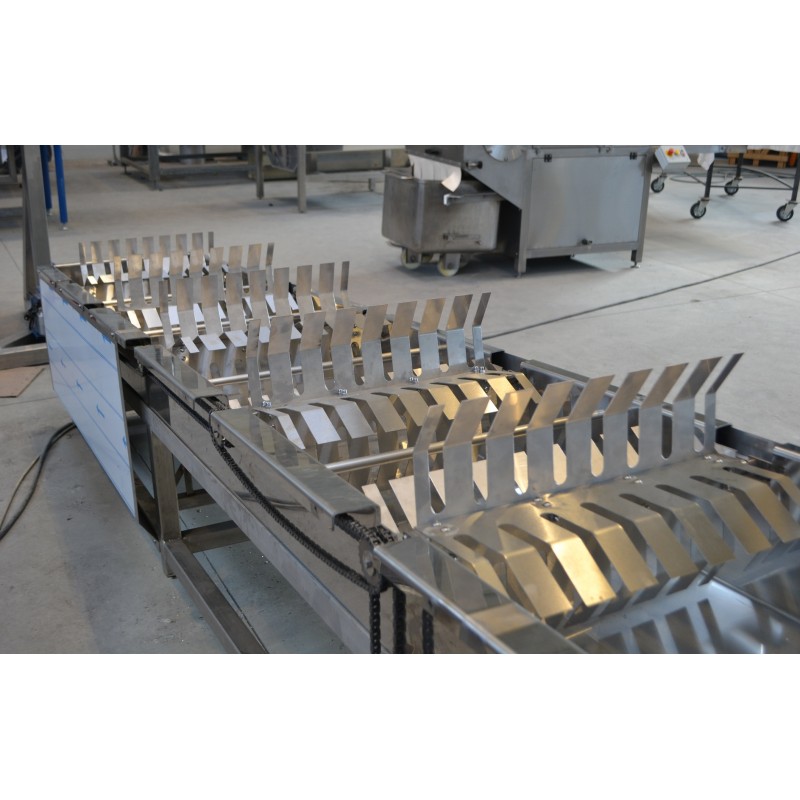

Continuous potato chip fryer with specially designed moving bladesfryer for chips

Moving milling blades are completely made of stainless steel and have a special design and profile, minimizing the buckling of the product. Each impeller has a reliable drive, the conveyor is self-propelled. Each row of blades can be individually and easily removed.

Stationary ventilation

An innovative solution for vapor and smoke removal through two fixed outlets at the start and end of the working section, allowing for stationary ventilation. Enhanced security hinges are easy to open, overlapping each other for visual control over the process.

Frying process - How the continuous fryer works

The product is fried in a way of full immersion in hot oil. The SnackPro series of fryers do not have a conveyor belt for sliding the product. The product is shifted due to the movement of the oil pumped by the pump as well as by means of blades that not only move the product to the loading zone but also gently mix for even heat treatment.

Benefits of frying with continuous paddle fryer for chipspaddle fryer for crackers

  • Accuracy of temperature maintenance - the product is evenly fried, the oil does not burn due to local overheating.
  • Simple operation and maintenance.
  • The double oil filtration system, which leads to a considerable increase in the serviceability of the oil and the increase in the quality of the fried products.
  • Minimum oil consumption in its class
  • Completely produced in the European Union

Technical features:



Model

SnackPro 1

Heating type

electric

Heating elements power, kW

90

Conveyor motor power, kW

0.24

Conveyor width, mm

600

Dimensions (LxWxH), mm

4790x930x1370

Weight, kg

615

Model

SnackPro 2

Fryer type

paddle, continuous

Heating type

electric

Heating elements power, kW

40

Blades power, kW

0.12

Conveyor power, kW

0.55

Work surface dimensions, mm

500x2000

Dimensions (LxWxH), mm

3700x1200x1200

Weight, kg

495
