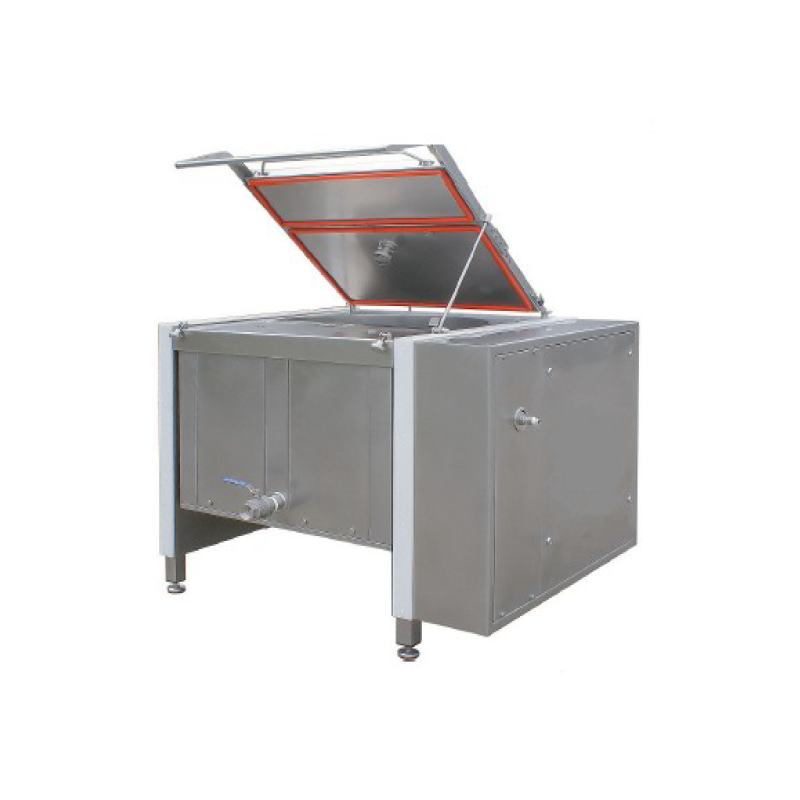

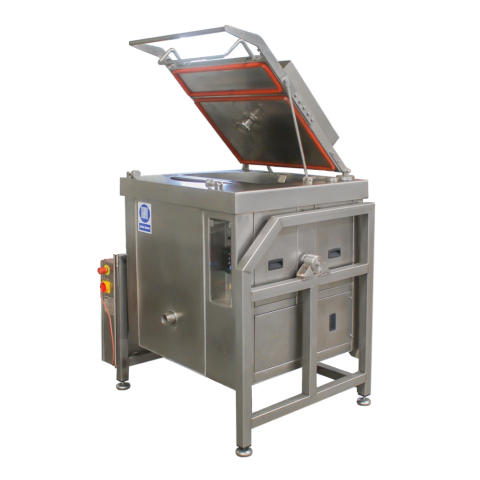

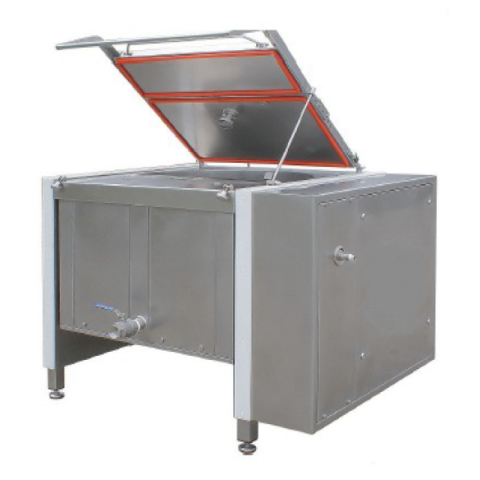

Tilting cooker with stirring 400 L
This is a 400 l capacity heating boiler, we offer different capacity commercial cooking boilers.
HEATING BOILER 400 L WITH A STIRRER AND TILTING
Specifications:
- tank made of stainless steel AISI304 2,5 mm, housing/flap etc. 1,5 mm,
- insulation: flap - polyurethane, side panels - glass wool
- water connection: 3/4''
- drain valve: 2''
- power supply: 3x400V/50Hz
- heating power: 25kW
- double heat jacket
- max. temperature: 145 C
- smooth speed control 0-10 rpm
- steering: time of work measurement, water, batch and heat jacket oil temperatures measurement, autostart

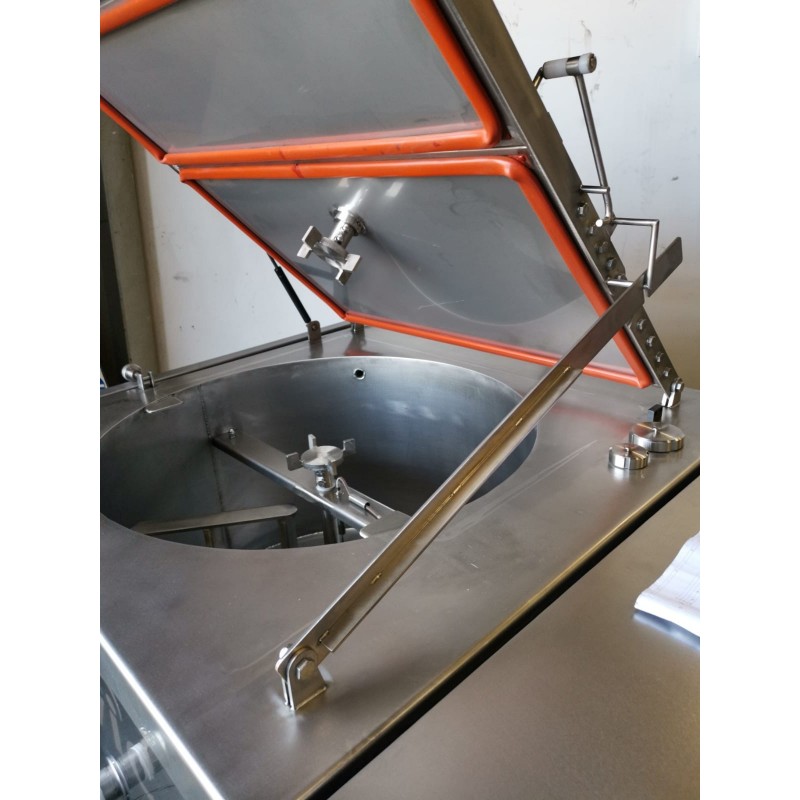

- hydraulic tilting mechanism, enables 100 degrees tilt

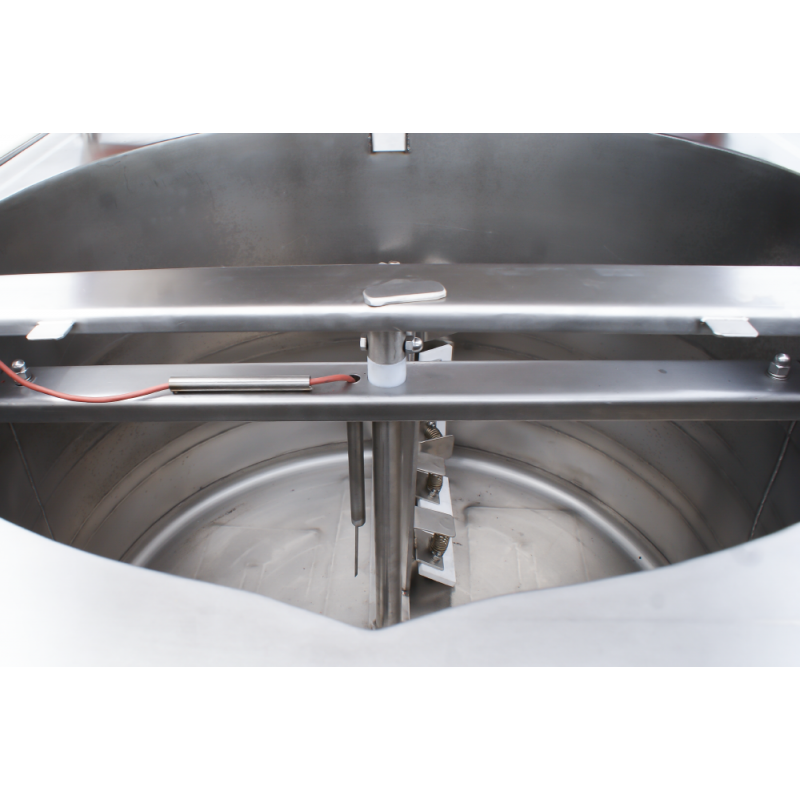

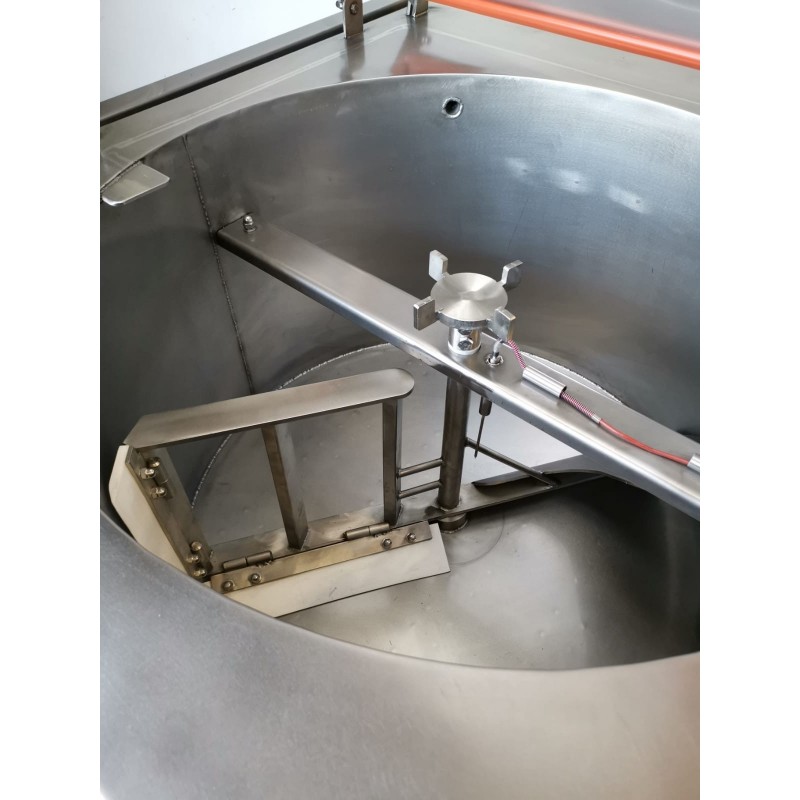

- stirrer: two arms, with scrapers on the side walls and bottom of tank, drive in top flap
- Heating: Electric
- Material: Stainless steel
- Heating power, kW: 25
- Principle of operation: Batch mode
- Type of the equipment: Individual machine
- Volume: 400l
- Voltage: 380-400V
