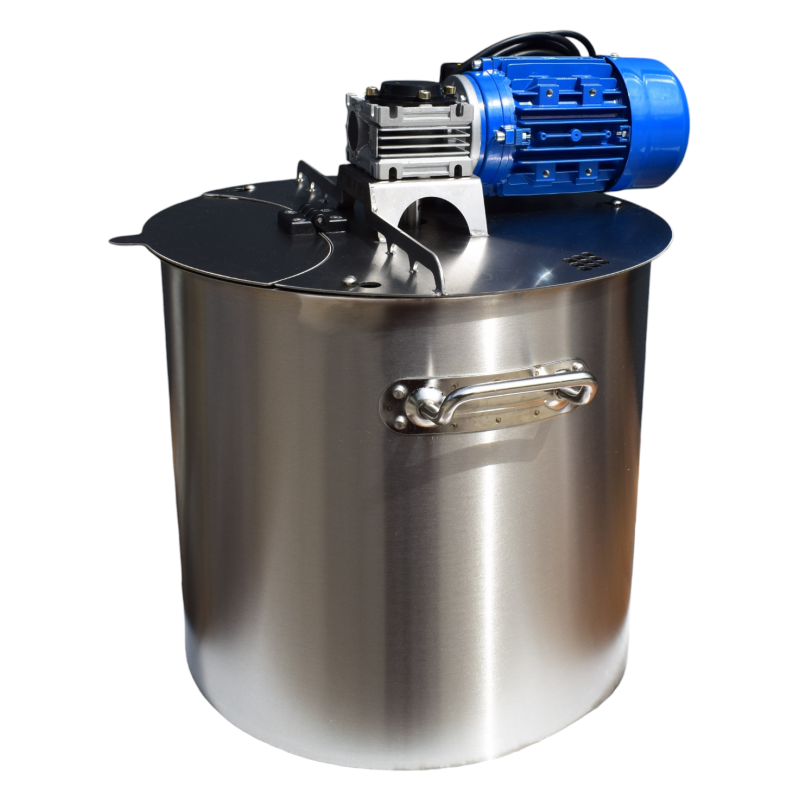

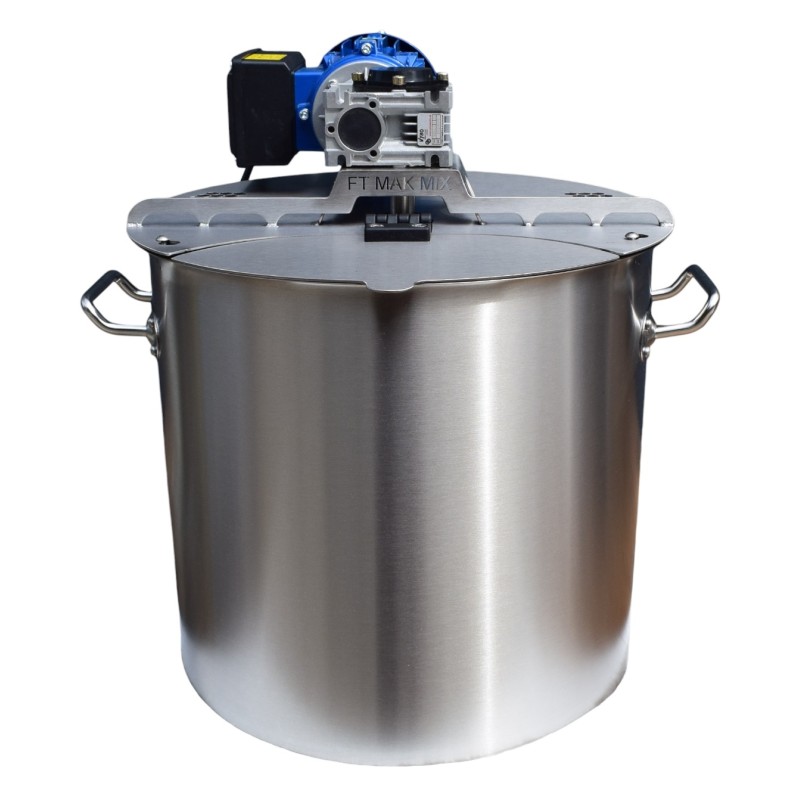

Cooking pot with a stirrer Economy
The Economy series of the cooking kettles comprise a thick-walled stainless steel container with an electric mixer mounted on the quick-release upper housing. The installation allows you to mix and stir products during processing. The thick bottom of the pot allows it to be installed on all types of heating surfaces (gas, induction or electric stove).
The Economy version is recommended for use with low-viscosity liquid products; If processing thick and viscous products is necessary, we offer the Premium version of the cooking kettle.
- Sandwich bottom (multilayer) for use on all types of hobs, including induction
- Quick release lid with an electric stirrer
- Safety grid under the upper hull hatch - safe handling when stirring
- Possibility of visual inspection through the safety grid during processing
- Safe loading of components even during mixing
The Economy version of the cooking pot with a stirring device can be used for a large number of technological processes: thermal processing of products with stirring, dissolving components to obtain solutions, mixing and stirring various components. Most often, cookers equipped with a mixing device are used for heating, boiling components, where constant stirring does not allow the product to burn to the bottom or walls of the container.
Economy version cooking kettles are the ideal solution for processing small volumes of products such as:
|
|
|
|
|
|
|
|
Advantages
- A special safety mesh installed under the unit hatch which allows for safe loading of the product with the mixing device turned on, as well as visual control during operation.
- Professional industrial gear motor
- Easily removable lid with a mixing device for convenient manipulation of the working container
- Possibility of installing scrapers (optional)
Basic version
It includes a working container with a three-layer bottom for the possibility of using induction or gas, a professional industrial gear motor, a special type of a mixing device at the bottom of the container and a safety grid for loading and visual control.
Options:
- Scrapers
- Exhaust ball valve
- Selecting the rotation speed of the mixing device depending on the gear motor (from 14.5-373 rpm)
- Electric stool 5 kW
- Gas hob
- Material: Stainless steel
- Engine power, kW: 0,12
- Volume: 20l/ 50l/ 100l/ 150l
- Voltage: 220-230V
