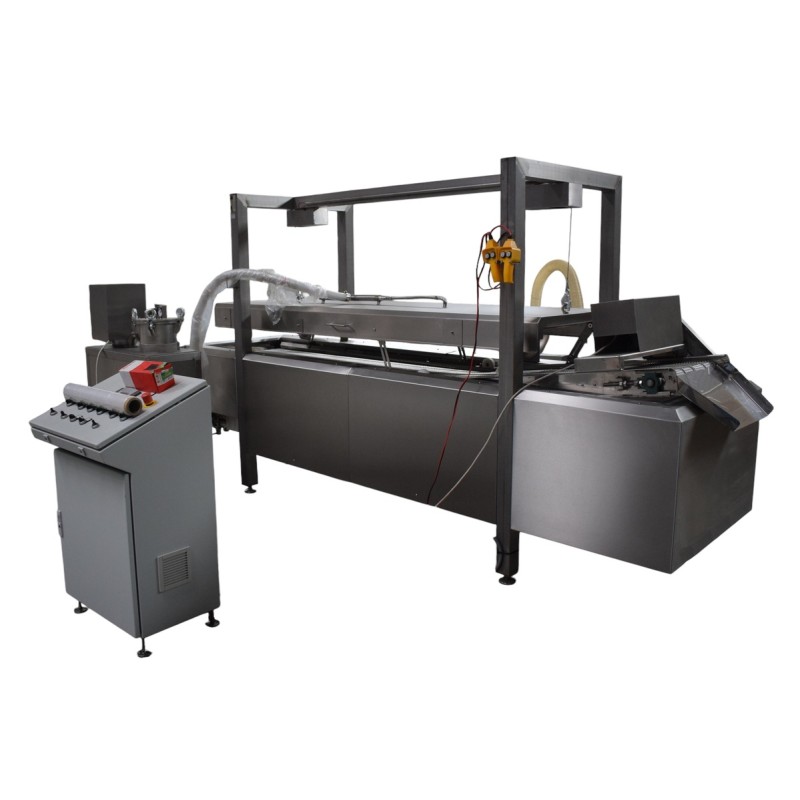

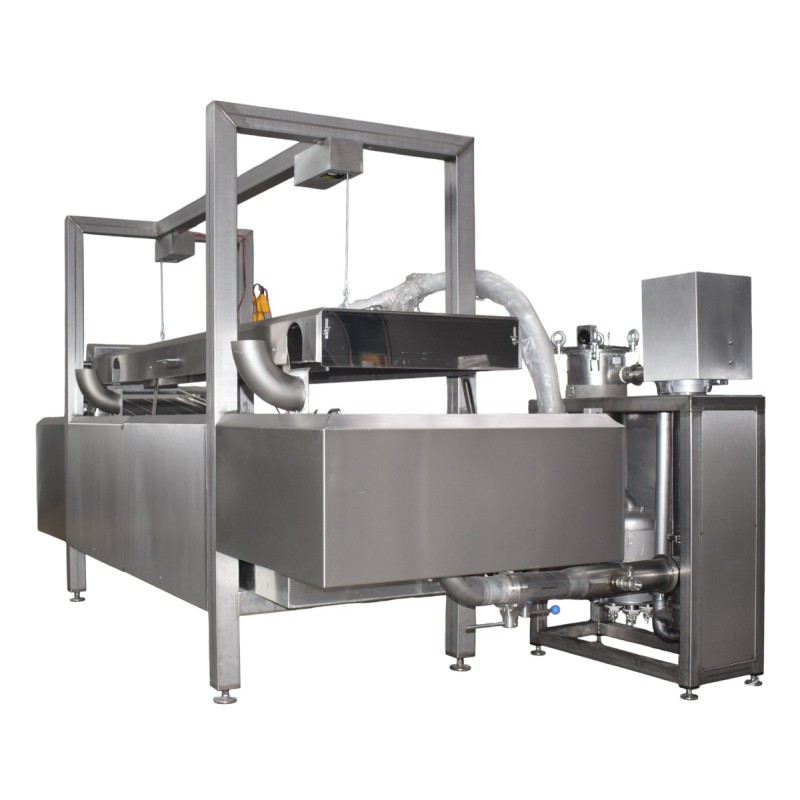

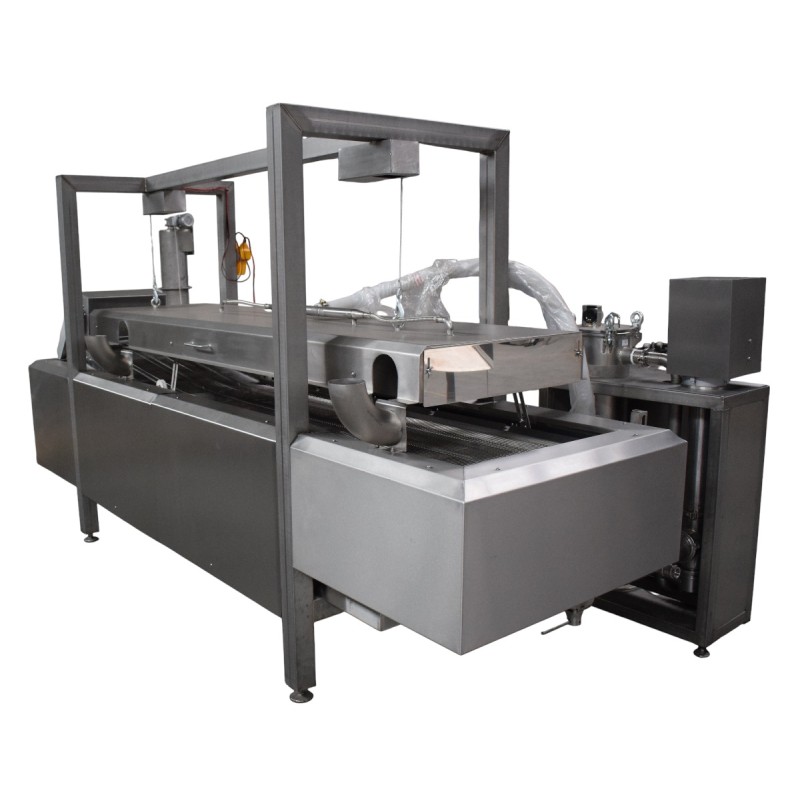

Continuous fryer Combifry 600 × 3500 mm
The Combifry continuous fryer is a professional industrial frying system designed for uniform thermal processing of food products using a conveyor-based transport system combined with active hot oil pouring / spraying system. The integrated conveyor ensures controlled product movement through the frying zone, while the oil spraying/pouring system provides even heat exposure from all sides.
- Combined conveyor frying and oil spraying ensures uniform frying on both sides of the product
- Quickly sealing surface pores of the product reduces oil absorption and improves final product quality
- Adjustable conveyor speed allows control of frying time and processing conditions
- Integrated oil circulation and filtration system for a prolonged oil life to reduce costs
- Continuous operation suitable for medium to high production volumes
The Combifry continuous fryer is designed for industrial food processing applications requiring consistent product quality and efficient throughput. It combines conveyor-based product transport with active oil distribution, ensuring uniform frying across the entire product surface.
Unlike static frying systems, the product moves continuously through the fryer on a stainless steel conveyor. At the same time, hot oil is actively distributed over the product surface through a spraying or pouring system. This dual-action frying method ensures uniform heat transfer, even for products with irregular shapes or larger thickness.
A key technological advantage of this system is the rapid sealing of the product surface. As the hot oil is applied from both below and above, the pores of the product close quickly, reducing excessive oil penetration and helping maintain the desired internal structure. It also allows the juices and flavors within the product to be retained, instead of escaping into the oil. This results in improved texture, reduced oil uptake, and more consistent product quality.
The fryer is equipped with a frequency controller to adjust the conveyor speed, allowing the operator to adjust processing time in the frying zone depending on the product type and desired final characteristics.
Suitable for processing products such as:
- Potato chips and slices
- French fries and formed potato products
- Breaded meat and poultry products
- Fish and seafood
- Snack products and extruded foods
- Vegetables and plant-based products
- Ready-to-eat and convenience foods
Advantages
- Uniform frying due to combined conveyor transport and active oil spraying from both sides
- Improved product quality through rapid surface sealing and reduced oil absorption
- Continuous operation enabling stable production and consistent batch-to-batch results
- Adjustable conveyor speed via frequency converter for precise control of frying time
- Efficient heat transfer ensuring stable frying conditions across the entire working width
- Integrated oil circulation and fine filtration system for maintaining oil quality
- Compact industrial design suitable for integration into existing production lines
- Stainless steel construction ensuring hygienic operation and a long service life
Basic version
The basic version includes a continuous stainless steel fryer with a conveyor system (600 × 3500 mm), integrated electric heating system, oil circulation pump, oil filtration system, and an active oil distribution system for spraying/pouring hot oil over the product. The unit is mounted on a supporting frame and equipped with a control system for adjusting conveyor speed and process parameters.
Operating principle
The product is fed onto the conveyor and transported through the frying section at a controlled speed. During movement, the product is immersed in hot oil while additional oil is continuously sprayed or poured over its surface.
This ensures uniform heat transfer and rapid formation of a surface layer, which limits excessive oil absorption. The oil is continuously circulated through the system and passes through a fine filtration unit, maintaining consistent frying conditions.
After passing through the frying zone, the product is discharged for further processing such as cooling, deoiling, or packaging.
Technical specifications
- Heating power: 42 kW (1 × 24 kW + 4 × 4.5 kW)
- Conveyor drive power: 0.12 kW
- Oil pump power: 2.2 kW
- Filter mesh size: 0.05 mm
- Conveyor dimensions (W × L): 600 × 3500 mm

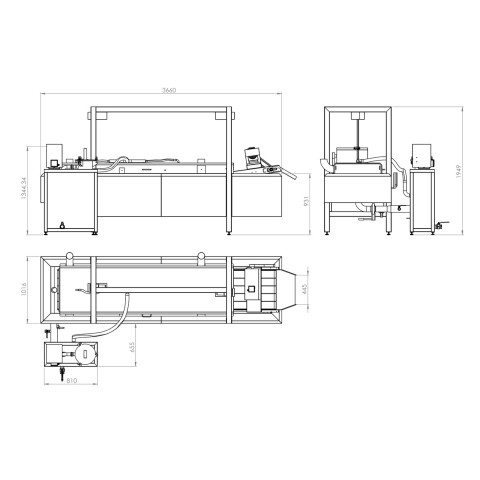

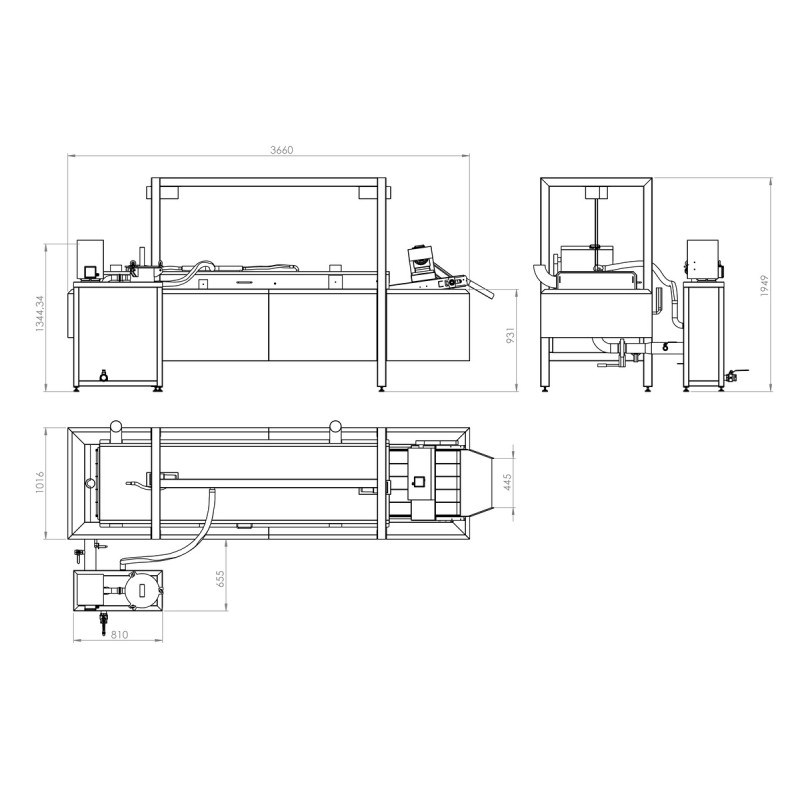

- Overall dimensions (H × L × W): 1949 × 3660 × 1671 mm
- Weight: 656 kg
- Material: AISI 304 stainless steel
- Voltage: 400 V
Additional options
- Cooling conveyor for post-frying stabilization
- By-pass oil filtration unit (extended configuration)
- Thermal insulation and external casing
- Custom conveyor configurations for specific products
- Automated control system
- Integration into continuous production lines
- Heating: Electric
- Material: Stainless steel
- Heating power, kW: 42
- Principle of operation: Continuous mode
- Conveyor dimensions (W × L): 600 × 3500 mm
